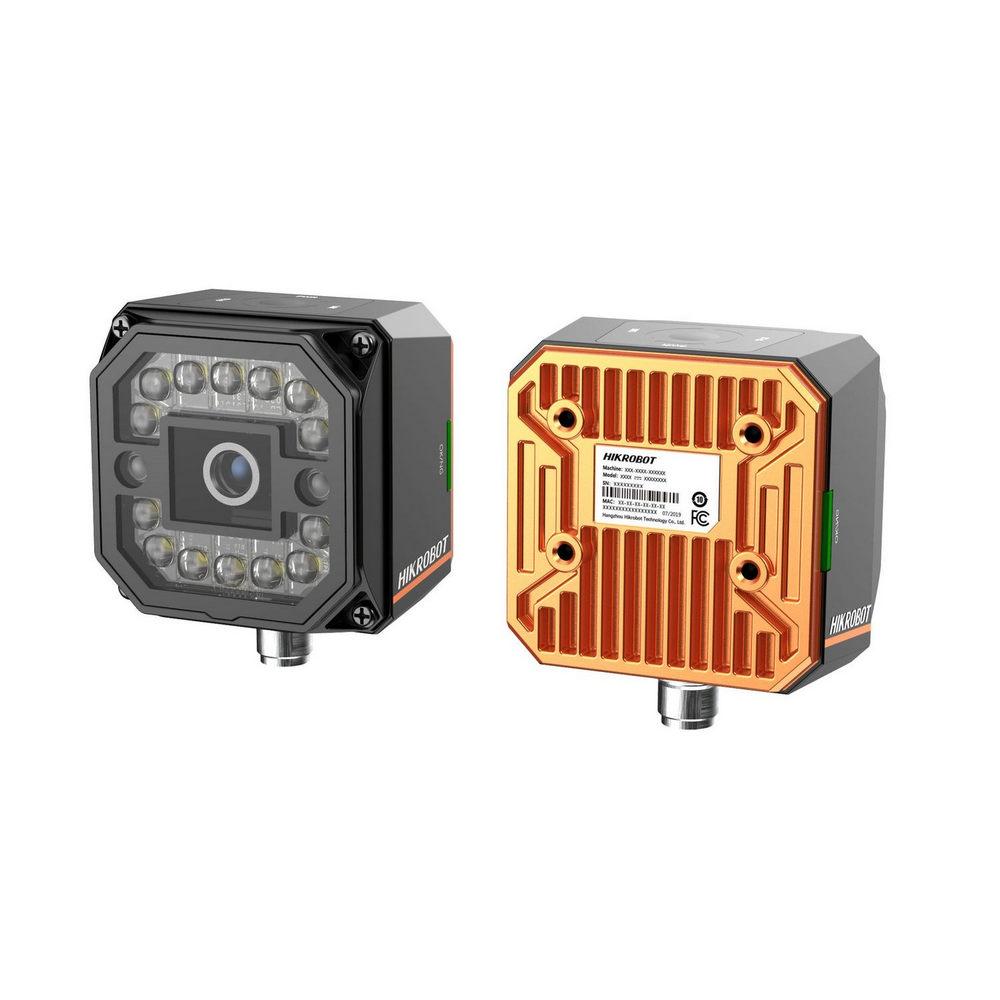

Name: HIKROBOT MV-SC3016C-12M-WBN :: Smart Machine-Vision камера, SC3000 Series, 1.6MPix (1408×1024), 12мм foc. length, 60 fps, цветна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вградена хардуерна платформа за високоскоростна обработка на изображения.
Използва вградени алгоритми за позициониране и измерване, за да открие съществуването, количеството, местоположението и др. на обекти в картината.
Множество IO интерфейси за входни и изходни сигнали.
Множество индикатори за показване на състоянието на устройството.
Използва светлинен източник, за да осигури равномерна яркост в осветената зона.
Поддържа множество комуникационни протоколи, включително Serial Port, TCP, UDP, FTP, Profinet, Modbus, etc.

Model	Product Model	MV-SC3016C-12M-WBN
Model	Type	SC3000 series vision sensor，12mm focal length，1.6MP，Color
Tool	Vision tool	Count: Pattern count, spot count, edge countDefect detection: Exception detectionExistence: Pattern existence, spot existence, edge existence, circle existence, line existenceLocation: Match location, match calibration, fixtureLogic tool: If module, condition judge, logic judge, combination judge, character comparison, calculatorMeasurement: Color size, L2L angle, diameter measurement, brightness average value, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurementRecognition: OCR, color contrast, code recognition, color recognition
	Solution capacity	Supports solution importing and exporting, up to 32 solutions and 40 modules can be stored.
	Communication protocol	Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP
Camera	Sensor type	CMOS, global shutter
	Pixel size	3.45 µm × 3.45 µm
	Sensor size	1/2.9"
	Resolution	1408 × 1024
	Max. frame rate	60 fps
	Dynamic range	71.4 dB
	SNR	41 dB
	Gain	0 dB to 15 dB
	Exposure time	16 μs to 1 sec
	Pixel format	RGB 8, Mono 8
	Mono/color	Color
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 connector provides power, Ethernet, digital I/O, and serial port: Input signal × 2 (Line 0/1), output signal × 3 (Line 5/6/7), bi-directional I/O × 3 (Line 2/3/4), and external button input × 1. Output signal can be set as NPN or PNP.
	Power supply	24 VDC
	Max. power consumption	Approx. 48 W@24 VDC
Mechanical	Lens mount	M12-mount, mechanical autofocus lens
	Focal length	12.4 mm (0.5")
	Lens cap	Transparent lens cap. Polarization or infrared filter lens cap is optional.
	Light source	White light by default. Red or blue is optional.
	Indicator	Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG)
	Dimension	65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9")
	Weight	Approx. 280 g (0.6 lb.)
	Ingress protection	IP67 (under proper installation of lens and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	SCMVS
General	Certification	CE, FCC, KC
