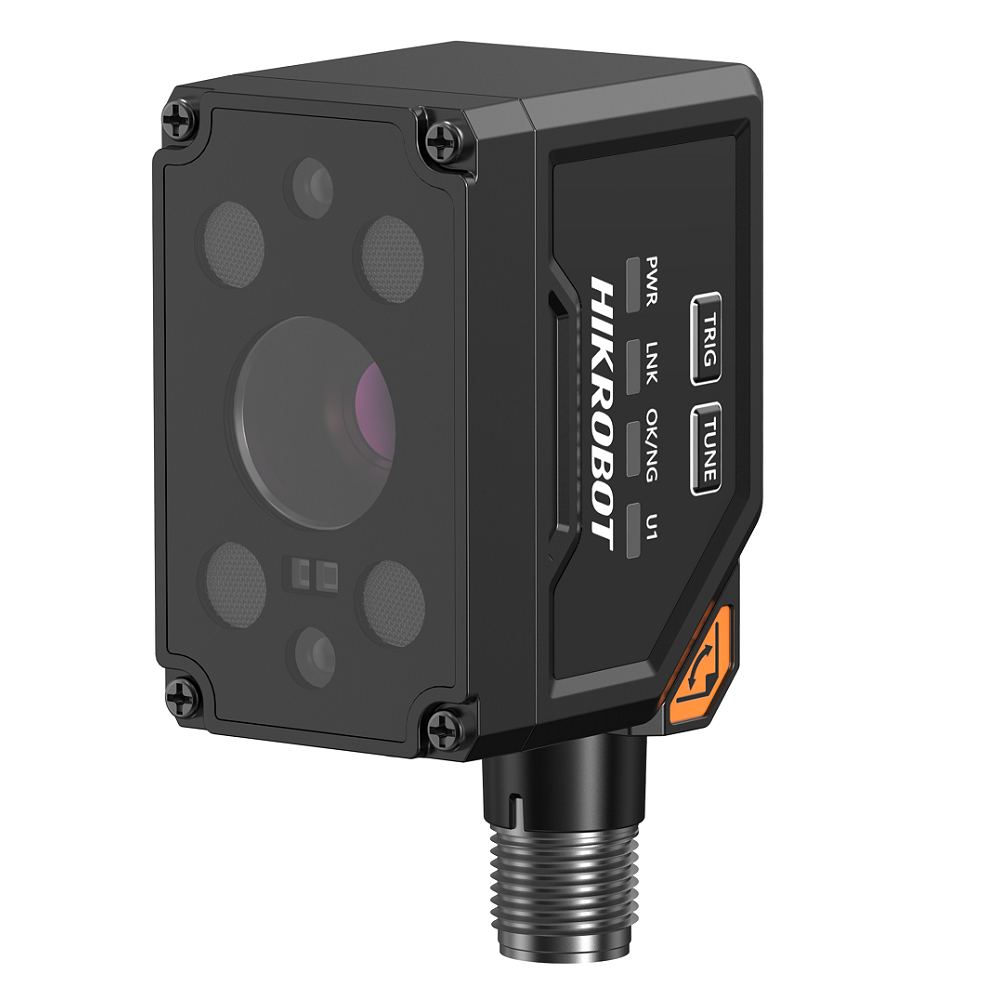

Name: HIKROBOT MV-SC2023XC-12M-WBN :: Smart Machine-Vision камера, SC2000X Series, 2.4MPix (1920×1280), 75 fps, 12мм foc. length, цветна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вградена хардуерна платформа за високоскоростна обработка на изображения.
Прилага вградени алгоритми за позициониране и измерване, за да открива съществуването на обекти, да преброява шарки и петна и др.
Множество IO интерфейси за входни и изходни сигнали.
Множество индикатори за показване на състоянието на устройството.
Използва светлинен източник, за да осигури равномерна яркост в осветената зона.
Поддържа множество комуникационни протоколи, включително Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP, etc.

Model	Product Model	MV-SC2023XC-12M-WBN
Model	Type	SC2000X series vision sensor，2.4MP，Color，12mm focal length
Tool	Vision tool	Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness analysis, L2L angle, color measurement, color size, diameter measurement, line angleExistence: Anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, line existenceCount: Spot count, edge count, contour count, pattern count, color countRecognition: Category recognition, code recognition, OCR, color contrast, color recognitionLogic: Calculator, if module, logic judge, condition judge, string comparison, combination judge, format outputDefect detection: Anomaly detectionLocation: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture
	Solution capacity	Supports solution importing and exporting, up to 16 solutions and 40 modules can be stored.
	Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Performance	Sensor type	CMOS, global shutter
	Pixel size	2.2 μm × 2.2 μm
	Sensor size	1/3.52"
	Resolution	1920 × 1280
	Max. frame rate	75 fps
	Gain	0 dB to 48 dB
	Exposure time	36 μs to 100 ms
	Pixel format	Mono 8, RGB 8
	Mono/color	Color
Electrical feature	Data interface	Fast Ethernet (100 Mbit/s)
	Digital I/O	17-pin M12 connector provides power and I/O, including isolated input (Line 0/1) × 2, isolated output (Line 2/3) × 2, RS-232 × 1Supports device triggering via pressing side button.
	Power supply	24 VDC
	Power consumption	Avg.: 5 W @ 24 VDC (light source enabled)Max.: 12 W @ 24 VDC (light source enabled)
Mechanical	Lens mount	M12-mount, mechanical autofocus supported
	Focal length	12 mm
	Lens cap	Transparent lens cap by default. Half-polarized and fully-polarized caps are optional.
	Light source	White light by default. Red, blue, IR, UV, and two-color (red/blue) lights are optional.
	Aiming system	2 green LED lights
	Indicator	Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1)
	Dimension	Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6")Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4")
	Weight	118 g (0.3 lb.)
	Ingress protection	IP65
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
	Vibration resistance	Meets standard IEC 60068-2-6:2007.Bare device withstands 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
	Shock resistance	Meets standard IEC 60068-2-27:2008.Bare device withstands 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
General	Client software	SCMVS
General	Certification	CE, KC
