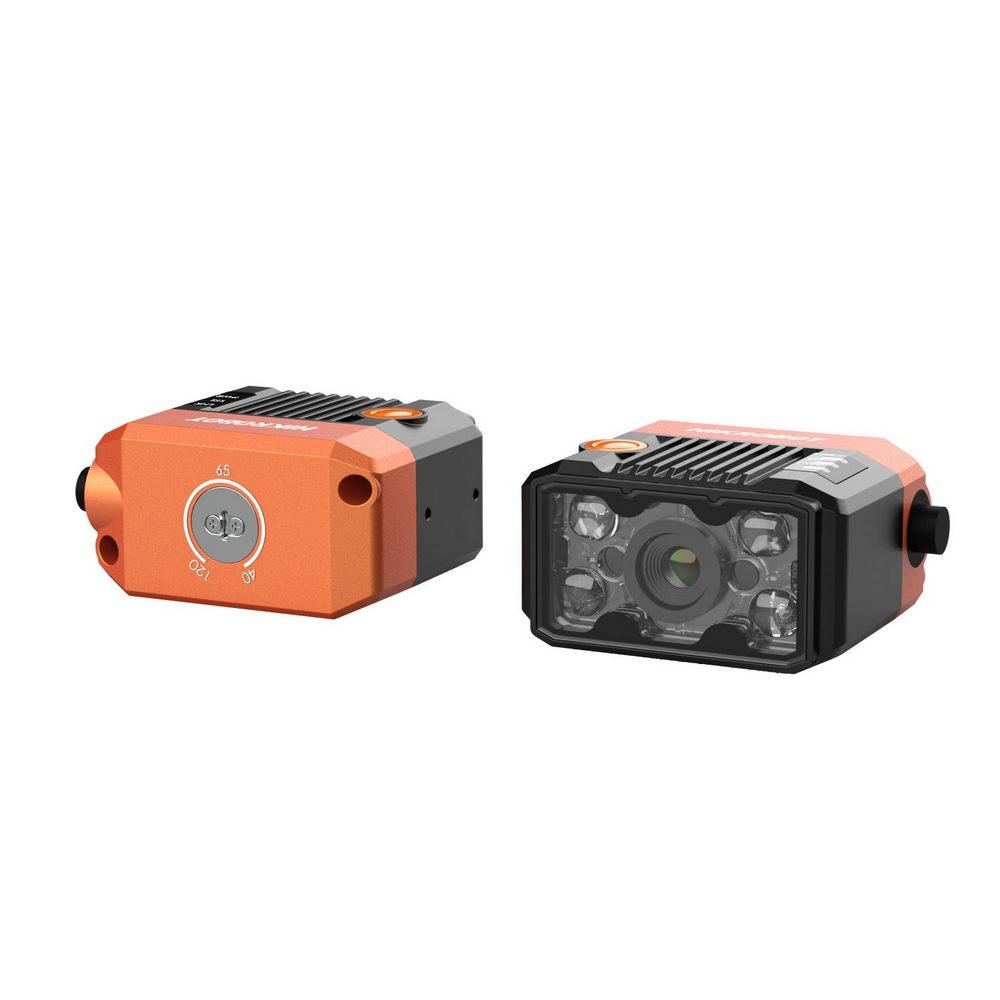

Name: HIKROBOT MV-SC2016EM-06S-WBN-Mini :: Smart Machine-Vision камера, SC2000E Series, 1.6MPix (1408×1024), 60 fps, 6мм foc. length, mini vision sensor, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вградена хардуерна платформа за високоскоростна обработка на изображения.
Прилага вградени алгоритми за позициониране и измерване, за да открива съществуването на обекти, да преброява шарки и петна и др.
Множество IO интерфейси за входни и изходни сигнали.
Множество индикатори за показване на състоянието на устройството.
Използва светлинен източник, за да осигури равномерна яркост в осветената зона.
Поддържа множество комуникационни протоколи, включително Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP, etc.

Model	Product Model	MV-SC2016EM-06S-WBN-Mini
Model	Type	SC2000E series mini vision sensor，6mm focal length，1.6MP，Mono
Tool	Vision tool	Count: Pattern count, edge count, and spot countExistence: Circle existence, line existence, spot existence, edge existence, and pattern existenceLocation: FixtureLogic tool: Condition judge, character comparison, logic judge, and calculatorMeasurement: L2L angle, diameter measurement, brightness average value, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, and edge width measurementRecognition: OCR, and classification registration
	Solution capacity	Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored.
	Communication protocol	Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP
Camera	Sensor type	CMOS, global shutter
	Pixel size	3.45 µm × 3.45 µm
	Sensor size	1/2.9"
	Resolution	1408 × 1024
	Max. frame rate	60 fps
	Dynamic range	71.4 dB
	SNR	41 dB
	Gain	0 dB to 15 dB
	Exposure time	16 μs to 1 sec
	Pixel format	Mono 8
	Mono/color	Mono
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 connector provides power, Ethernet, serial port, and digital I/O, including configurable I/O × 4 (Line 0/1/2/3). Device trigger via pressing button supported. Output signals support NPN only.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	Approx. 7.5 W@12 VDC
Mechanical	Lens mount	M10-mount, adjusting focus manually supported
	Focal length	6 mm (0.2")
	Lens cap	Transparent lens cap.
	Light source	White LED lamp × 4
	Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS).
	Dimension	46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
	Weight	Approx. 160 g (0.35 lb.)
	Ingress protection	IP65 (under proper installation of lens and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	SCMVS
General	Certification	CE, KC
