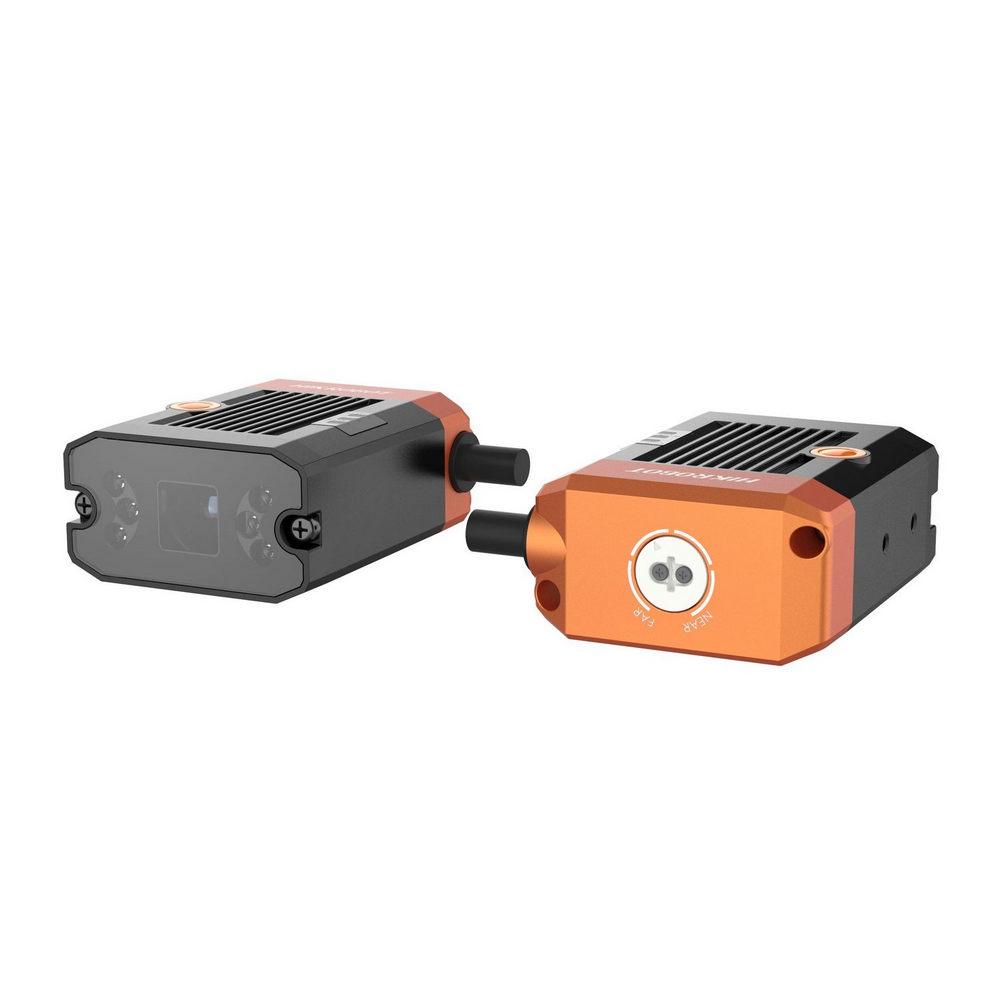

Name: HIKROBOT MV-SC2016EC-15S-WBN :: Smart Machine-Vision камера, SC2000E Series, 1.6MPix (1408×1024), 12мм foc. length, 60 fps, цветна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вградена хардуерна платформа за високоскоростна обработка на изображения.
Прилага вградени алгоритми за позициониране и измерване, за да открива съществуването на обекти, да преброява шарки и петна и др.
Множество IO интерфейси за входни и изходни сигнали.
Множество индикатори за показване на състоянието на устройството.
Използва светлинен източник, за да осигури равномерна яркост в осветената зона.
Поддържа множество комуникационни протоколи, включително Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP, etc.

Model	Product Model	MV-SC2016EC-15S-WBN
Model	Type	SC2000E series vision sensor，15mm focal length，1.6MP，Color
Tool	Vision tool	Count: Pattern count, edge count, and spot countExistence: Circle existence, line existence, spot existence, edge existence, and pattern existenceLocation: FixtureLogic tool: Condition judge, character comparison, logic judge, and calculatorMeasurement: L2L angle, diameter measurement, brightness average value, contrast measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurement, and color sizeRecognition: OCR, color contrast, and classification registration
	Solution capacity	Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored.
	Communication protocol	Serial Port, TCP, UDP, FTP, Profinet, Modbus, Ethernet/IP
Camera	Sensor type	CMOS, global shutter
	Pixel size	3.45 µm × 3.45 µm
	Sensor size	1/2.9"
	Resolution	1408 × 1024
	Max. frame rate	60 fps
	Dynamic range	71.4 dB
	SNR	41 dB
	Gain	0 dB to 15 dB
	Exposure time	16 μs to 1 sec
	Pixel format	Mono 8, RGB 8
	Mono/color	Color
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 connector provides power, Ethernet, serial port, digital I/O, including configurable I/O × 2 (Line 0/1), input signal × 1 (Line 2), output signal × 1 (Line 3), and RS-232× 1.Device trigger via pressing button supported.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	Approx. 22 W@24 VDC
Mechanical	Lens mount	M12-mount, adjusting focus manually supported
	Focal length	14.8 mm (0.6")
	Lens cap	Transparent lens cap
	Light source	White LED lamp
	Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS).
	Dimension	46 mm × 57.6 mm × 25 mm (1.8" × 2.3" × 1.0")
	Weight	Approx. 220 g (0.5 lb.)
	Ingress protection	IP65 (under proper installation of lens and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	SCMVS
General	Certification	CE, FCC, KC
