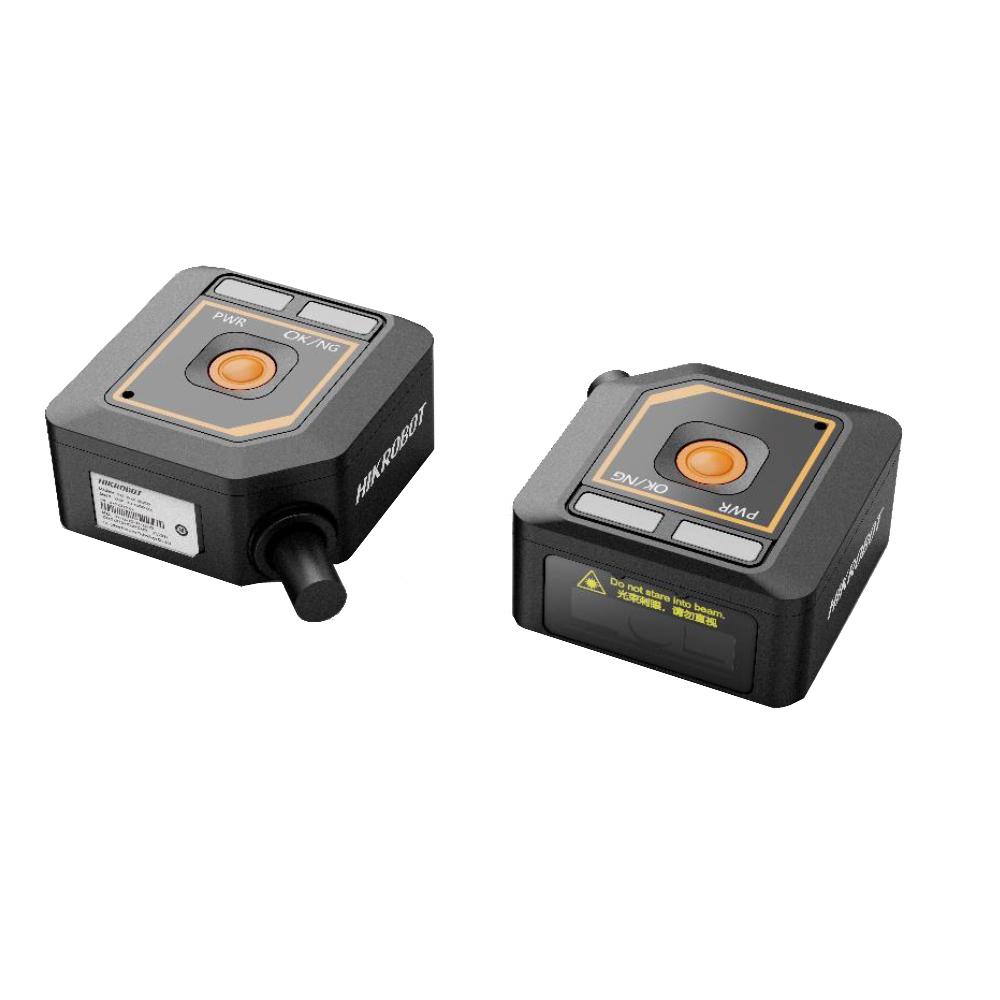

Name: HIKROBOT MV-SC1008M-03S-WBN-SR :: Smart Machine-Vision камера, SC1000 Series, 0.8MPix (768×1024), 15 fps, 4.9мм foc. length, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вградена хардуерна платформа за високоскоростна обработка на изображения.
Компактен дизайн, подходяща за всички видове машини и компактни работни станции.
Вградена хардуерна платформа за високоскоростна обработка на изображения.
Вградени алгоритми за позициониране и измерване, за откриване на наличие, количество, местоположение и др. на всякакви обекти.
Вграден лазер, за ясно field-of-view.
Множество индикатори за показване на състоянието на устройството.
Поддържа множество комуникационни протоколи, включително Modbus, EtherNet/IP, Profinet, FTP, UDP, TCP и сериен порт.

Model	Product Model	MV-SC1008M-03S-WBN-SR / MV-SC1008M-03S-WBN-NR
Model	Type	SC1000 series vision sensor, 0.8MP, Mono
Tool	Vision tool	Count: Spot count, edge count, pattern count;Existence: Circle existence, line existence, spot existence, edge existence, contour existence;Location: Position fixture;Logic tool: Condition judge, logic judge, combination judge, calculator;Measurement: L2L angle, diameter measurement, brightness analysis, contrast, measurement, width measurement, P2L measurement, greyscale size, line angle, edge width measurement;Recognition: Classification registration
	Solution capacity	Supports solution importing and exporting, and up to 8 solutions and 40 modules can be stored.
	Communication protocol	Modbus, EtherNet/IP, Profinet, FTP, UDP, TCP client, TCP server, Serial Port, MELSEC/SLMP, FINS, Keyence KV
Camera	Sensor type	CMOS, global shutter
	Pixel size	2.7 µm × 2.7 µm
	Sensor size	1/4"
	Resolution	768 x 1024
	Max. frame rate	15 fps
	Dynamic range	66 dB
	SNR	40 dB
	Gain	0 dB to 15 dB
	Exposure time	60 μs to 7000 μs
	Pixel format	Mono 8
	Mono/color	Mono
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	Green terminal provides power, digital I/O, and serial port, including input signal × 1 (IN0), output signal × 1 (OUT0), and RS-232 × 1. Supports triggering device via pressing top trigger button.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	Approx. 3 W@12VDC
Mechanical	Lens mount	M5 mount
	Focal length	4.9mm
	Working distance	MV-SC1008M-03S-WBN-SR: 240 mmMV-SC1008M-03S-WBN-NR: 120 mm
	Lens cap	Transparent lens cap
	Light source	White LED lamp
	Indicator	Power indicator (PWR), result indicator (OK/NG)
	Dimension	38 mm × 38 mm × 19 mm (1.5" × 1.5" × 0.7")
	Weight	Approx. 40 g (0.09 lb.)
	Ingress protection	IP54
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	SCMVS
General	Certification	CE, KC
