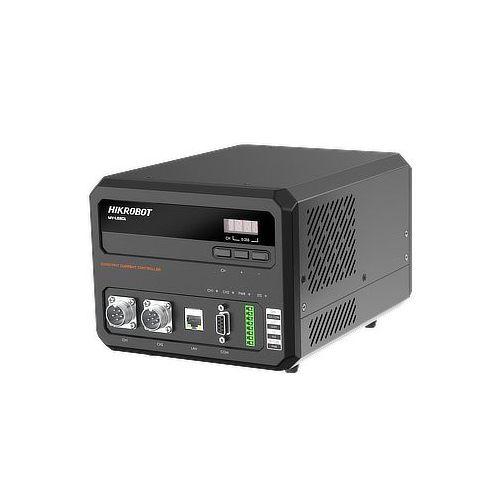

Name: HIKROBOT MV-LE201-200W48-2TD :: Light контролер, цифров, constant voltage, Input: 24VDC, Output: 48W/24VDC, канали: 2, DB9F
Brand: HIKROBOT
Availability: OutOfStock

Описание

Използва постоянен ток за по-голяма стабилност на източника с максимална изходна мощност 750 W
Използва бутони и дисплей за бързи операции
Поддържа настройка и управление чрез сериен порт или мрежов интерфейс
Поддържа външен тригер интерфейс за различни режими на осветление
Защита от претоварване и късо съединение

Model	Product Model	MV-LE201-200W48-2TD
Model	Type	Digital Light Controller，2 channel，200W/48V
Performance	Drive mode	Digital, constant current
	Lighting mode	Continued, trigger
	Channel	2-channel
	Dimming mode	Control panel (via pressing button), software (serial port or network interface)
	Brightness level	0 to 255
	Lighting response time	< 10 μs
	Trigger mode	External trigger and internal trigger
	Communication protocol	UDP, Serial
	Applicable product	Line-scan lighting
Electrical feature	Input voltage	100 VAC to 240 VAC, 50 Hz/60 Hz
	Input current	1.8 A (115 VAC), 1 A (230 VAC)
	Output voltage	48 VDC
	Output current	Max. 4 A
	Output power	Max. 200 W
	Output current for each channel	Max. 4 A
	Trigger in	High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
	Trigger out	High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical	Power supply interface	C13 220 VAC interface
	Console interface	RJ45 network interface, DB9F serial port
	Digital I/O	Opto-isolated input × 2, opto-isolated output × 2
	Lighting output connector	19M-8H (pin type)
	Dimension	257.3 mm × 180 mm × 150.8 mm (10.1" ×7.1" × 5.9")
	Shell material	Plastic + SECC
	Weight	2070 g (4.6 lb.)
	Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
	Humidity	20% to 85% RH, non-condensing
	Ingress protection	IP30
	Cooling mode	Fan cooling
General	Certification	CE, KC
