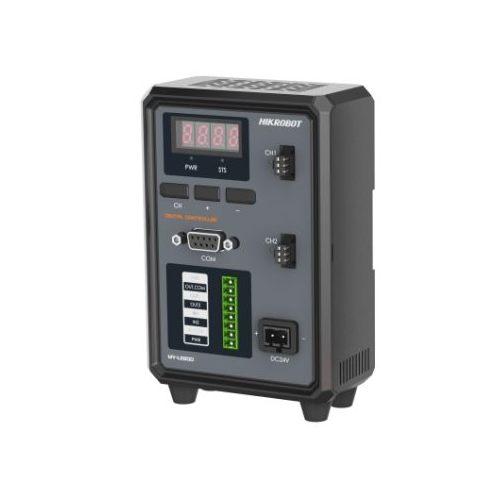

Name: HIKROBOT MV-LE201-10W5-2D :: Light контролер, цифров, constant current, Input: 220VAC, Output: 750W/48VDC, канали: 2, RJ45, DB9F
Brand: HIKROBOT
Availability: OutOfStock

Описание

Използва постоянен ток за по-голяма стабилност на източника с максимална изходна мощност 750 W
Използва бутони и дисплей за бързи операции
Поддържа настройка и управление чрез сериен порт или мрежов интерфейс
Поддържа външен тригер интерфейс за различни режими на осветление
Защита от претоварване и късо съединение

Model	Product Model	MV-LE201-10W5-2D
Model	Type	light controller for dot-type lighting
Performance	Drive mode	Digital, constant current
	Lighting mode	Continued, trigger
	Channel	2-channel
	Dimming mode	Control panel (via pressing button), software (serial port)
	Brightness level	0 to 255
	Lighting response time	< 10 μs
	Trigger mode	External trigger and internal trigger
	Communication protocol	Serial
	Applicable product	Spot lighting
Electrical feature	Input voltage	24 VDC
	Input current	0.5 A (24 VDC)
	Output voltage	5 VDC
	Output current	Max. 2 A
	Output power	Max. 10 W
	Output current for each channel	Max. 1 A
	Trigger in	High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
	Trigger out	High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical	Power supply interface	24 VDC terminal block
	Console interface	DB9F serial port
	Digital I/O	Opto-isolated input × 2, opto-isolated output × 2
	Lighting output connector	SMR-03V-BC (hole type);SMR-03V-BC
	Dimension	139.5 mm × 90 mm × 54.1 mm (5.5" × 3.5" × 2.1")
	Shell material	Plastic
	Weight	240 g (0.5 lb.)
	Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
	Humidity	20% to 85% RH, non-condensing
	Ingress protection	IP30
	Cooling mode	Natural cooling
General	Certification	CE, KC
