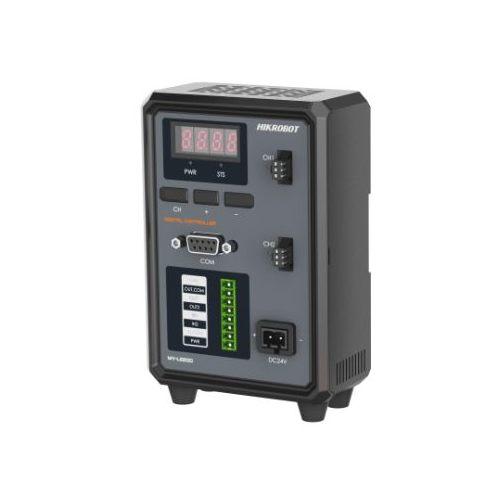

Name: HIKROBOT MV-LE200-48W24-2D :: Light контролер, цифров, constant current, Input: 24VDC, Output: 10W/5VDC, канали: 2, DB9F
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа различни режими за управление на осветлението - чрез контролен панел или софтуер
Поддържа настройка и управление чрез сериен порт или мрежов интерфейс
Осигурява многоканални входове и изходи
Поддържа монтаж чрез плъзгаща шина или винтов отвор
Защита от претоварване и късо съединение

Model	Product Model	MV-LE200-48W24-2D
Model	Type	Digital Light Controller，2 channel，48W/24V
Performance	Drive mode	Digital, constant voltage
	Lighting mode	Continued, trigger
	PWM frequency	125 kHz
	Flash output	Not supported
	Channel	2-channel
	Dimming mode	Control panel (via pressing button), software (serial port)
	Brightness level	0 to 255
	Lighting response time	< 10 μs
	Trigger mode	External trigger and internal trigger
	Communication protocol	Serial
	Applicable product	Ring lighting, bar lighting, flat lighting, coaxial lighting, etc.
Electrical feature	Input voltage	24 VDC
	Input current	2.5 A
	Output voltage	24 VDC
	Output current	Max. 2A
	Output power	Max. 48 W
	Output current for each channel	Max. 2A
	Trigger in	High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
	Trigger out	High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical	Power supply interface	5.08 mm × 2 terminal block
	Console interface	DB9F serial port
	Digital I/O	Opto-isolated input × 2, opto-isolated output × 2
	Lighting output connector	SMR-03V-BC
	Dimension	90 mm × 54.1 mm × 139.5 mm (3.5" × 2.1" × 5.5")
	Shell material	Plastic
	Weight	Approx. 188 g (0.4 lb.)
	Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
	Humidity	20% to 85% RH, non-condensing
	Ingress protection	IP30
	Cooling mode	Natural cooling
General	Certification	CE, KC
