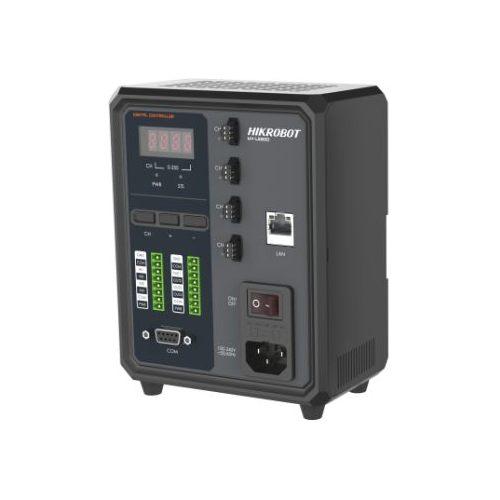

Name: HIKROBOT MV-LE200-200W24-4TD :: Light контролер, аналогов, constant voltage, Input: 220VAC, Output: 120W/24VDC, канали: 4, DB9F
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа различни режими за управление на осветлението - чрез контролен панел или софтуер
Поддържа настройка и управление чрез сериен порт или мрежов интерфейс
Осигурява многоканални входове и изходи
Поддържа монтаж чрез плъзгаща шина или винтов отвор
Защита от претоварване и късо съединение

Model	Product Model	MV-LE200-200W24-4TD
Model	Type	Digital Light Controller，4 channel，200W/24V
Performance	Drive mode	Digital, constant voltage
	Lighting mode	Continued, trigger
	PWM frequency	125 kHz
	Flash output	Not supported
	Channel	4-channel
	Dimming mode	Control panel (via pressing button), software (serial port or network interface)
	Brightness level	0 to 255
	Lighting response time	< 10 μs
	Trigger mode	External trigger and internal trigger
	Communication protocol	UDP, Serial
	Applicable product	Ring lighting, bar lighting, flat lighting, coaxial lighting, etc.
Electrical feature	Input voltage	100 VAC to 240 VAC, 50 Hz/60 Hz
	Input current	1.8 A (115 VAC), 1A (230 VAC)
	Output voltage	24 VDC
	Output current	Max. 8.3 A
	Output power	Max. 200 W
	Output current for each channel	Max. 3 A
	Trigger in	High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC
	Trigger out	High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC
Mechanical	Power supply interface	C13 220 VAC interface
	Console interface	RJ45 network interface, DB9F serial port
	Digital I/O	Opto-isolated input × 4, opto-isolated output × 4
	Lighting output connector	SMR-03V-BC
	Dimension	130 mm × 83.8 mm × 169.5 mm (5.1" × 3.3" × 6.7")
	Shell material	Plastic
	Weight	Approx. 733 g (1.6 lb.)
	Temperature	Working temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
	Humidity	20% to 85% RH, non-condensing
	Ingress protection	IP30
	Cooling mode	Fan cooling
General	Certification	CE, KC
