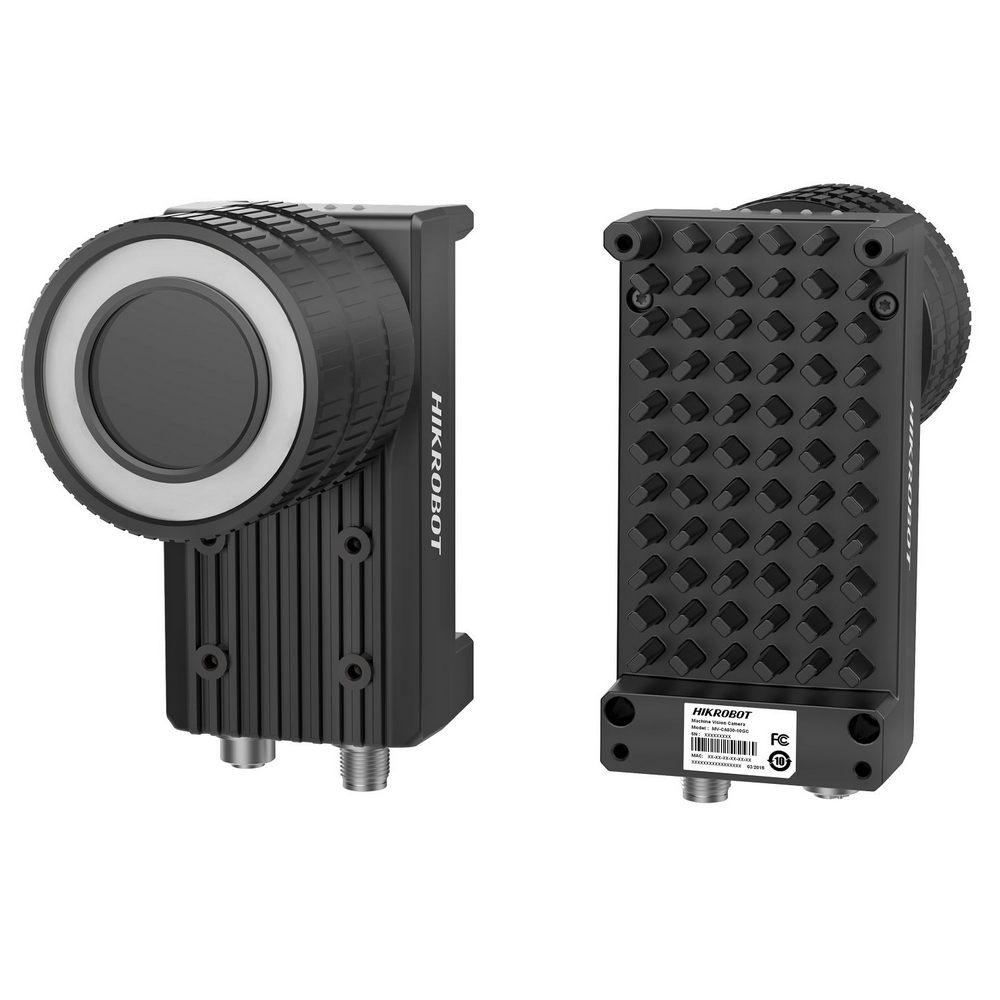

Name: HIKROBOT MV-ID6200M-00C-NNG :: Logistics Code Reader, ID6000 Series, 20 fps, 20MPix (5440×3648), 60 codes/sec, C-Mount, Gigabit, No light
Brand: HIKROBOT
Availability: OutOfStock

Описание

Осигурява резолюция 20 MP за обхващане на по-голямо зрително поле
Използва deep-learning алгоритъм с висока ефективност за разпознаване на различни кодове с лошо качество на печат
Поддържа разпознаване на множество кодове в зрителното поле
Поддържа гигабитов Ethernet за предаване на изображения
Поддържа мрежова връзка на множество устройства via code reading platform
Защита от проникване IP67

Model	Product Model	MV-ID6200M-00C-NNG
Model	Type	20MP Logisitc Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 128, Code 93, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 142-dimensional codes: QR Code, Data Matrix
	Max. frame rate	20 fps
	Max. reading speed	60 codes/sec
	Sensor type	CMOS, rolling shutter
	Pixel size	2.4 µm × 2.4 µm
	Sensor size	1"
	Resolution	5440 × 3648
	Exposure time	16 μs to 0.5 sec
	Gain	0 dB to 40 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP
Electrical feature	Data interface	GigE
	Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	12 W@24 VDC
Mechanical	Lens mount	C-mount
	Light source	Not included
	Lens cap	Included
	Dimension	126 mm × 66 mm × 113.2 mm (5.0" × 2.6" × 4.5")
	Weight	Approx. 750 g (1.7 lb.)
	Ingress protection	IP67 ( under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, RoHS
