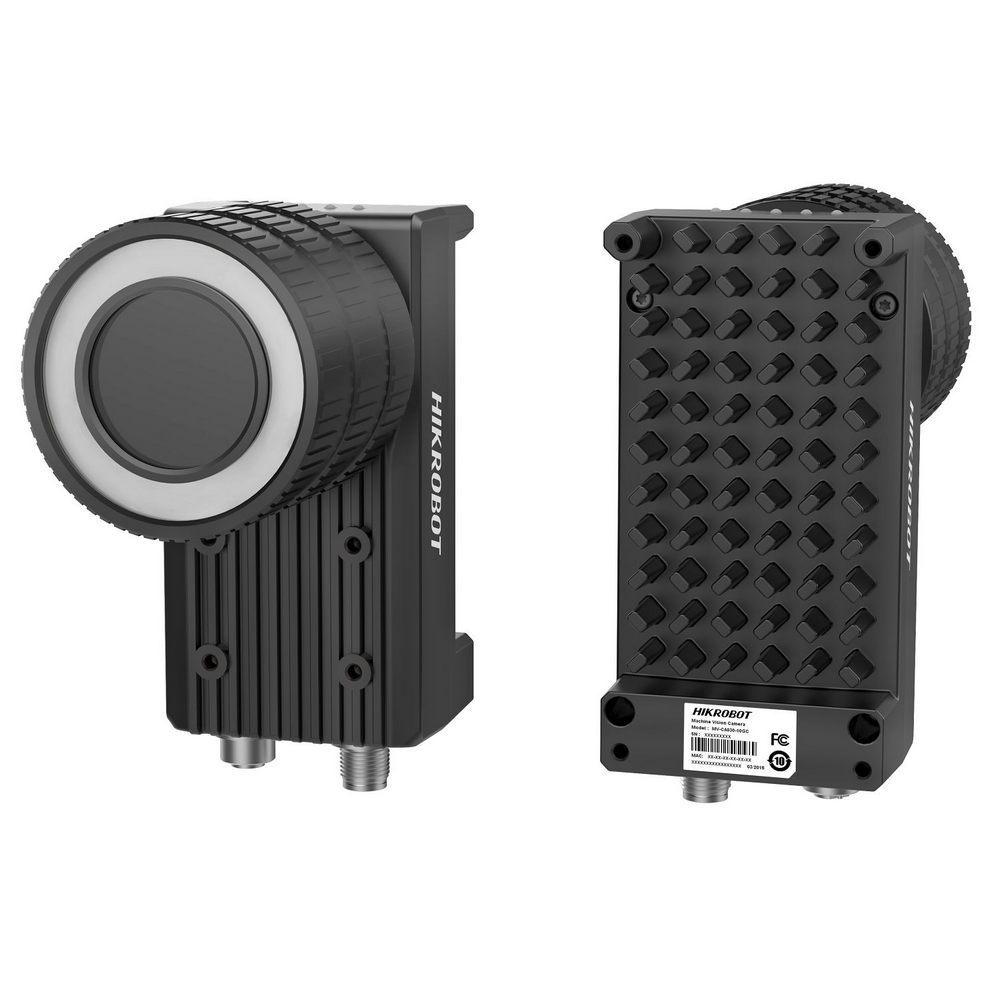

Name: HIKROBOT MV-ID6120PM-00C-NNG :: Logistics Code Reader, ID6000 Series, 12MPix (4096×3072), 38 fps, 84 codes/sec, C-Mount, Gigabit, No light
Brand: HIKROBOT
Availability: OutOfStock

Описание

12 MP сензор за висококачествени изображения
Гъвкав монтаж и удобна настройка
Поддържа непрекъснато четене на различни кодове без прекъсване
Поддържа разпознаване на различни кодове с лошо качество на печат
Поддържа мрежова връзка на множество устройства
Защита от проникване IP67

Model	Product Model	MV-ID6120PM-00C-NNG
Model	Type	12MP Logisitc Code Reader
Performance	Symbologies	1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE2D codes: QR Code, Data Matrix
	Max. frame rate	28 fps
	Max. reading speed	84 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	3.2 μm × 3.2 μm
	Sensor size	1"
	Resolution	4096 × 3072
	Exposure time	16 μs to 1 sec
	Gain	0 dB to 40 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP
Electrical feature	Data interface	GigE
	Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1
	Power supply	12 VDC to 24 VDC
	Max. power consumption	12 W@24 VDC
Mechanical	Lens mount	C-mount
	Light source	Not included
	Lens cap	Included
	Dimension	126 mm × 66 mm ×113.2 mm (5.0" × 2.6" × 4.5")
	Weight	Approx. 750 g (1.7 lb.)
	Ingress protection	IP67 ( under proper installation of waterproof lens cap)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, without condensation
General	Client software	IDMVS
General	Certification	CE, RoHS
