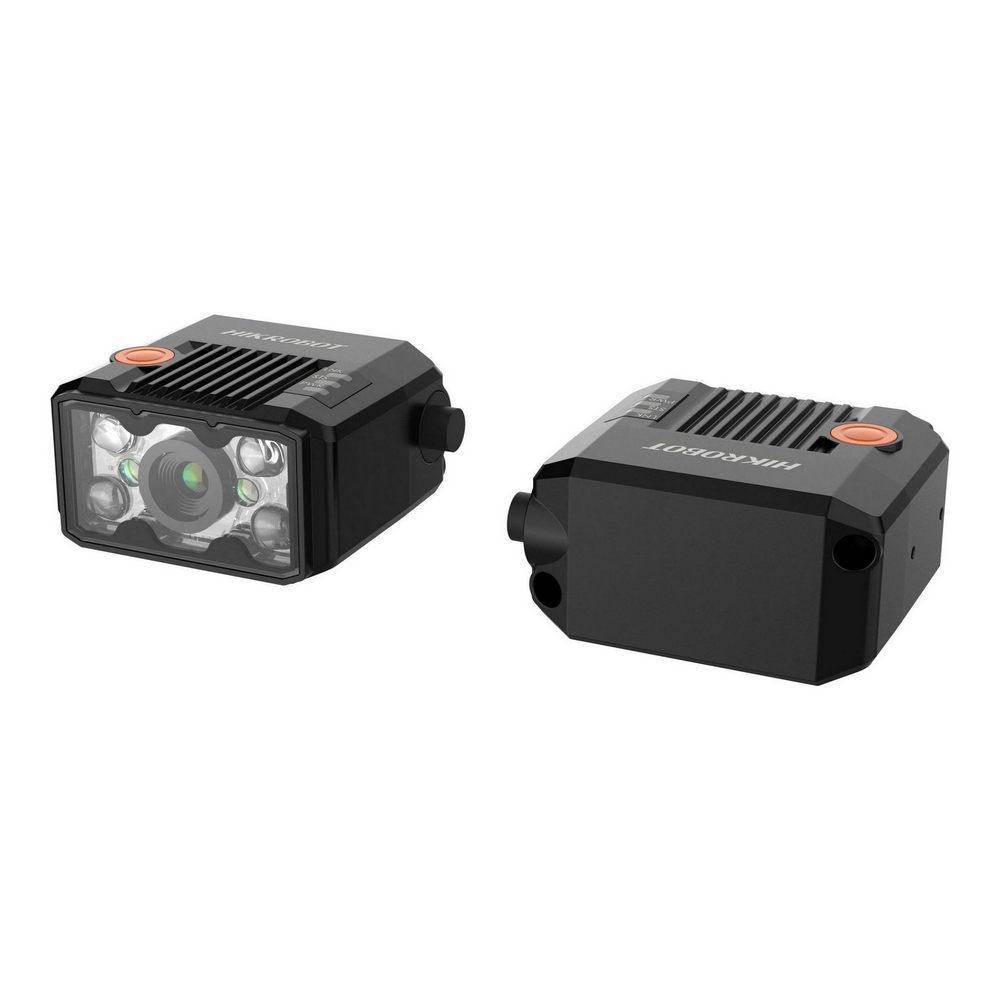

Name: HIKROBOT MV-ID2016M-16T-RBN :: Smart Code Reader, ID2000 Series, 1.6MPix (1408×1024), 16мм, 45 codes/sec, 60 fps, Fast Ethernet, червен цвят
Brand: HIKROBOT
Availability: OutOfStock

Описание

Поддържа високоскоростна настройка на фокуса за смяна на работното разстояние
Компактен дизайн и малки размери, подходящ за тесни пространства
Използва LED светлина за прицелване към обекти
Използва множество IO интерфейси и захранващ интерфейс за лесно окабеляване
Поддържа множество комуникационни протоколи, включително TCP, Serial, FTP и др.

Model	Product Model	MV-ID2016M-16T-RBN
Model	Type	1.6MP Ultra-Compact Industrial Code Reader
Performance	Symbologies	1D codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE2D codes: QR Code, Data Matrix
	Max. frame rate	60 fps
	Max. reading speed	45 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	3.45 µm × 3.45 µm
	Sensor size	1/2.9"
	Resolution	1408 × 1024
	Exposure time	16 μs to 2.5 sec
	Gain	0 dB to 40 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, UDP, Fins, SLMP
Optics	Focal length	16 mm
	Working distance	100 mm to 400 mm
	Ambient illumination	0 lux to 50000 lux
	Light source	Red color
	Aiming system	Orange LED
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 connector provides power and I/O, including configurable bi-directional none-isolated I/O × 2 (Line 0/1), none-isolated input (Line 2) × 1, none-isolated output (Line 3) × 1, and RS-232 × 1. Device trigger via pressing trigger button supported.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	Approx. 11 W@12 VDC
Mechanical	Lens mount	M12-mount
	Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS).
	Dimension	46 mm × 40 mm × 25 mm (1.81" × 1.57" × 0.98")
	Weight	Approx. 135 g (0.30 lb.)
	Ingress protection	IP65
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, RoHS, KC
