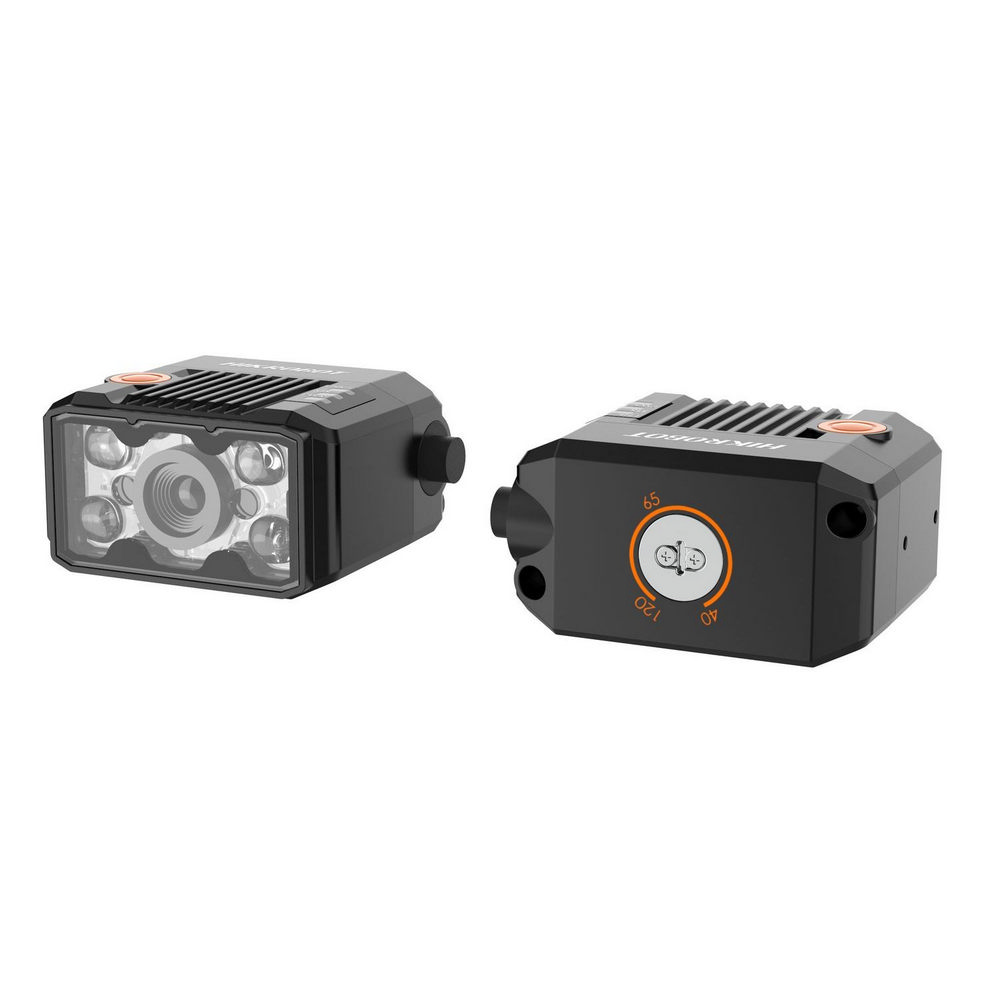

Name: HIKROBOT MV-ID2013M-06S-RBN-YAG :: Smart Code Reader, ID2000 Series, 1.3MPix (1280×1024), 45 codes/sec, 60 fps, 6мм, Fast Ethernet, червена светлина
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вграден deep-learning алгоритъм за разчитане на кодове с висока надеждност
Компактен дизайн и малки размери
Използва авиационен конектор за еднокабелно свързване
Използва LED светлина за прицелване към кодове
Фокусиращо копче за ръчна настройка на фокуса
Използва множество IO интерфейси и захранващ интерфейс
Поддържа множество комуникационни протоколи, включително TCP, Serial, FTP, Profinet и др.

Model	Product Model	MV-ID2013M-06S-RBN-YAG
Model	Type	YAG 1.3MP Ultra-Compact Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE2-dimensional codes: QR Code, Data Matrix
	Max. frame rate	60 fps
	Max. reading speed	45 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	4 μm × 4 μm
	Sensor size	1/2.7"
	Resolution	1280 × 1024
	Exposure time	35 μs to 1 sec
	Gain	0 dB to 15 dB
	Mono	Mono
	Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, UDP, Fins
Electrical feature	Data interface	Fast Ethernet (100 Mbit/s)
	Digital I/O	17-pin M12 connector provides power and I/O, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), bi-directional non-isolated I/O × 2 (Line 0/1), and RS-232 × 1Device trigger via pressing button on side supported.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	Approx. 10.6 W @ 24 VDC
Mechanical	Focal length	6.72 mm
	Lens mount	M10-mount, adjusting focus manually supported
	Working distance	40 mm to 120 mm
	Ambient illumination	0 lux to 50000 lux
	Light source	Red
	Aiming system	Green LED
	Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS)
	Dimension	46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
	Weight	Approx. 160 g (0.4 lb.)
	Ingress protection	IP65
	Humidity	20% RH to 95% RH (no condensation)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
General	Client software	IDMVS
General	Certification	CE, RoHS, KC
