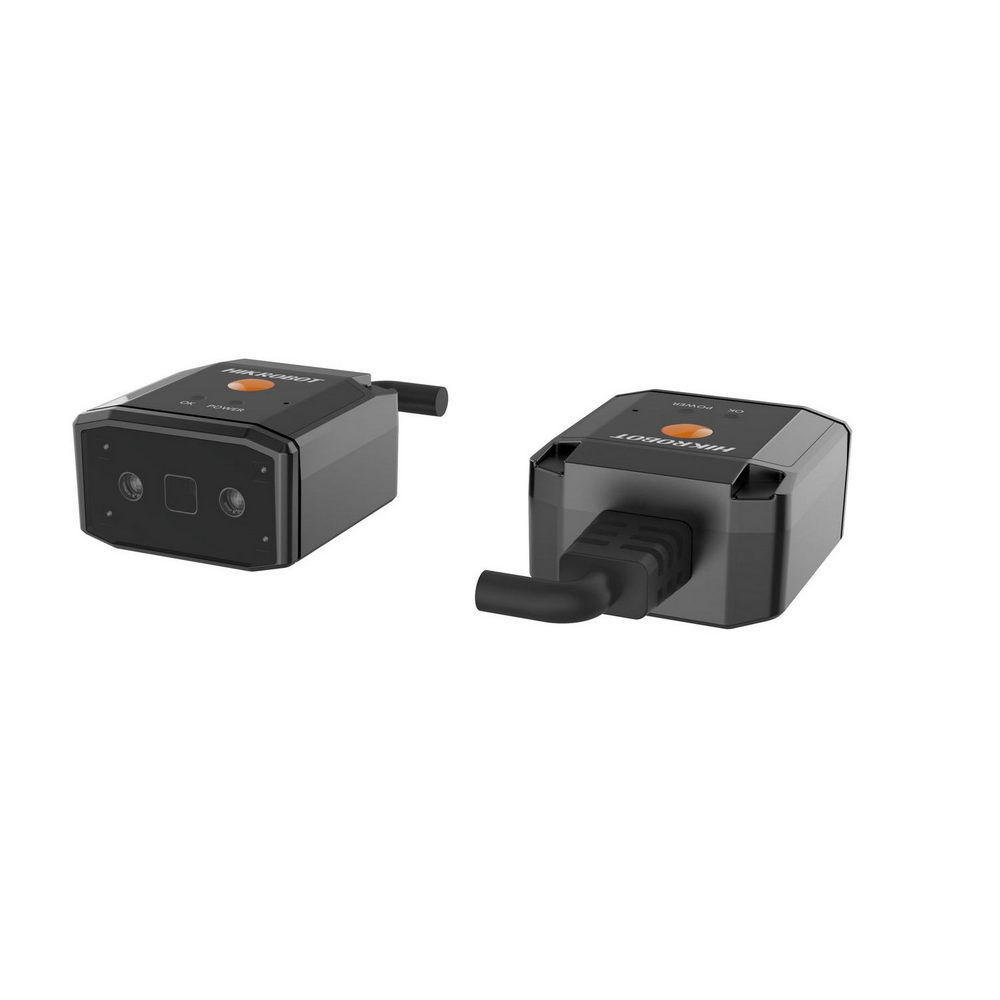

Name: HIKROBOT MV-ID2013EM-05N-RBP :: Smart Code Reader, ID2000 Series, 1.3MPix (1280×1024), 30 codes/sec, 50 fps, 4.7мм, Fast Ethernet, червена светлина
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вграден deep-learning алгоритъм за разчитане на кодове с висока надеждност
Компактен дизайн и малки размери
Използва множество IO интерфейси и захранващ интерфейс
Използва LED светлина за прицелване към кодове
Използва зумер и индикатор за показване състоянието на устройството
Поддържа one-click настройване на параметри за удобно управление

Model	Product Model	MV-ID2013EM-05N-RBP
Model	Type	5mm Near Focus length 1.3MP Ultra-Compact Industrial Code Reader
Performance	Symbologies	1D codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE2D codes: QR Code, Data Matrix
	Max. frame rate	50 fps
	Max. reading speed	30 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	2.7 μm × 2.7 μm
	Sensor size	1/4"
	Resolution	1280 × 1024
	Exposure time	60 μs to 0.6 sec
	Gain	1 dB to 28 dB
	Mono/color	Mono
	Communication protocol	Network interface: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IPUSB interface: SmartSDK, USB (HID, CDC)
	Depth of field	Code 39 (3 mil): 45 mm to 90 mmCode 39 (5 mil): 35 mm to 105 mmEAN 13 (13 mil): 50 mm to 125 mmData Matrix (5 mil): 40 mm to 80 mmData Matrix (10 mil): 25 mm to 125 mmCode 128 (10 mil): 40 mm to 140 mmQR Code (10 mil): 30 mm to 120 mm
Electrical feature	Data interface	Network interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminalUSB interface: USB 2.0
	Digital I/O	Network interface: DB15 connector provides power and I/O, including non-isolated input × 2 (Line 0/1), non-isolated output × 2 (Line 2/3), RS-232 × 1.USB interface: DB15 connector provides data transmission.Supports device triggering via pressing button on side.
	Power supply	Network interface: 12 VDC to 24 VDCUSB interface: 5 VDC (USB 2.0 provides power supply)
	Max. power consumption	Network interface: 2.5 W @ 12 VDCUSB interface: 2.5 W @ 5 VDC
Mechanical	Focal length	4.7 mm
	Lens mount	M5.8-mount
	Ambient illumination	0 lux to 10000 lux
	Light source	Red (polarized)
	Aiming system	Green LED
	Indicator	Power indicator (POWER), status indicator (OK/NG)
	Dimension	45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0")
	Weight	Approx. 68.5 g (0.2 lb.)
	Ingress protection	IP54
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	IDMVS
General	Certification	CE, RoHS, KC
