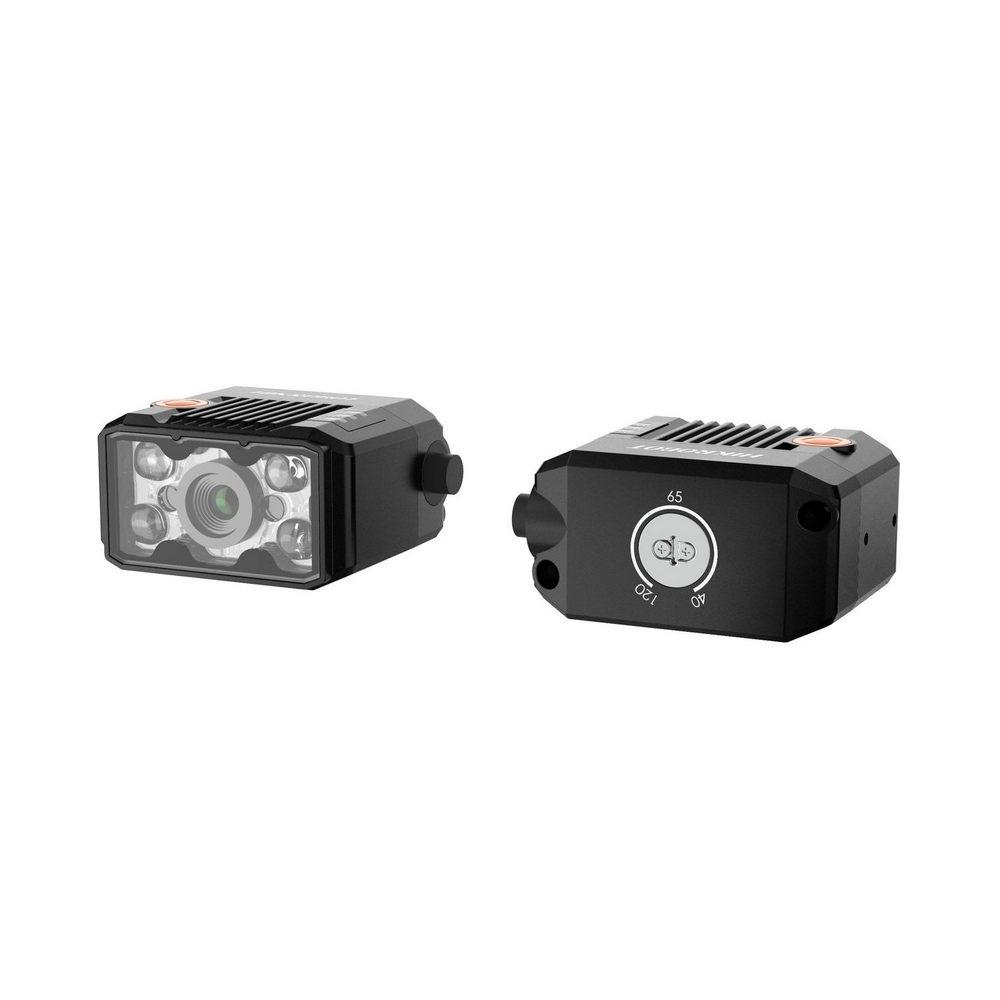

Name: HIKROBOT MV-ID2004M-06S-RBN :: Smart Code Reader, ID2000 Series, 0.4MPix (704×540), 12V, 40W, 41 codes/sec, 60 fps, 6мм, Fast Ethernet, червен цвят LED
Brand: HIKROBOT
Availability: OutOfStock

Описание

Вграден deep-learning алгоритъм за разчитане на кодове с висока надеждност
Компактен дизайн и малки размери
Използва авиационен конектор за еднокабелно свързване
Използва LED светлина за прицелване към кодове
Фокусиращо копче за ръчна настройка на фокуса
Използва множество IO интерфейси и захранващ интерфейс
Поддържа множество комуникационни протоколи, включително TCP, Serial, FTP, Profinet и др.

Model	Product Model	MV-ID2004M-06S-RBN
Model	Type	6mm focal length 0.4MP Ultra-Compact Industrial Code Reader
Performance	Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE2-dimensional codes: QR Code, Data Matrix
	Max. frame rate	60 fps
	Max. reading speed	41 codes/sec
	Sensor type	CMOS, global shutter
	Pixel size	6.9 µm × 6.9 µm
	Sensor size	1/2.9"
	Resolution	704 × 540
	Exposure time	16 μs to 1 sec
	Gain	0 dB to 15 dB
	Mono/color	Mono
	Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, UDP, Fins, SLMP
Optics	Focal length	6 mm (0.2")
	Working distance	40 mm to 120 mm (1.6" to 4.7"), adjusting focus manually supported
	Ambient illumination	0 lux to 50000 lux
	Light source	Red LED
	Aiming system	Green LED
Electrical feature	Data interface	Fast Ethernet
	Digital I/O	17-pin M12 connector provides power and I/O, including configurable bi-directional none-isolated I/O × 4: input (Line 0/1) and output (Line 2/3) by default, RS-232 × 1. Device trigger via pressing button on side supported.
	Power supply	12 VDC to 24 VDC
	Max. power consumption	Approx. 10.6 W@24 VDC
Mechanical	Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS).
	Dimension	46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
	Weight	Approx. 160 g (0.35 lb.)
	Ingress protection	IP65
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	IDMVS
General	Certification	CE, RoHS
