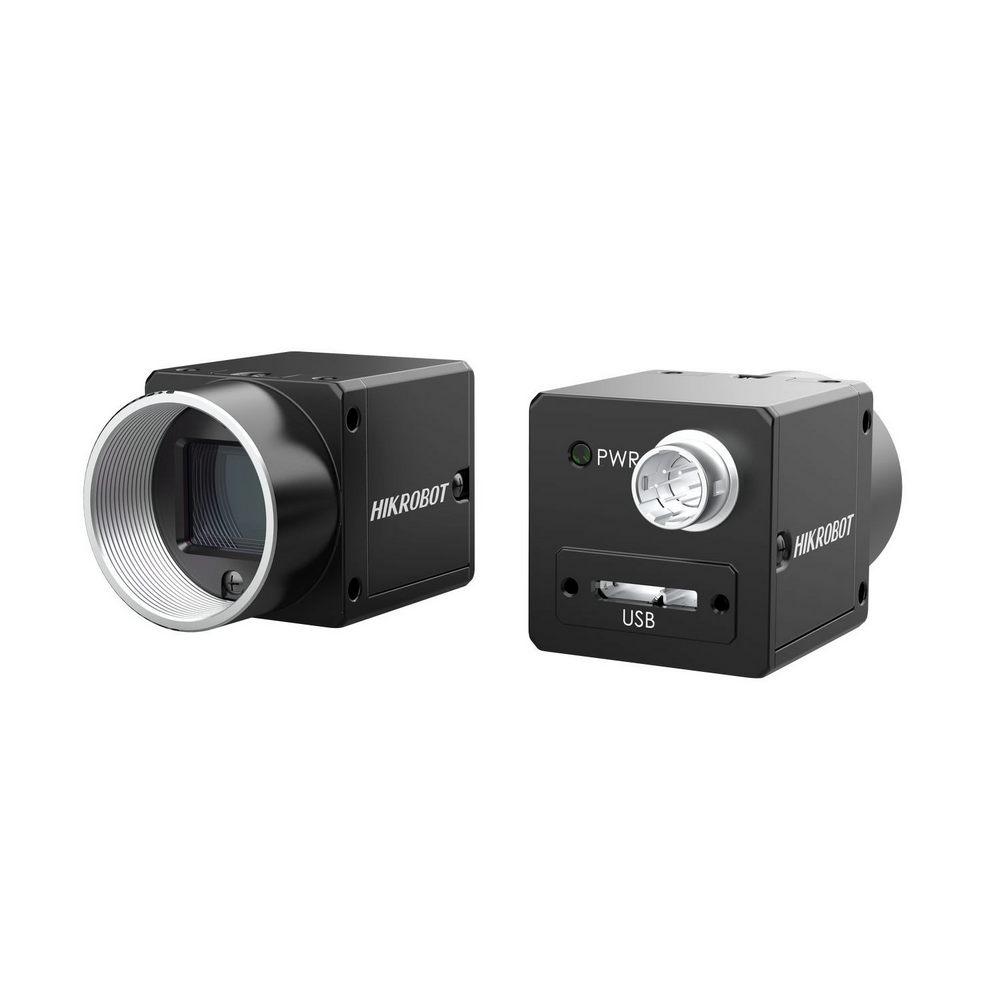

Name: HIKROBOT MV-CS060-10UM-PRO :: Machine-Vision камера, Area Scan, CS Series, 2.4 μm, 59.6 fps @ 3072×2048, C-Mount, монохромна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Нов дизайн за намаляване на консумацията на енергия
Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж от 4 страни
Използва сензор Sony® IMX178, който осигурява висока чувствителност, широк динамичен диапазон и нисък шум
Поддържа режим на компресия на изображението и функция за намаляване на шума
Използва техники за активно подравняване за сглобяване
Съвместим с USB3 Vision Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CS060-10UM-PRO
Model	Type	6MP Area Scan Camera, USB3.0,IMX178,Mono,PRO
Performance	Sensor type	CMOS, rolling shutter
	Sensor model	IMX178
	Pixel size	2.4 μm × 2.4 μm
	Sensor size	1/1.8"
	Resolution	3072 × 2048
	Max. frame rate	59.6fps @3072 × 2048
	Dynamic range	71.3 dB
	SNR	41.3 dB
	Gain	0 dB to 24 dB
	Exposure time	32 us to 1 sec
	Exposure mode	Off/Once/Continuous exposure mode, supports Global Reset, Trigger Rolling, and Rolling
	Mono/color	Mono
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10p/12/12p,YUV422Packed, YUV422_YUYV_Packed, RGB8, BGR 8
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 2.3 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 80 g (0.18 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -30 °C to 60 °C (-22 °F to 140 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3.0 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
EMVA data（typical）	Quantum efficiency	71.7%
	Dark noise	6.2e-@10-bit
	Signal-to-noise ratio	41.4 dB
	Saturation capacity	13.6 ke-
	Dynamic range	66.2 dB
