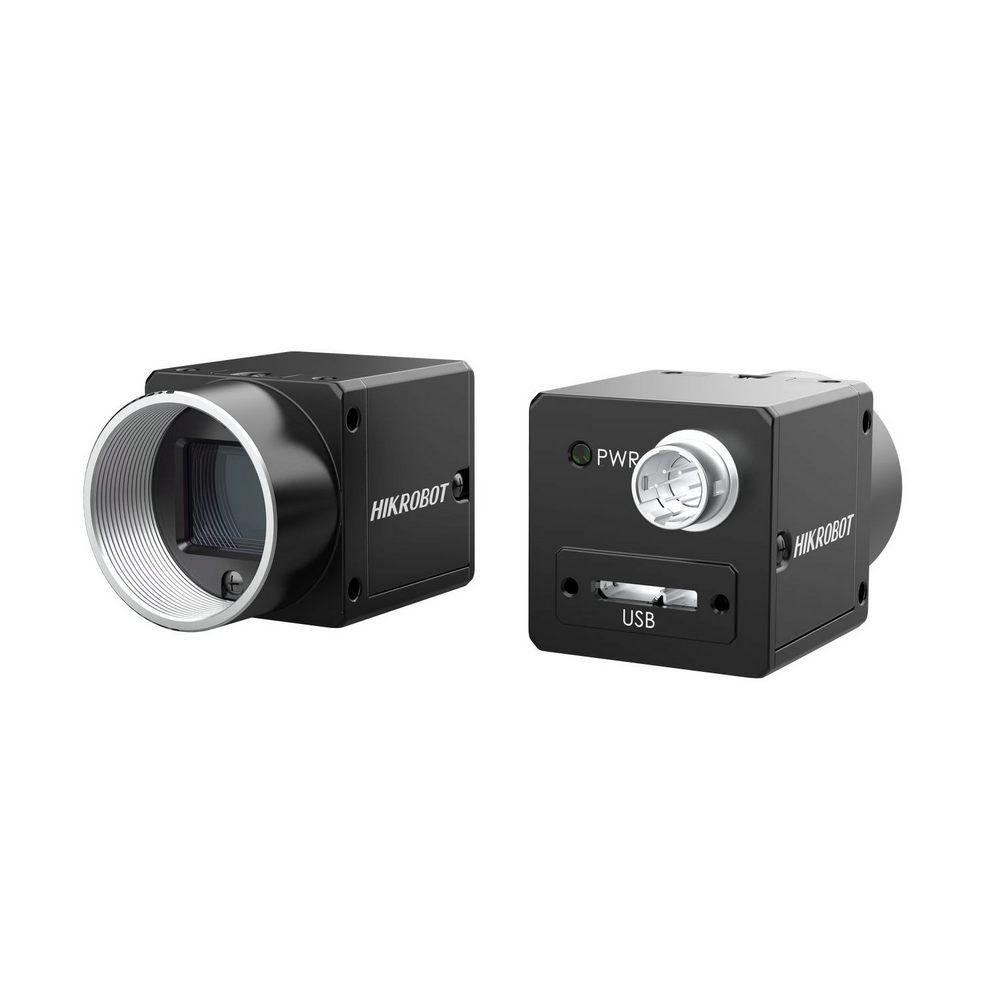

Name: HIKROBOT MV-CS040-A0UM :: Machine-Vision камера, Area Scan, CS Series, 5.5 μm, 90.1 fps @ 2048×2048 Mono 8, C-Mount, монохромна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

Използва global shutter CMOS сензор, осигуряващ високо съотношение сигнал/шум, широк динамичен диапазон и висококачествени изображения
Резолюция 2048 × 2048, pixel size 5.5 μm × 5.5 μm
Поддържа хардуерен тригер, софтуерен тригер и свободно движение
Компактен дизайн с монтажни отвори на панелите за гъвкав монтаж от 4 страни
Съвместим с USB3 Vision Protocol, GenICam Standard и софтуер на трети страни, базиран на протокола и стандарта

Model	Product Model	MV-CS040-A0UM
Model	Type	4MP Area Scan Camera, USB3.0, 2nd Gen, Mono.
Performance	Sensor type	CMOS, global shutter
	Pixel size	5.5 μm × 5.5 μm
	Sensor size	1"
	Resolution	2048 × 2048
	Max. frame rate	90.1 fps @2048 × 2048 Mono 8
	Dynamic range	59.7 dB
	SNR	39.6 dB
	Gain	0 dB to 12 dB
	Exposure time	30 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 2 × 2
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
	Power supply	9 VDC to 24 VDC, supports USB3.0 power supply
	Power consumption	Typ. 2.4 W@5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-mount
	Dimension	29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 88 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -30 °C to 60 °C (-22 °F to 140 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3.0 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
