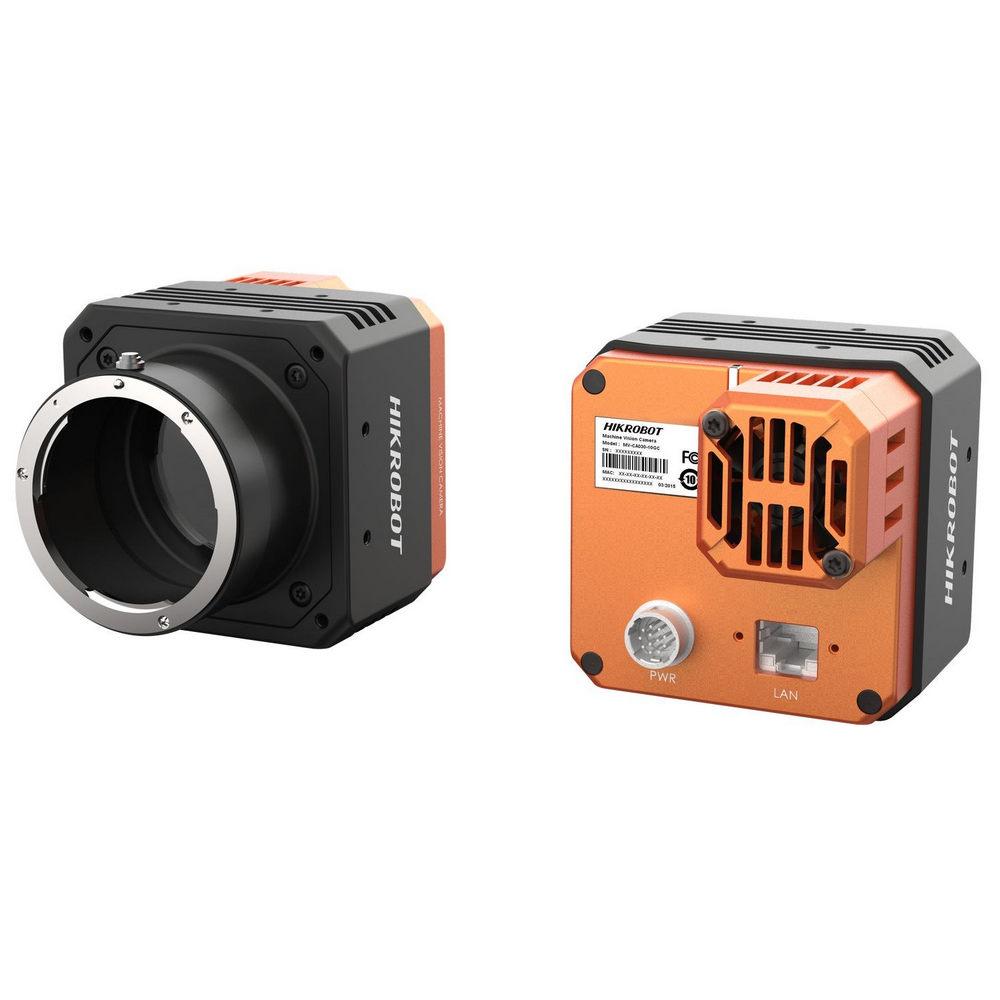

Name: HIKROBOT MV-CH250-21GM-F-NF :: Machine-Vision камера, Area Scan, CH Series, 4.5 μm, 4.64 fps @ 5120×5120, F-mount, Gigabit, монохромна
Brand: HIKROBOT
Availability: OutOfStock

Описание

Резолюция 5120 × 5120 pixel size 4.5 μm × 4.5 μm
GigE интерфейс, осигуряващ максимално разстояние на предаване от 100 метра без реле
Локална памет за пакетно предаване и повторно предаване
Компактен дизайн с монтажни отвори на горния и долния панел за гъвкав монтаж
Съвместим с GigE Vision V2.0 Protocol, GenICam Standard и софтуер на трети страни, базиран на тези протоколи и стандарти

Model	Product Model	MV-CH250-21GM-F-NF
Model	Type	25MP Area Scan Camera, GigE,PYTHON25K,Mono，F-mount,with fan
Performance	Sensor type	CMOS, global shutter
	Sensor model	PYTHON25K
	Pixel size	4.5 µm × 4.5 µm
	Sensor size	23 mm × 23 mm
	Resolution	5120 × 5120
	Max. frame rate	4.64 fps @5120 × 5120
	Dynamic range	58 dB
	SNR	41 dB
	Gain	0 dB to 15 dB
	Exposure time	80 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10p/12/12p
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	GigE
	Digital I/O	12-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1, and RS-485 × 1
	Power supply	12 VDC
	Power consumption	Typ. 6.7 W@12 VDC
Mechanical	Lens mount	F-mount, optical back focal length 46.5 mm (1.8")
	Dimension	F-mount with fan: 74 mm × 74 mm × 78.7 mm (2.9" × 2.9" × 3.1")
	Weight	F-mount with fan: < 600 g (1.3 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 95% RH, non-condensing
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
	Compatibility	GigE Vision V2.0, GenlCam
	Certification	CE, RoHS, KC
