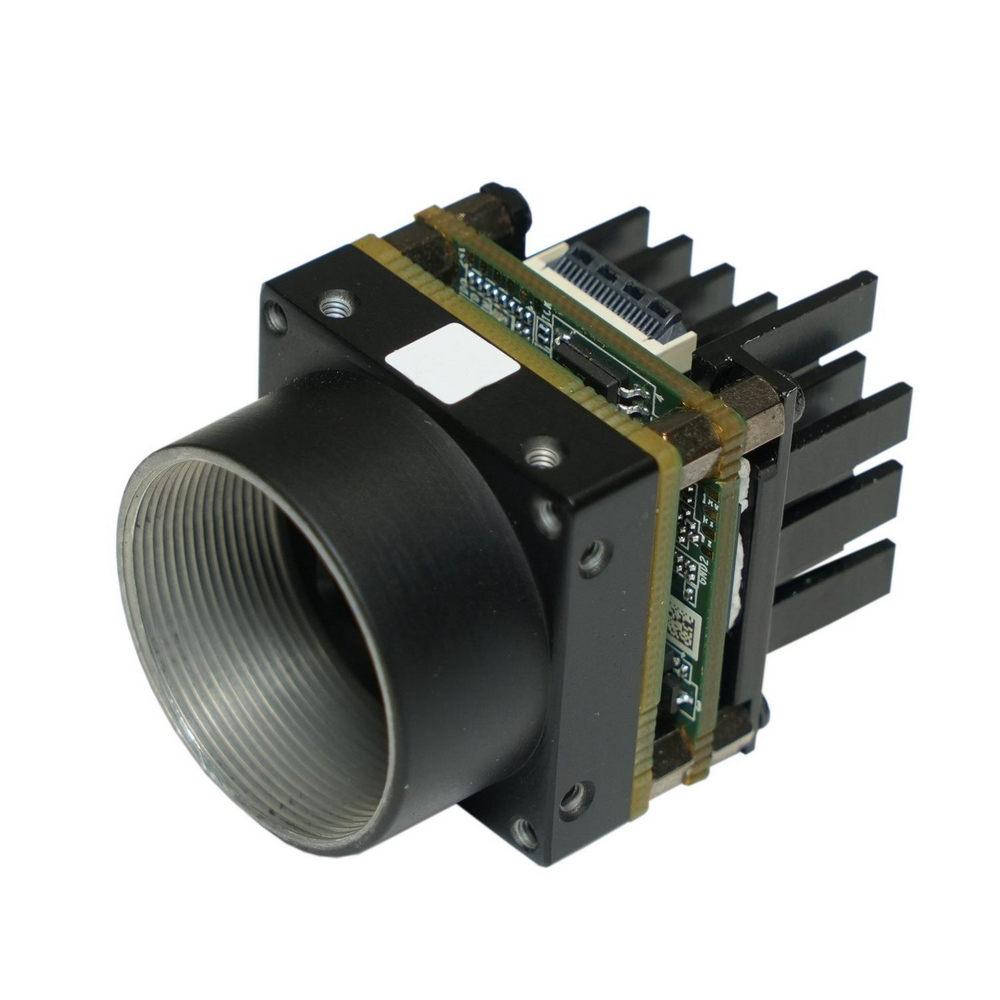

Name: HIKROBOT MV-CB050-11UC-C :: Machine-Vision камера, Board Level, CB Series, 3.45 μm, 60 fps @ 2448×2048, C-Mount, цветна, USB 3.0/2.0
Brand: HIKROBOT
Availability: OutOfStock

Описание

USB 3.0, поддържа FPC връзка, за ограничени пространства
Поддържа разделяне на сензора и дънната платка за сложни пространствени изисквания
Поддържа автоматична или ръчна настройка за усилване, време на експозиция, баланс на бялото, LUT, гама корекция и др.
Използва алгоритъм за интерполация на изображения за възпроизвеждане на цветовете
Съвместимост с USB 3 Vision Protocol, GenlCam Standard и софтуер на трети страни, базиран на тези протоколи и стандарти

Model	Product Model	MV-CB050-11UC-C
Model	Type	5MP Board Level Camera，USB3.0 , FPC interface，Color，C-mount
Performance	Sensor type	CMOS, global shutter
	Sensor model	IMX264
	Pixel size	3.45 μm × 3.45 μm
	Sensor size	2/3"
	Resolution	2448 × 2048
	Max. frame rate	60 fps @2448 × 2048
	Dynamic range	72 dB
	SNR	40.2 dB
	Gain	0 dB to 24 dB
	Exposure time	UltraShort exposure mode: 1 μs to 14 μsStandard exposure mode: 15 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Decimation	Supports 1 × 1, 2 × 2
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	USB3.0
	Digital I/O	Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
	Power supply	5 VDC (USB3.0 provides power supply)
	Power consumption	Typ. 2.8 W @5 VDC (USB3.0 provides power supply)
Mechanical	Lens mount	C-Mount
	Dimension	29 mm × 29 mm × 31.3 mm (1.1" × 1.1" × 1.2")
	Weight	Approx. 37 g (0.08 lb.)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
	Humidity	20% to 80% RH, non-condensing
General	Client software	MVS or third-party software meeting with USB3 Vision Protocol
	Operating system	32/64-bit Windows XP/7/10 and 32/64-bit Linux
	Compatibility	USB3 Vision, GenlCam
	Certification	CE, RoHS, KC
