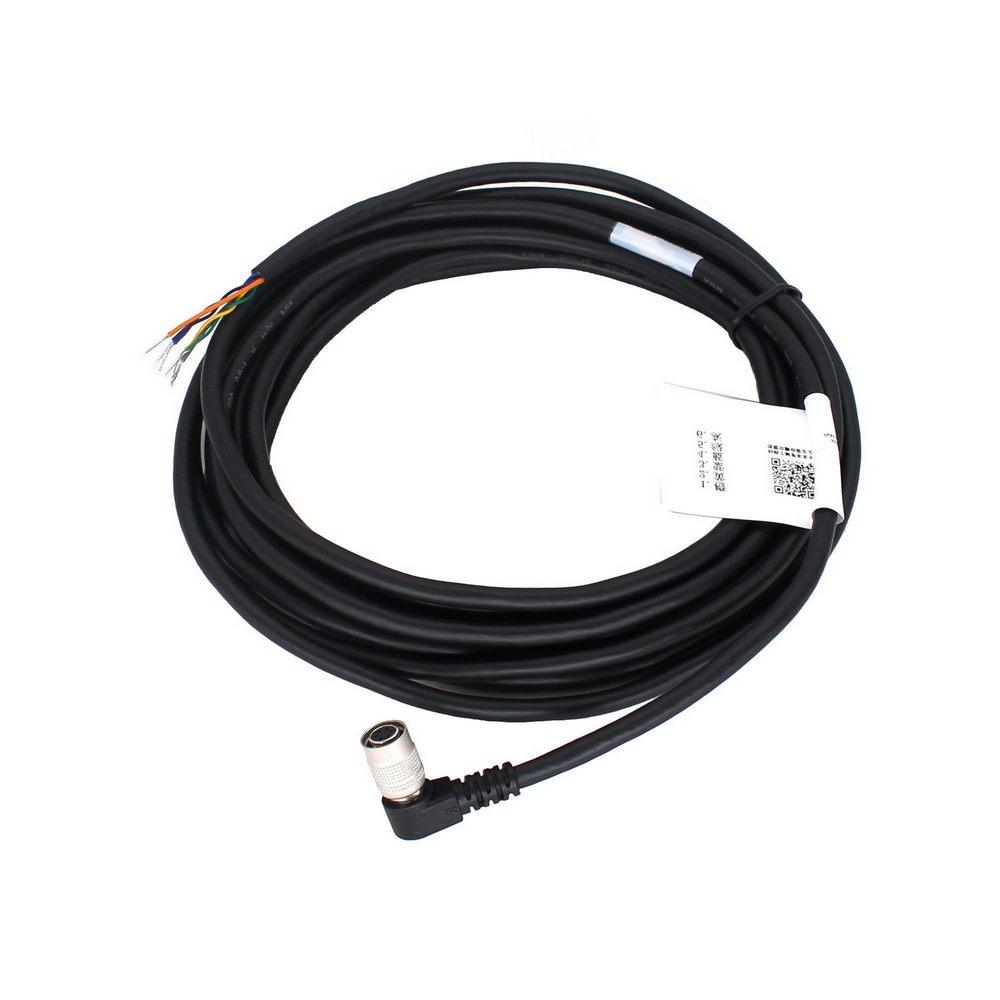

Name: HIKROBOT MV-ACP-H6p(left)-open-HF-3m :: Power/IO кабел, Flexible, Hirose 6pin, HR10A-7P-6S to Open, Power/IO, Right Angled, 3.0 м
Brand: HIKROBOT
Availability: OutOfStock

Описание

The 6-pin P7 High Flex (Left side) Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.

Model	Product Model	MV-ACP-H6p(left)-open-HF-3m
Model	Type	MV-ACP-H6p(left)-open-HF-3m
Physical specification	End A connector	P7 6-pin，Femal，Left side
	End B connector	Open
	Cable diameter	5.5 mm
	Length	3 m
	Cable mechanical	2P28AWG+2C23AWG+AB
	Jacket	PVC
	Cable color	Black
	Connector model	made in China
	Connector durability	≥ 750 cycles
	Min. bending radius	66 mm
	Applicable scenario	Tank chain
	Max. U-type bending cycles	≥ 5 million times
Electrical specification	Max. voltage	30 VDC
Additional information	Working temperature	-20℃~80℃
	Certification	RoHS2.0
	Packaging	Individual package
