Growatt TPM-CT-E(250A) Smart Meter Device
Power grid type: 3P4W, Input voltage: 170 Vac ~ 480 Vac (L-L)
Frequency: 50/60Hz (45~56)Hz, Normal current/Max. current: 10A/100A
Voltage/Current Accuracy: 0.5 %, Power Accuracy: 1 %, Frequency Accuracy: 0.2 %
Interface: RS485, Baud rate: 9600, Communication protocol: Modbus-RTU
Environment protection rating: IP51, Operating temperature range: -25 °C to 55 °C,
Storage temperature range: -40 °C to 70 °C, Operating humidity: 0 - 90% (non-condensing)
Mounting type: DIN rail 35mm; Dimensions (W x H x D): 95 x 65 x 72 mm, Weight: 280 g

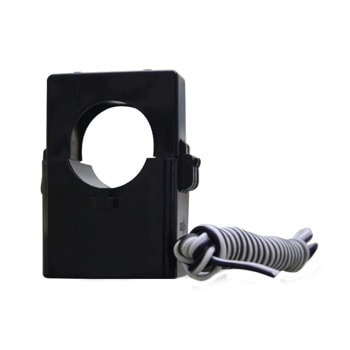

Accessories: 3CT 250A/40mA (5m)/ Fi 24mm
Виж още Модули за фотоволтаици Growatt
Виж всички Модули за фотоволтаици в категорията
Power grid type: 3P4W, Input voltage: 170 Vac ~ 480 Vac (L-L)
Frequency: 50/60Hz (45~56)Hz, Normal current/Max. current: 10A/100A
Voltage/Current Accuracy: 0.5 %, Power Accuracy: 1 %, Frequency Accuracy: 0.2 %
Interface: RS485, Baud rate: 9600, Communication protocol: Modbus-RTU
Environment protection rating: IP51, Operating temperature range: -25 °C to 55 °C,
Storage temperature range: -40 °C to 70 °C, Operating humidity: 0 - 90% (non-condensing)
Mounting type: DIN rail 35mm; Dimensions (W x H x D): 95 x 65 x 72 mm, Weight: 280 g
Accessories: 3CT 250A/40mA (5m)/ Fi 24mm
Виж още Модули за фотоволтаици Growatt
Виж всички Модули за фотоволтаици в категорията
Документация
Growatt Smart Meter (with CT).pdfТехнически характеристики
| Тип: | Измервател на енергия |
|---|
