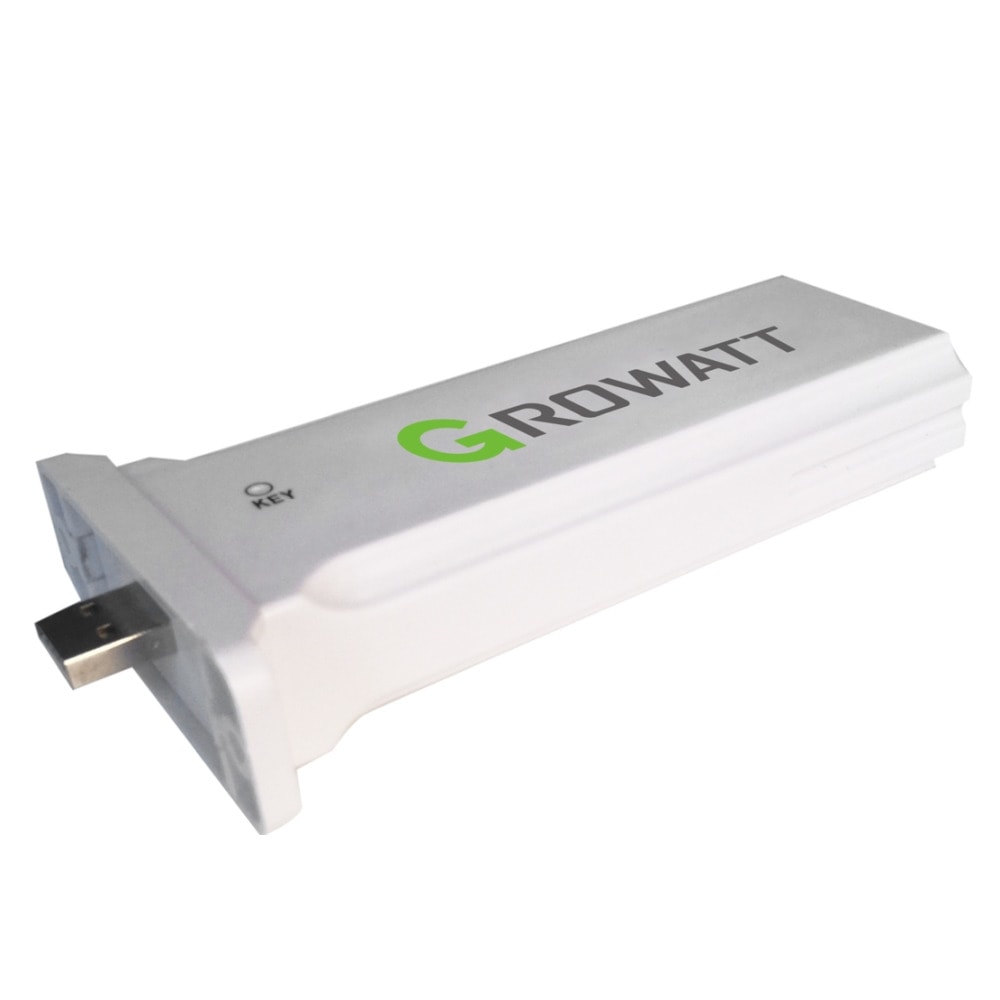

Growatt Shine WiFi-F Monitoring System
Supported servers: ShineServer, Supported Routers: Wireless router (Include 3G router)
Data interface: UART: 9600 bps, Ethernet: 100 Mbps, Inverter communication: USB A-type, Server communication: WiFi via router (Modbus TCP protocol), User Configuration Interface: Wireless web server (Internet Browser); Max.
Communication Range: 100m
Wireless standard: 802.11 b/g/n; Network Type: AP (Acess Point), Station Mode (with Soft AP); Security Mechanisms: WEP / WPA-PSK / WPA2-PSK / WAPI, Encryption: WEP64 / WEP128 / TKIP / AES
Operating Current: 1A, Operating voltage: 5V (± 5%)
Display: LED
Operating temperature range: -20 °C to 65 °C, Storage temperature range: -40 °C to 70 °C
Dimensions (W x H x D): 135 x 29 x 79 mm, Weight: 63 g
Виж още Модули за фотоволтаици Growatt
Виж всички Модули за фотоволтаици в категорията
Supported servers: ShineServer, Supported Routers: Wireless router (Include 3G router)
Data interface: UART: 9600 bps, Ethernet: 100 Mbps, Inverter communication: USB A-type, Server communication: WiFi via router (Modbus TCP protocol), User Configuration Interface: Wireless web server (Internet Browser); Max.
Communication Range: 100m
Wireless standard: 802.11 b/g/n; Network Type: AP (Acess Point), Station Mode (with Soft AP); Security Mechanisms: WEP / WPA-PSK / WPA2-PSK / WAPI, Encryption: WEP64 / WEP128 / TKIP / AES
Operating Current: 1A, Operating voltage: 5V (± 5%)
Display: LED
Operating temperature range: -20 °C to 65 °C, Storage temperature range: -40 °C to 70 °C
Dimensions (W x H x D): 135 x 29 x 79 mm, Weight: 63 g
Виж още Модули за фотоволтаици Growatt
Виж всички Модули за фотоволтаици в категорията
Документация
Ръководство на потребителя за Growatt Shine WiFi-F.pdfТехнически характеристики
