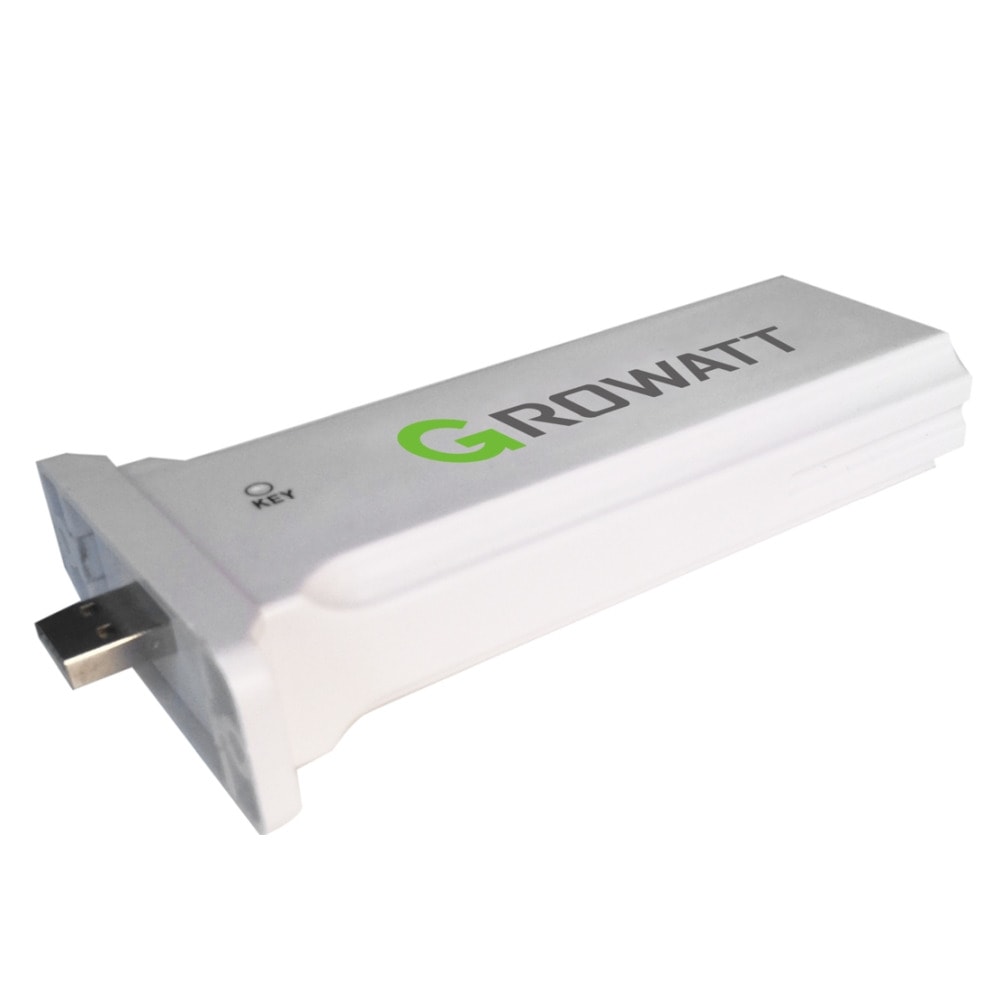

Growatt Shine GPRS-F Monitoring System
Servers: ShineServer
Configuration interface: APP, Inverter communication: USB A-type, Server communication: TCP(Modbus TCP protocol), Network supported: 2G GSM(GPRS), SIM type: Regular SIM card
Wireless type: GPRS, Frequency range: 850/900/1800/1900 MHz, Antenna Gain: 3dbi;
Speed: Max. 85.6Kbps(DL); Max 42.8Kbps(UL); Serial port speed: 9600bps
Max. output power: 2W; DCS1800/PCS1900: 1W; Operating voltage: 5V (± 15%),
Operating current: 1A
Operating temperature range: -30 °C to 65 °C, Storage temperature range: -40 °C to 70 °C
Dimensions (W x H x D): 135 x 29 x 79 mm, Weight: 70 g
Виж още Модули за фотоволтаици Growatt
Виж всички Модули за фотоволтаици в категорията
Servers: ShineServer
Configuration interface: APP, Inverter communication: USB A-type, Server communication: TCP(Modbus TCP protocol), Network supported: 2G GSM(GPRS), SIM type: Regular SIM card
Wireless type: GPRS, Frequency range: 850/900/1800/1900 MHz, Antenna Gain: 3dbi;
Speed: Max. 85.6Kbps(DL); Max 42.8Kbps(UL); Serial port speed: 9600bps
Max. output power: 2W; DCS1800/PCS1900: 1W; Operating voltage: 5V (± 15%),
Operating current: 1A
Operating temperature range: -30 °C to 65 °C, Storage temperature range: -40 °C to 70 °C
Dimensions (W x H x D): 135 x 29 x 79 mm, Weight: 70 g
Виж още Модули за фотоволтаици Growatt
Виж всички Модули за фотоволтаици в категорията
Документация
Certificate of Conformity_Growatt ShineGPRS-F.pdfТехнически характеристики
| Тип: | Измервател на енергия |
|---|
