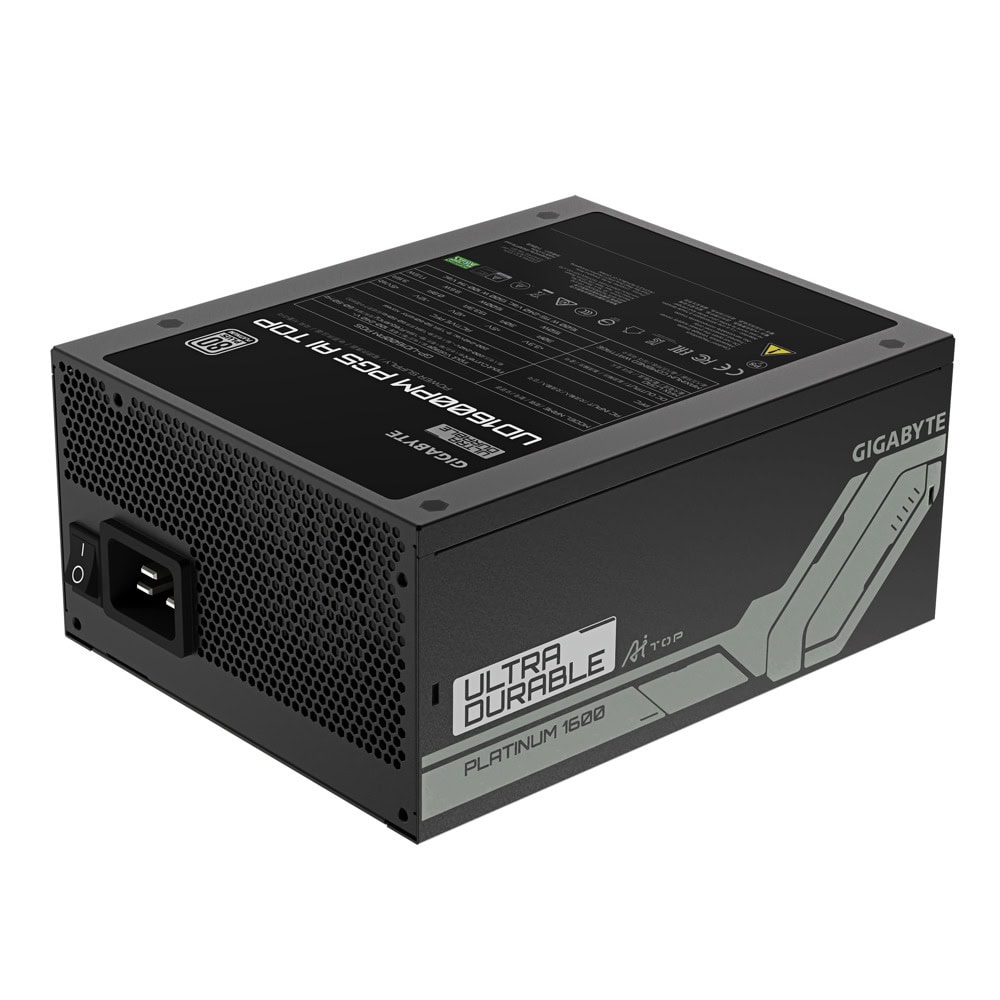

Name: Захранване Gigabyte UD1600PM PG5 AI TOP, 1600W, Active PFC, 80 Plus Platinum, 140mm вентилатор
Brand: Gigabyte
SKU: PWRPCGIGABYTEUD1600PMPG5
Price: 693.06 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

Gigabyte UD1600PM PG5 AI TOP

ATX 3.1 and PCIe Gen 5.0 ready

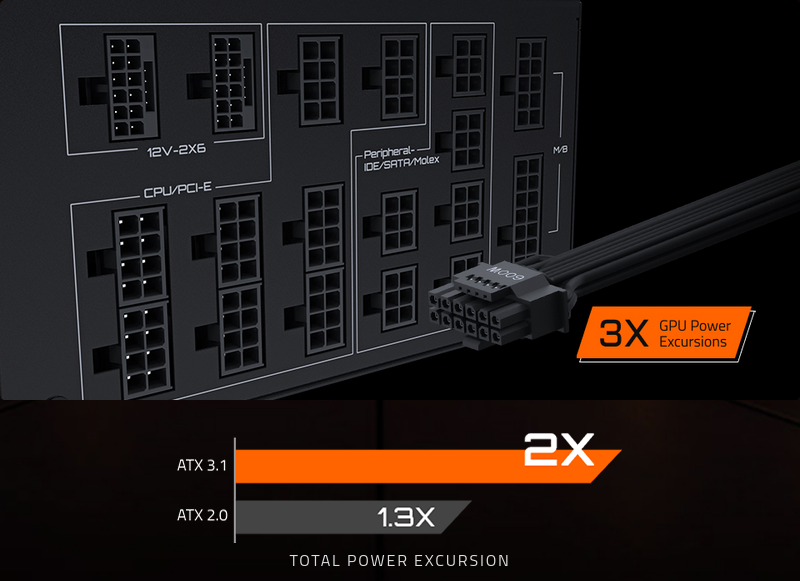

The UD1600PM PG5 AI TOP can sustain power excursions of up to 3 times the GPU power and 2 times the total power. It's fully compliant with the latest Intel ATX 3.1 standard, supporting up to 200% power excursions and achieving 70% efficiency at low loads. Additionally, the included high-quality, native 16-pin cable ensures compatibility with PCIe Gen 5.0 graphics cards, delivering up to 600 watts of power.

Type

Intel Form Factor ATX 12V v3.1

PFC

Active PFC (>0.9 typical)

Input Voltage

100-240 Vac (full range)

Input Current

15-7.5A

Input Frequency

60-50 Hz

Output Capacity

1600W

Dimensions

150 x 190 x 86mm

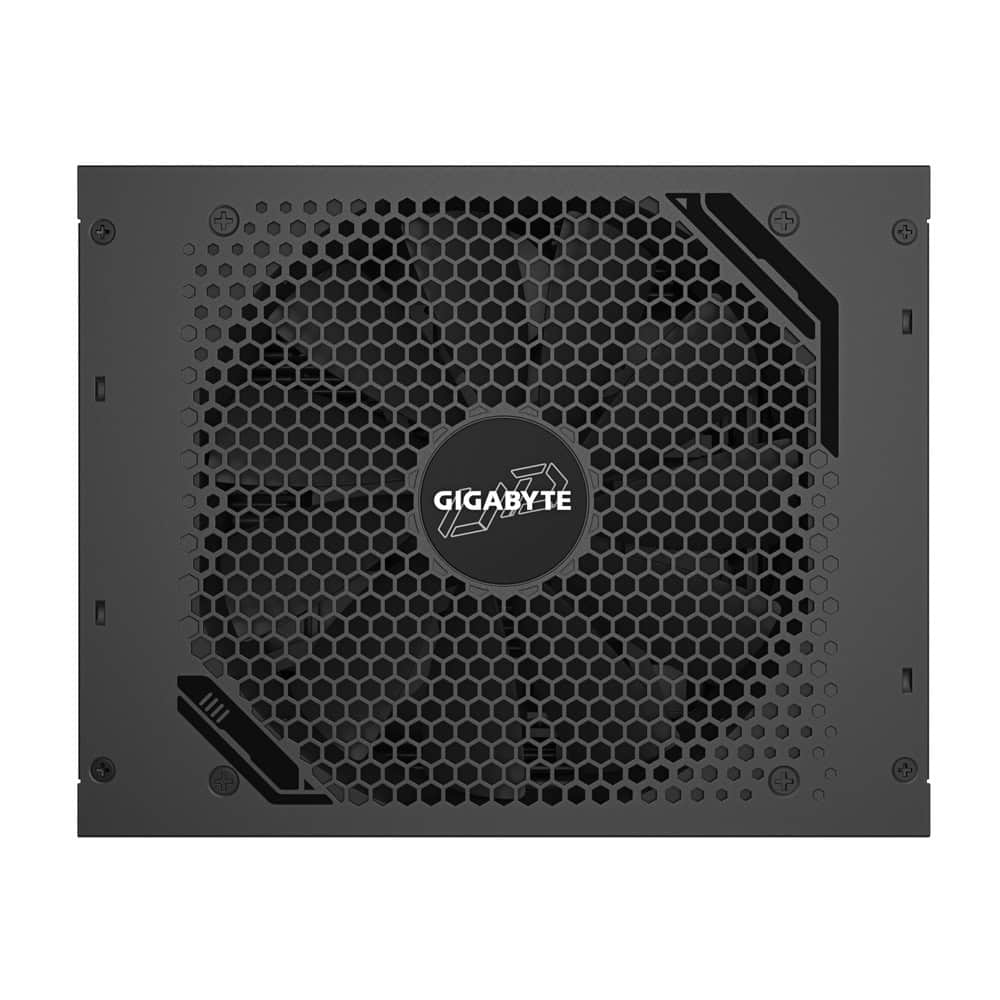

Fan Type

140mm Double Ball Bearing fan

80 PLUS

Platinum

Efficiency

92% at typical load

MTBF

>100,000 hours

Protections

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Flat, All black

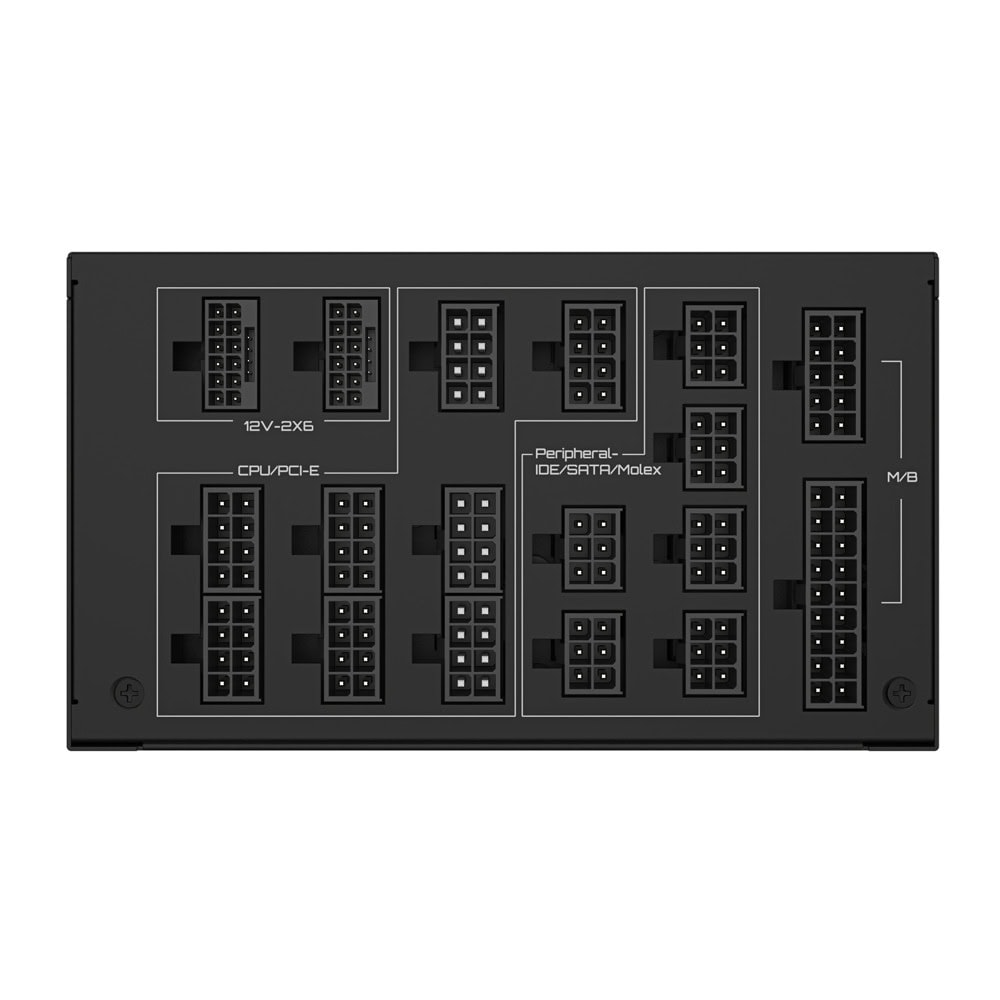

Connectors

ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCI-E 16 Pin x 2 : 700mm*2
PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2
PCI-E 6+2 Pin x 8 : 650mm+150mm*4
SATA x 16 : 650mm+150mm+150mm+150mm*4
4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
