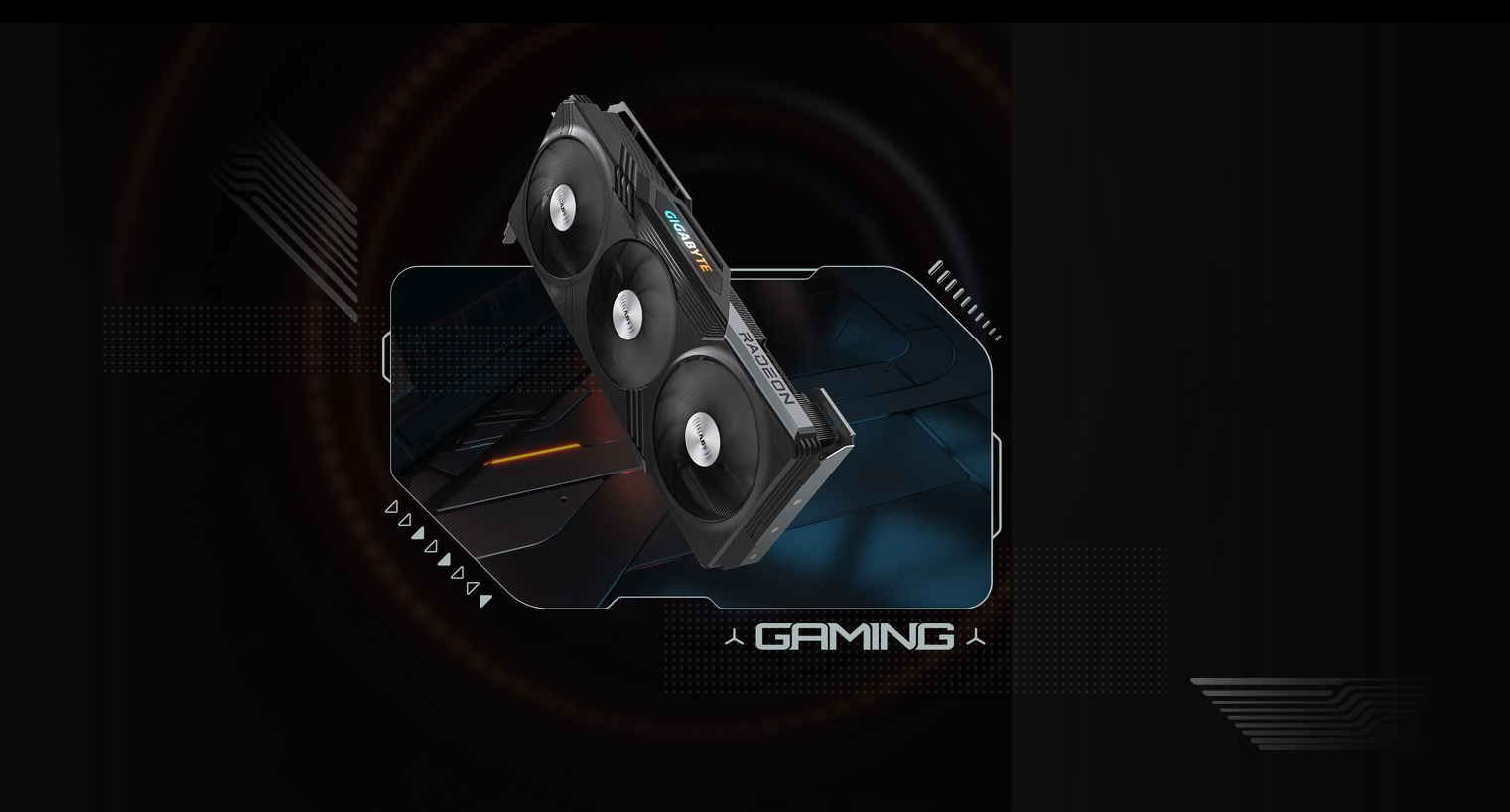

Gigabyte Radeon RX 7900 XT GAMING OC 20G
WINDFORCE

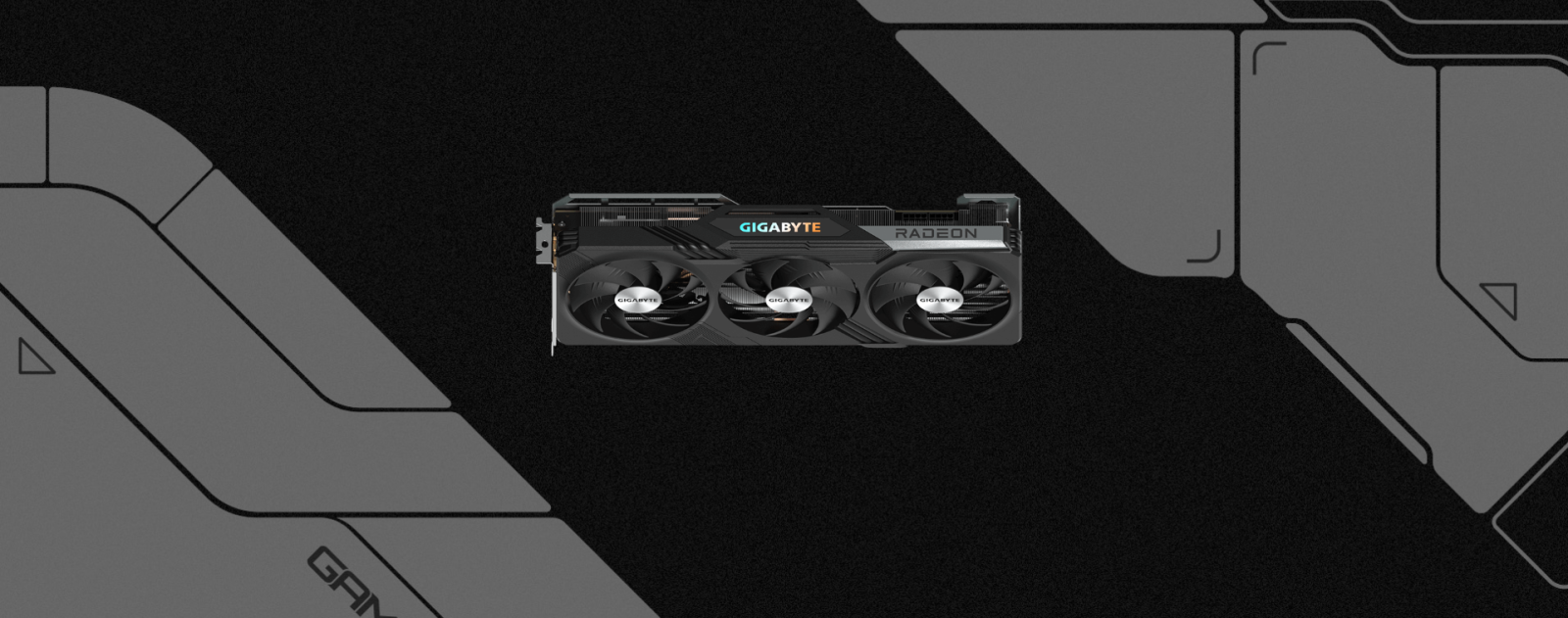

COOLING SYSTEM
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

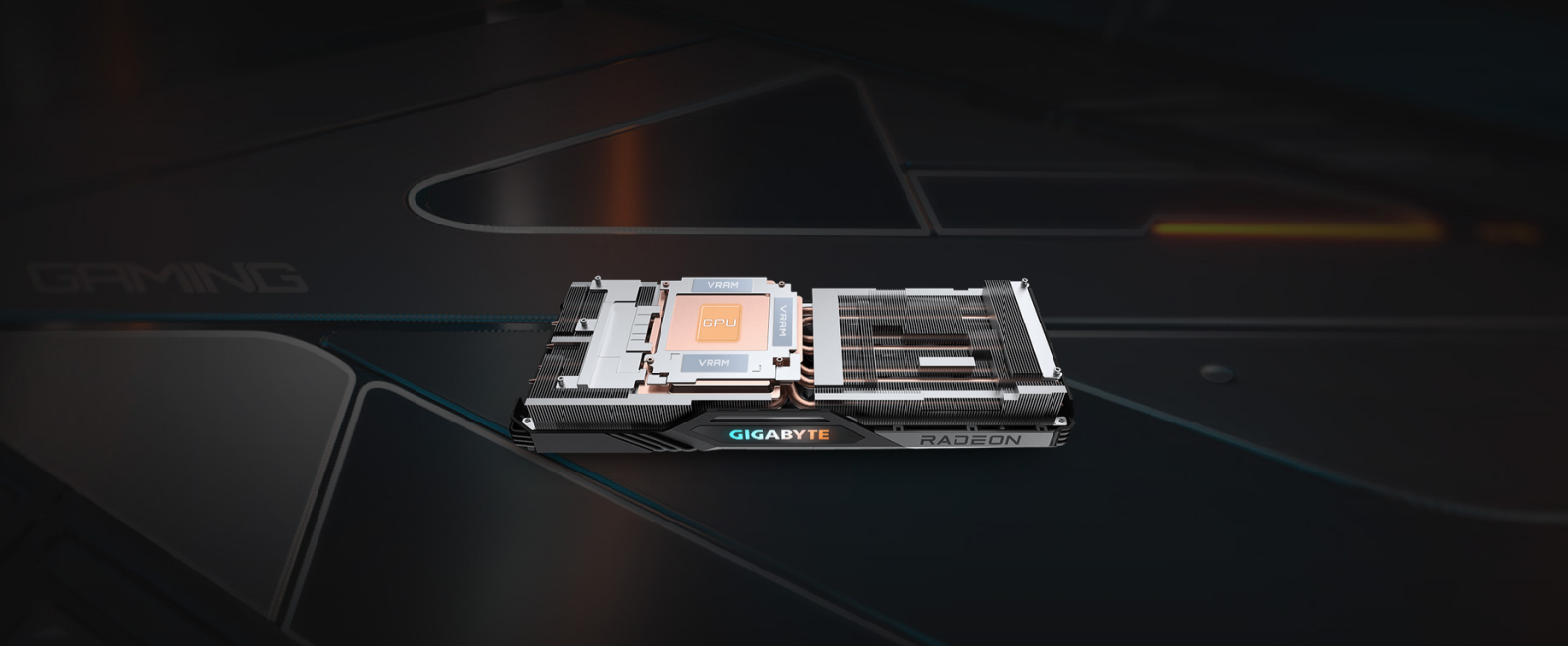

LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Tech specs
Graphics Processing
Radeon RX 7900 XT
Core Clock
Boost Clock* : up to 2535 MHz (Reference card: 2400 MHz)
Game Clock* : up to 2175 MHz (Reference card: 2000 MHz)Stream Processors
5376
Memory Clock
20 Gbps
Memory Size
20 GB
Memory Type
GDDR6
Memory Bus
320 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=331 W=138 H=50 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
800W
Power Connectors
8 Pin*2
Output
DisplayPort 2.1 *2
HDMI 2.1 *2
