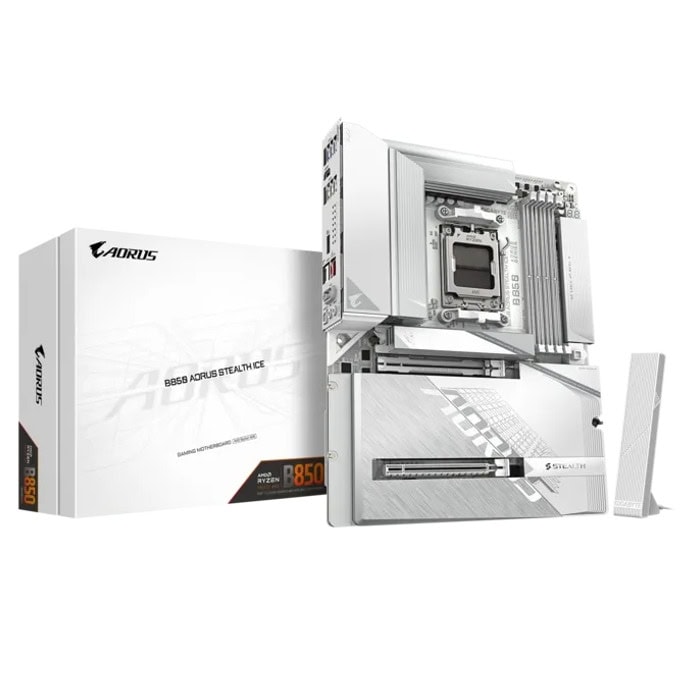

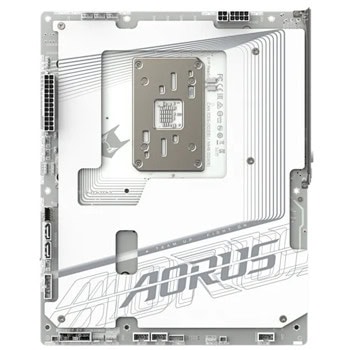

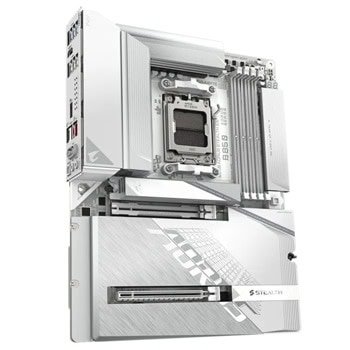

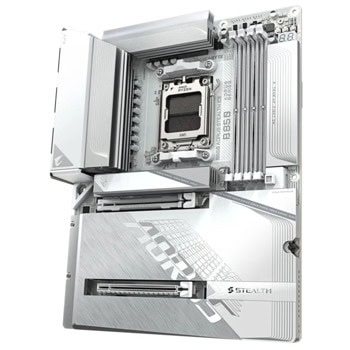

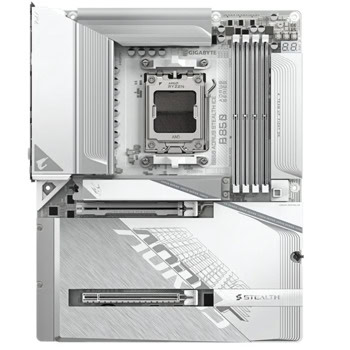

Дънна платка Gigabyte B850 AORUS STEALTH ICE, B850, AM5, DDR5, PCI-E 5.0, (HDMI), 2x SATA 6Gb/s, 4x M.2 slots, 1x USB 3.2 Gen 2x2 Type-C, 5GbE LAN, Wi-Fi 7, Bluetooth 5.4, ATX

FEATURES

• X3D Turbo Mode : Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• DriverBIOS : Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
• M.2 EZ-Flex : high-efficiency heat dissipation & flexible baseplate for M.2 SSD
  (Exclusive Patented Design)
• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click : M.2 heatsinks with screwless design
• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
• Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity : HDMI
• PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
• UD Base Plate : Experience the protection and heat dissipation with the UD Base Plate.

• CPU
• AMD Socket AM5, support for:
  AMD Ryzen™ 9000 Series Processors/
  AMD Ryzen™ 8000 Series Processors/
  AMD Ryzen™ 7000 Series Processors

• Chipset
• AMD B850
• Memory
• Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

• Onboard Graphics

• Integrated Graphics Processor with AMD Radeon™ Graphics support:
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  ** Support for native HDMI 2.1 TMDS compatible ports.


  (Graphics specifications may vary depending on CPU support.)

• Audio

• Realtek® ALC1220 CODEC


  * The back panel line out jack supports DSD audio.


  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


  Support for S/PDIF Out

• LAN
• Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module

• Realtek® Wi-Fi 7 RTL8922AE
  - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  - BLUETOOTH 5.4
  - Support for 11be 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)


  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
  *** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.

• Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode


  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


  Chipset:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)


  * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

• Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs


  * The M2B_CPU connector becomes unavailable when an AMD Ryzen™ 8000 SeriesPhoenix 2 processor is used.


  2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
  2 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices


  * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.


  RAID 0 and RAID 1 support for SATA storage devices

• USB
• CPU:
  - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  CPU+USB 3.2 Gen 1 Hub:
  - 4 x USB 3.2 Gen 1 ports on the back panel
  CPU+USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports on the back panel
  Chipset:
  - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  - 2 x USB 3.2 Gen 1 ports available through the internal USB header
  - 4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
• 1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x 4-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  4 x system fan headers
  2 x system fan/water cooling pump headers
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  4 x M.2 Socket 3 connectors
  2 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x noise detection header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x Q-Flash Plus button
  1 x power button
  1 x reset button
  1 x reset jumper
  2 x temperature sensor headers
  1 x Clear CMOS jumper
• Back Panel Connectors
• 1 x HDMI port (Note)
  2 x antenna connectors (2T2R)
  1 x USB Type-C® header, with USB 3.2 Gen 2 support
  2 x USB 3.2 Gen 2 Type-A ports (red)
  4 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  1 x optical S/PDIF Out connector
  2 x audio jacks

  (Note) Actual support may vary by CPU.
• I/O Controller
• iTE® I/O Controller Chip
• H/W Monitoring

• Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS
• 1 x 512 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features

• Support for GIGABYTE Control Center (GCC)


  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Bundled Software
• Norton® Internet Security (OEM version)
• Operating System
• Support for Windows 11 64-bit
• Form Factor
• ATX Form Factor; 30.5cm x 24.4cm
