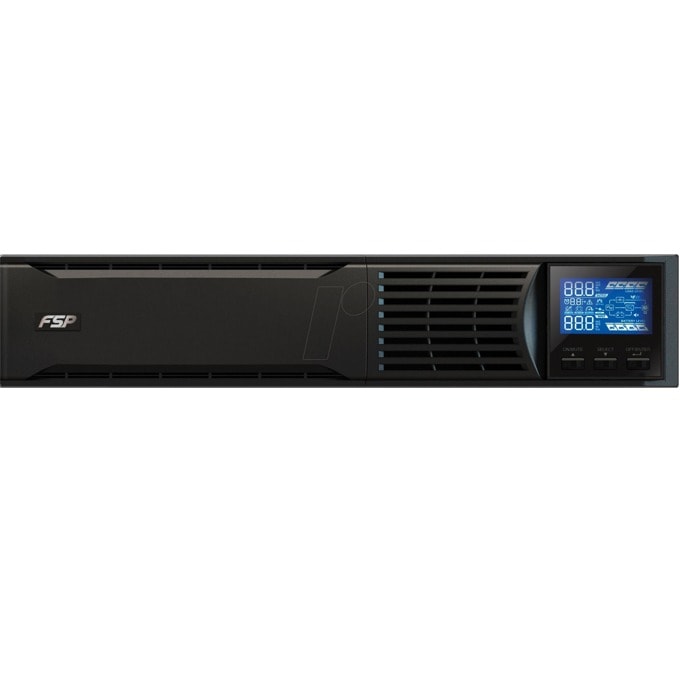

Name: UPS FSP Champ Rack 2K (PPF18A1401), 2000VA/1800W, On Line, Rack
Brand: FSP
SKU: UPSFSPPPF18A1401
Price: 503.27 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

UPS Specifications:

Model	Champ RM 2K
Capacity	2000 VA / 1800W
Input Voltage Range	120-300 VAC
Input Frequency	40Hz ~ 70Hz
Power Factor	≥ 0.99 @ Nominal Voltage (100% load)
Output Voltage	± 1% (Batt. Mode)
Output Frequency Range	47.5 Hz ~ 52.5 Hz or 57Hz ~ 63 Hz (Synchronized Range) 50 Hz ±0.25 Hz or 60 Hz ±0.3 Hz (Batt. Mode)
Current Crest Ratio	3:1
Harmonic Distortion	≤ 3 % THD (Linear Load) ≤ 6 % THD (Non-linear Load)
Output Transfer Time (Typical)	Zero (AC to DC) 4ms (Inverter to Bypass)
Output Waveform (Batt. Mode)	Pure Sinewave
Battery Type & Number	12V / 9Ah x 4
Backup Time (One PC load@120W)	N/A
Typical Recharge Time (up to 90% capacity)	4 hours
Indicators / AC Mode	✔
Indicators / Battery Mode	✔
Indicators / Battery level	✔
Indicators / Load level	✔
Indicators / Bypass mode	✔
Indicators / Fault	✔
Alarm / Battery Mode	Sounding every 4 seconds
Alarm / Low Battery	Sounding every second (Batt. Mode)
Alarm / Overload	Sounding twice per second
Alarm / Fault	Continuously sounding
Physical Dimension (mm)	410x438x88
Physical Net Weight (kg) Standard Model	19
Output Outlet	3*schuko
Operating Environment / Humidity	20-90 % RH @ 0- 40°C (non-condensing)
Operating Environment / Noise Level	Less than 50dB @ 1 Meter
Management / Optional USB / RS-232 Port	Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/2003/2008/2012/2016, Linux, and MAC
Optional SNMP	Power management from SNMP manager and web browser
