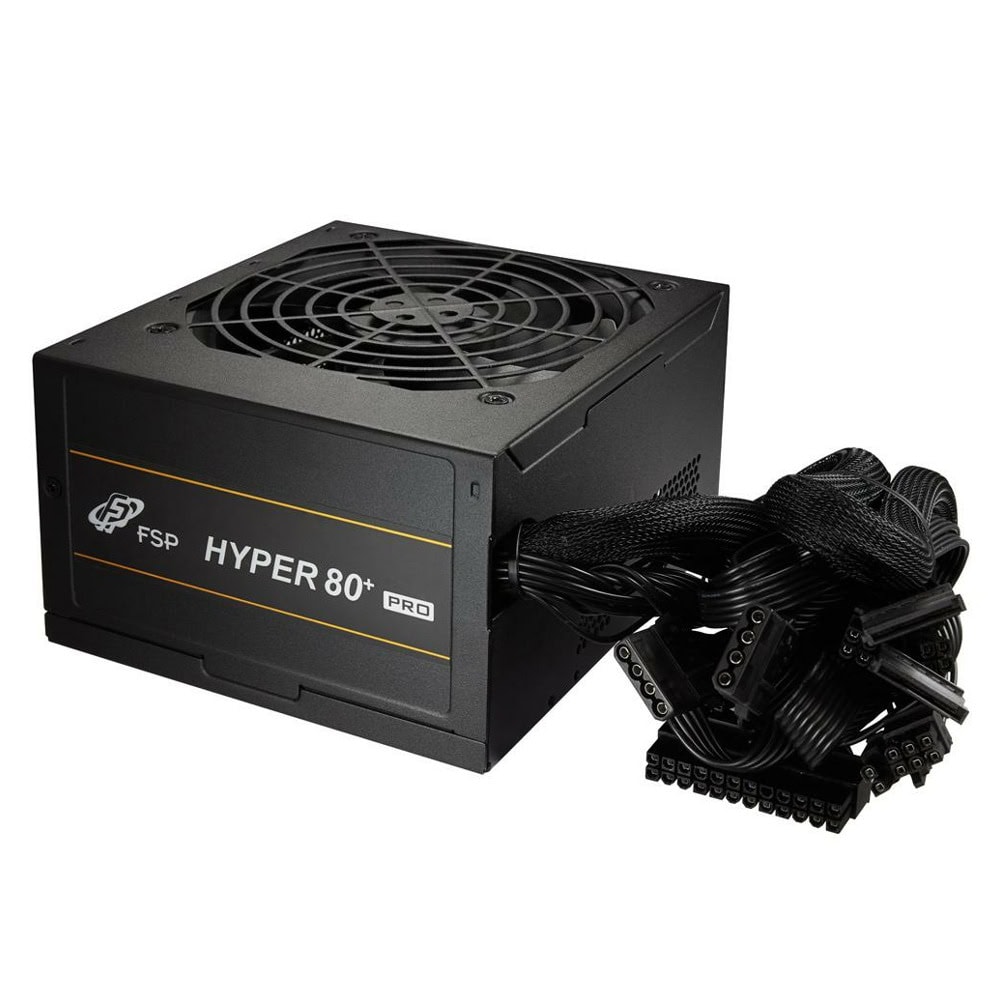

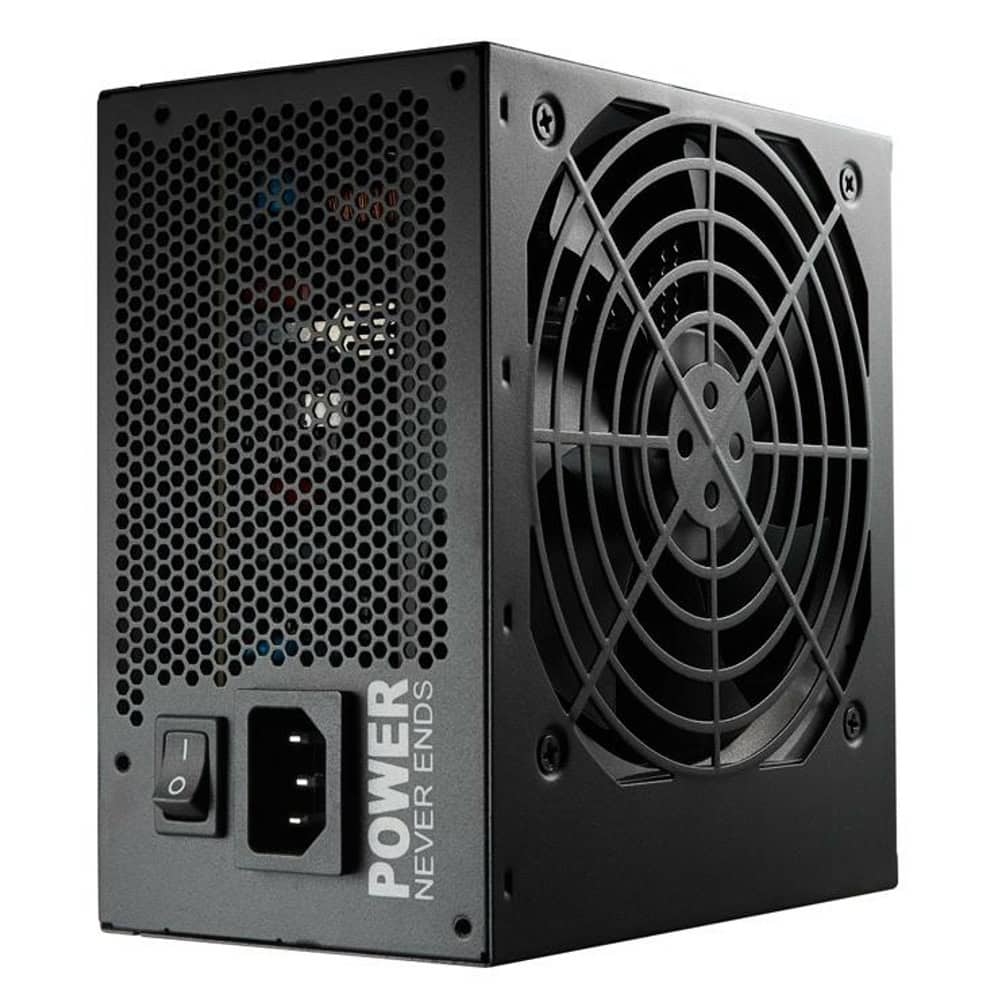

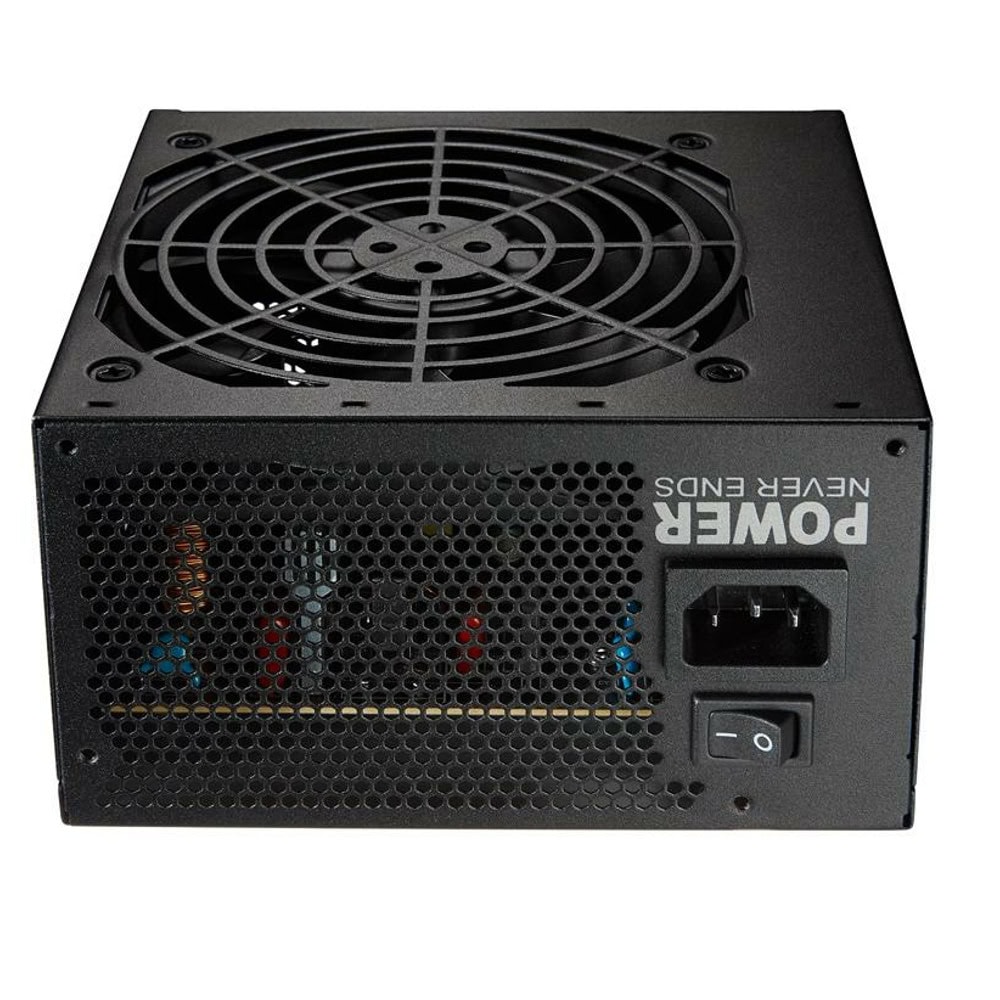

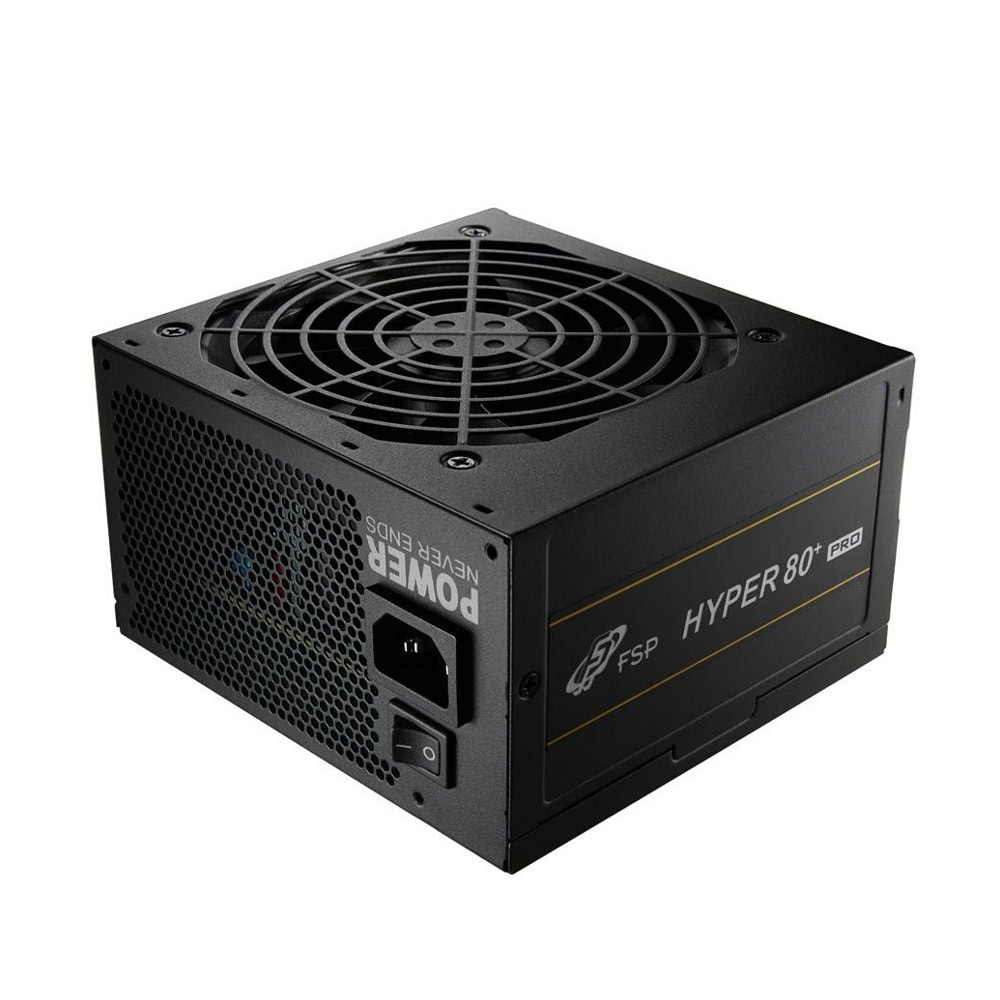

HYPER 80+ PRO 650W

Complies with ATX12 V2.4 & EPS12 V2.92
Efficiency ≥ 88% at typical load
Active PFC ≥ 0.9
Hold up time > 17ms at 80% load
450V, 105°C capacitors for a long product life cycle
+12V single-rail design
+5V &3.3V DC to DC module design

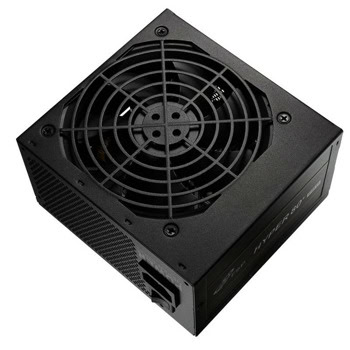

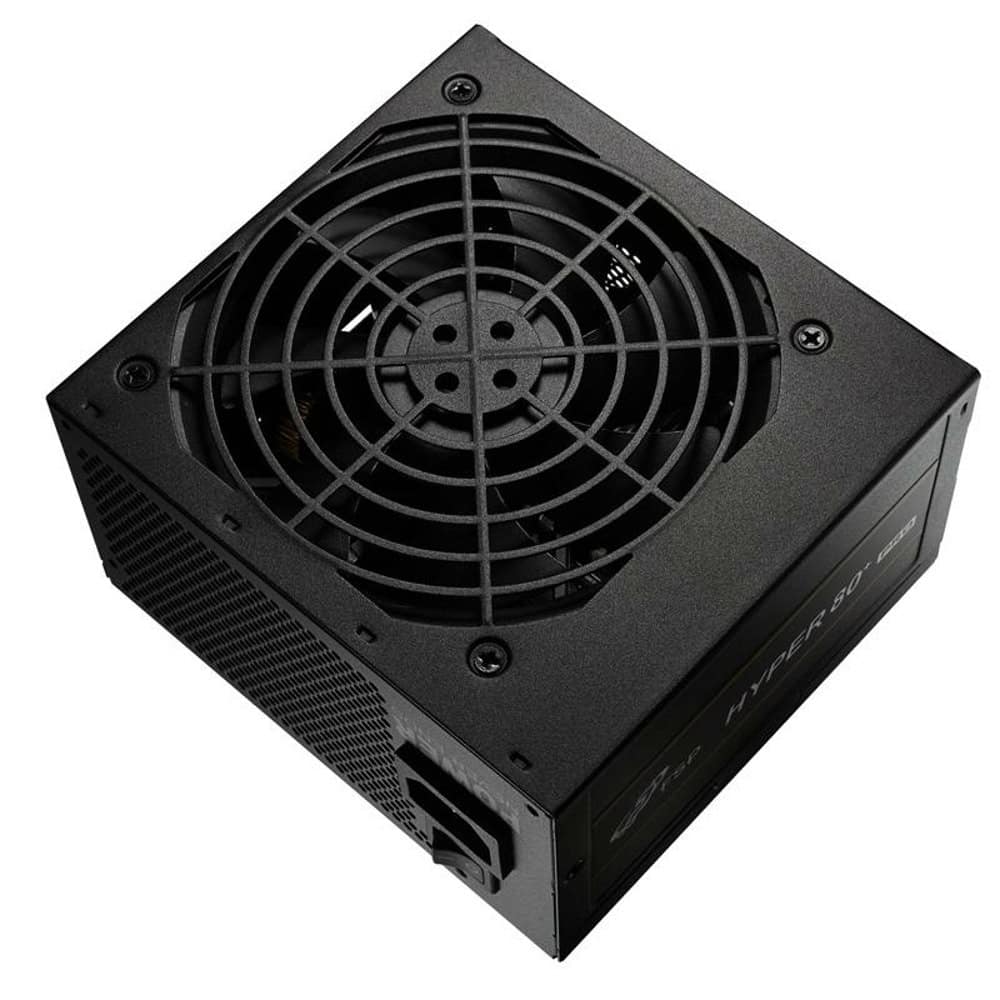

120mm silent and long life fan
All black round cables
Complete protection: OCP/OVP/OPP/SCP

80 Plus® 230V EU Bronze Certification

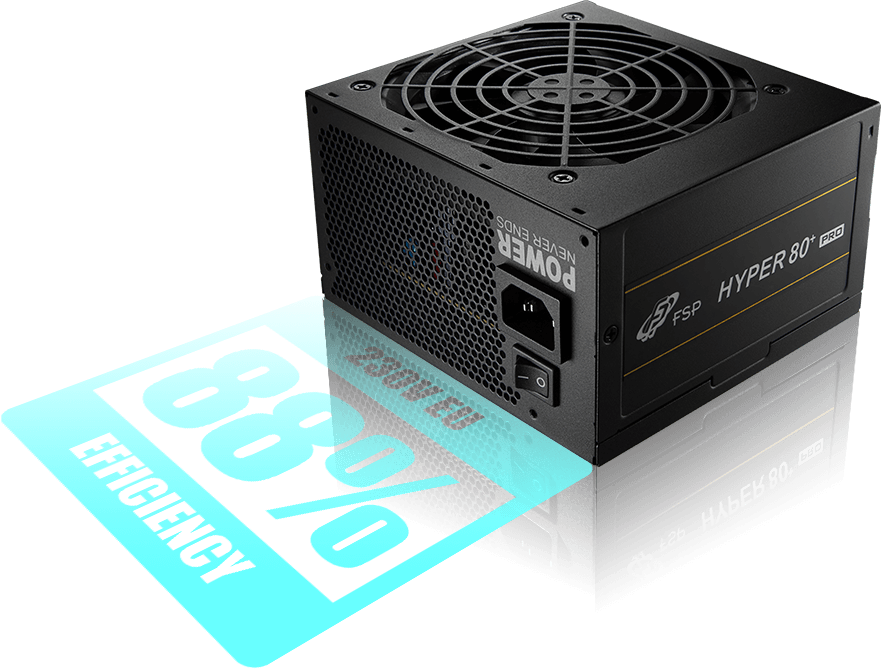

HYPER 80+ PRO series, 80 PLUS® 230V EU Bronze certified, saves energy through its high efficiency up to 88%.

DC-to-DC Module Design

With a 12V SR circuit and the DC to DC structure, HYPER 80+ PRO series ensure you outstanding conversion efficiency and provides stable output voltage.

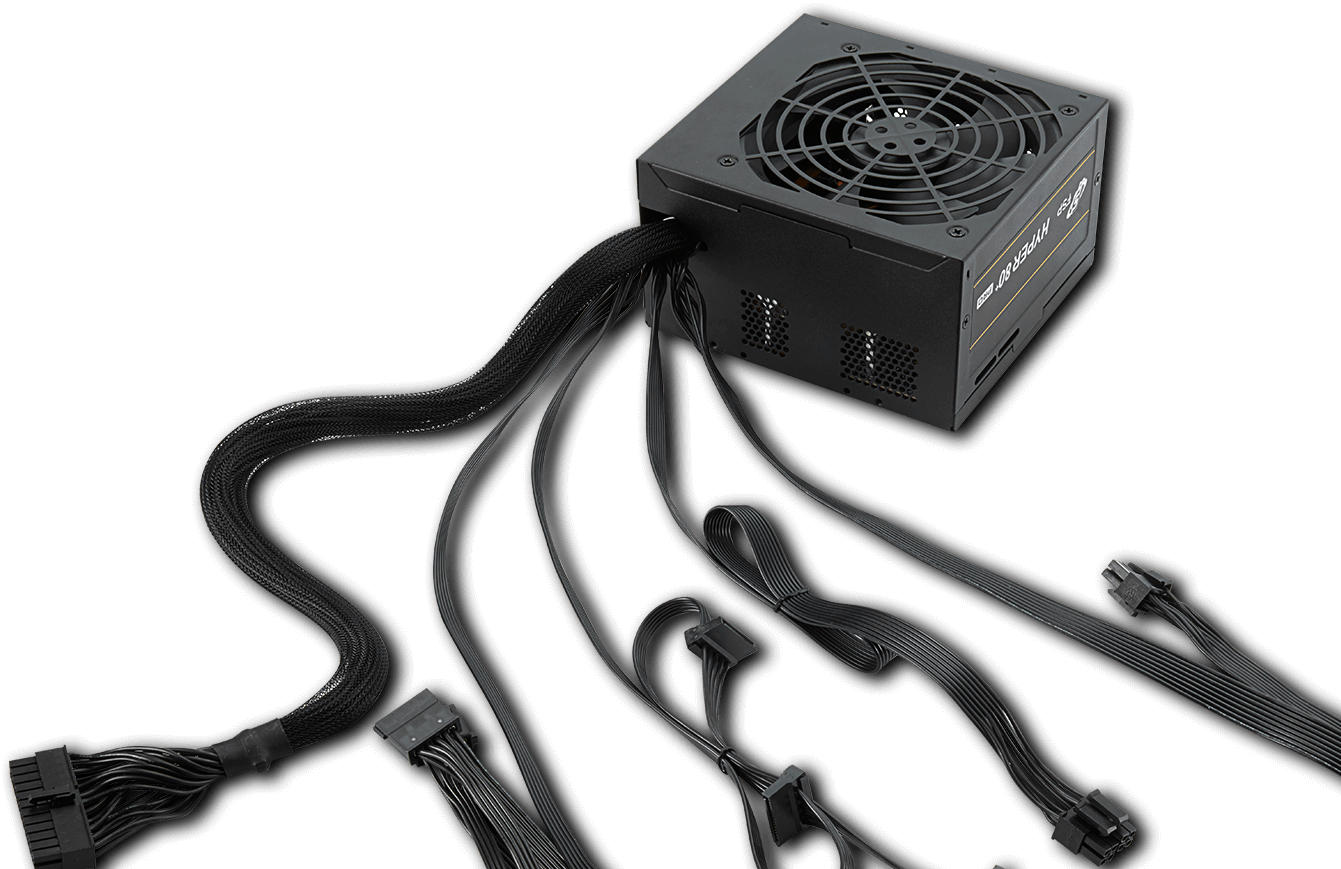

All Black Round Cables

The all black coating round cables give your system a superior look rather so many entry-level power supplies.

Specifications

Model	H3-650
Rated Output Power	650W
Form Factor	ATX12 V2.4
80 PLUS Certification	230V EU Bronze
Input Voltage	200-240V
Input Current	5A
Input Frequency	50-60Hz
PFC	Active PFC
Efficiency	≥88% at typical load
Fan Type	Sleeve Fan, 120mm
Dimensions(L x W x H)	150 x 140 x 86mm
Weight	1.461 kgs
Protection	OCP, OVP, OPP, SCP
