Lumen S36

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
Six ARGB LEDs are yours to command via your motherboard or controller
The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
Compatible with LGA 1700 and AM5

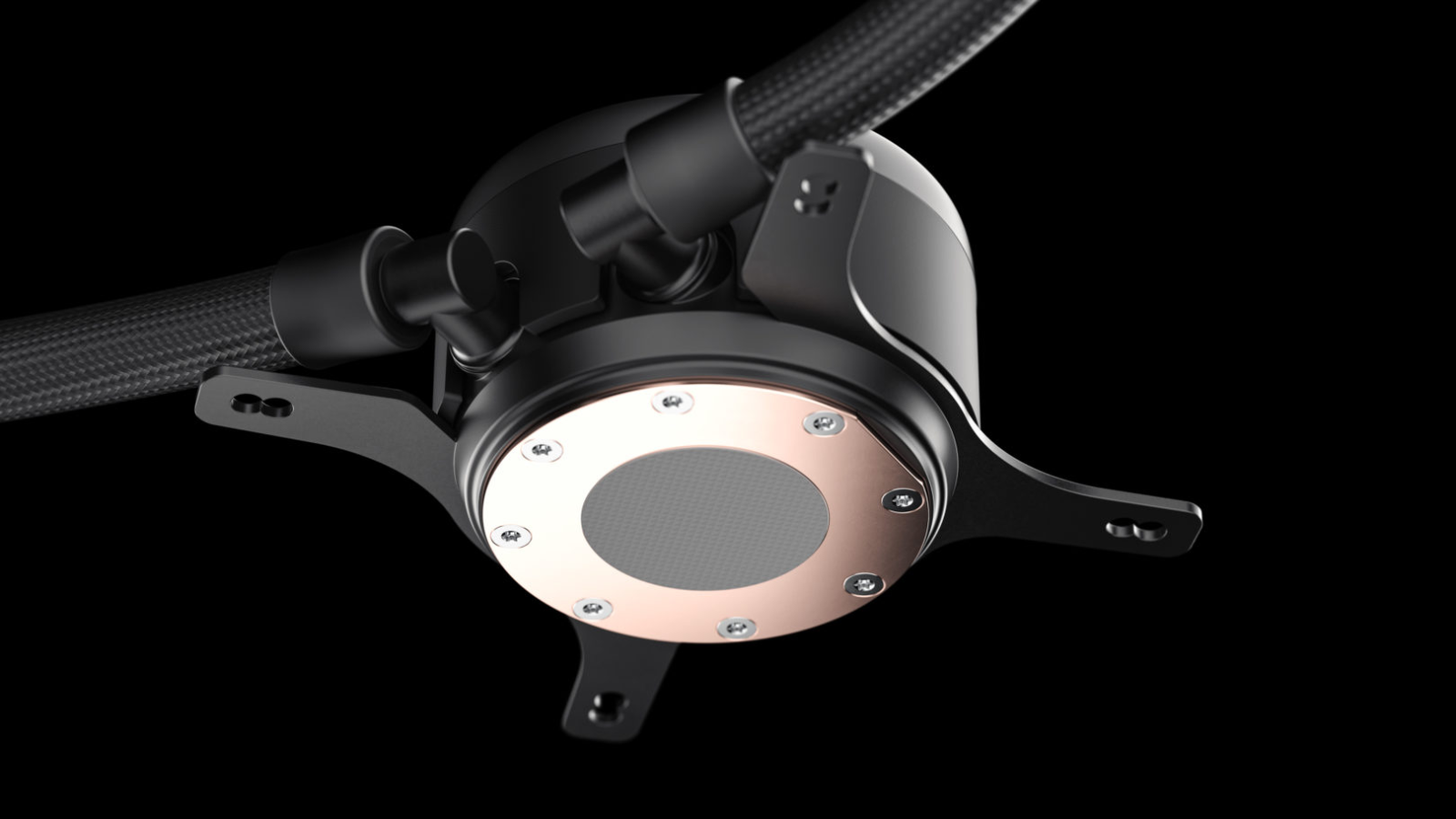

Forget the thermal paste

Thermal paste is pre-applied to ensure a proper and pain-free installation
Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing

Common denominators

Compatible with LGA 1700 and AM5
Supports the most common sockets for both Intel and AMD

General specifications

Sockets supported (Intel)

LGA 1700*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
Sockets supported (AMD)

AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
* Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
Cold plate material

Copper
Thermal paste

Pre-applied
Tube length

400mm
Tube material

Low-permeability rubber with braided nylon sleeve
Fittings, block side

Articulating 90-degree Elbow
Fittings, radiator side

Barbed fitting
Block height

43mm
Block measurements (with fittings)

79 x 67 mm
Block diameter (main block body)

67 mm

Fan specifications

Fan type

Aspect 12 PWM
Rotational speed

500–2000 RPM
Fan bearing

Rifle bearings
Fan PWM control

Yes
Fan acoustical noise

<10–33.2 dBA
Fan maximum air flow

13-56 CFM
Fan maximum static pressure

0.230–2.34 mm H2O
Fan input voltage

12V
Fan maximum input current

0.37A
Fan MTTF

90,000 hours

Pump specifications

Rotational speed

4000 ± 10% RPM
Bearing type

Ceramic
PWM control

No
Acoustical noise (full speed)

22 dBA
Maximum pressure

1.8 mm H2O/ 17.6 kPa / 2.5 PSI
Input voltage

12V DC
Input current (without fans)

0.34 A
MTTF

50 000 hours

Radiator specifications

Radiator dimensions

392 x 120 x 27 mm
Radiator housing material

Aluminum
Radiator fin material

Aluminum
Radiator fan screw threads

6-32

Other

Package contents

CPU Cooler Assembly, 3x Aspect 12 PWM fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable
Package dimensions

448 x 205 x 137 mm
Package weight

2.20kg
