Fractal Design Lumen S36 FD-W-L1-S3601
НазадFractal Design Lumen S36 FD-W-L1-S3601Fractal Design Lumen S36 FD-W-L1-S3601Fractal Design Lumen S36 FD-W-L1-S3601Fractal Design Lumen S36 FD-W-L1-S3601Напред

Водно охлаждане за процесор Fractal Design Lumen S36, съвместимост със сокети Intel 115x/1200/1366/2011/2011-3/2066 & AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2

id 239820 Код: FANCPFRACRALDESIGNFDWL1S3601
  • Модел: Lumen S36
  • Марка: Fractal Design
  • Гаранция: 24 месеца
  • Код на продукта: FD-W-L1-S3601
  • Процесор сокет: Intel / AMD
  • Водно охлаждане: Да
  • Наличност: Стар продукт
    Продукта вече не се предлага Виж подобни предложения Абонирай се за бюлетина

    Печат

    Изпрати на приятел

    ОписаниеХарактеристикиРевюта / Въпроси

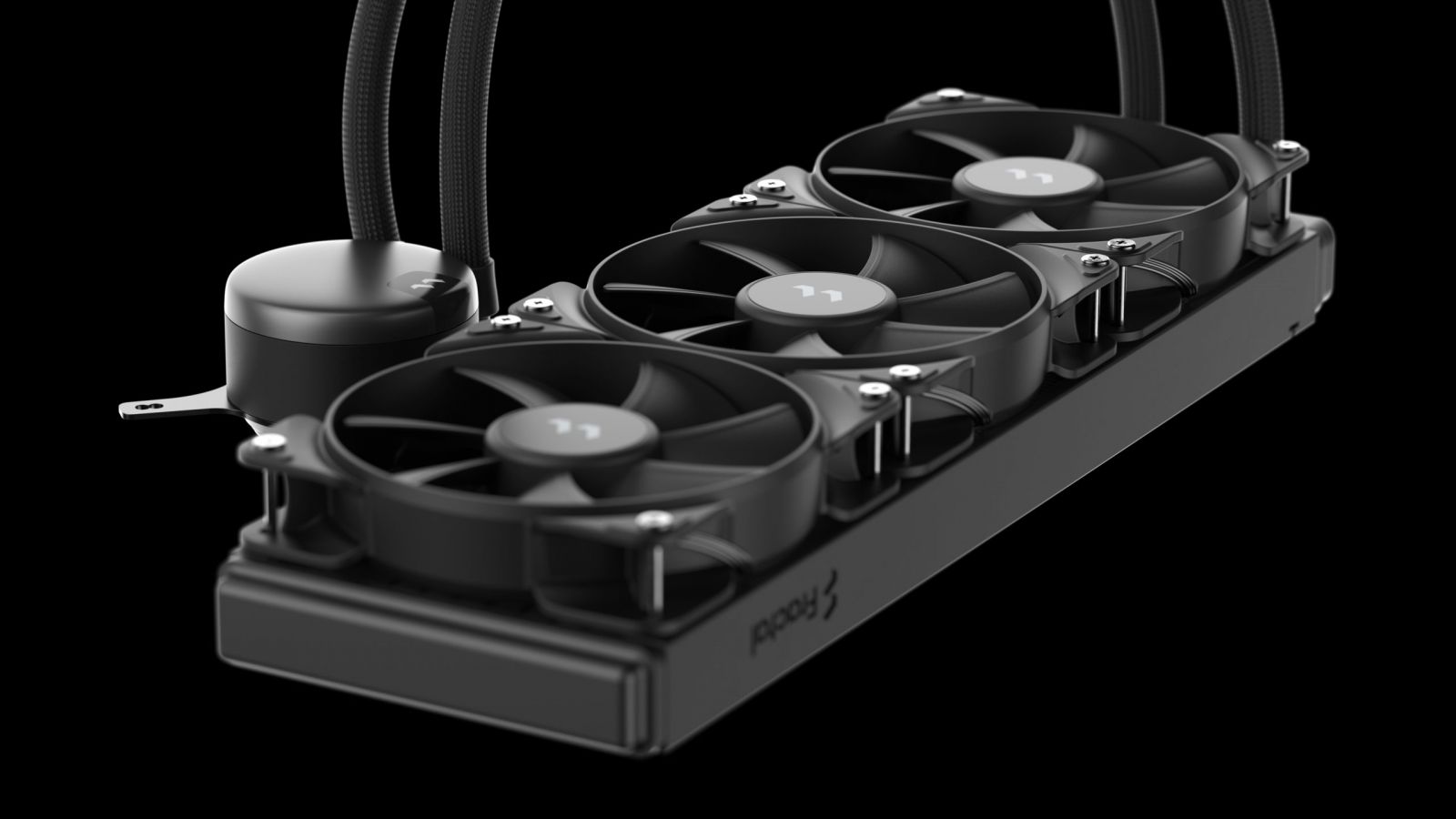

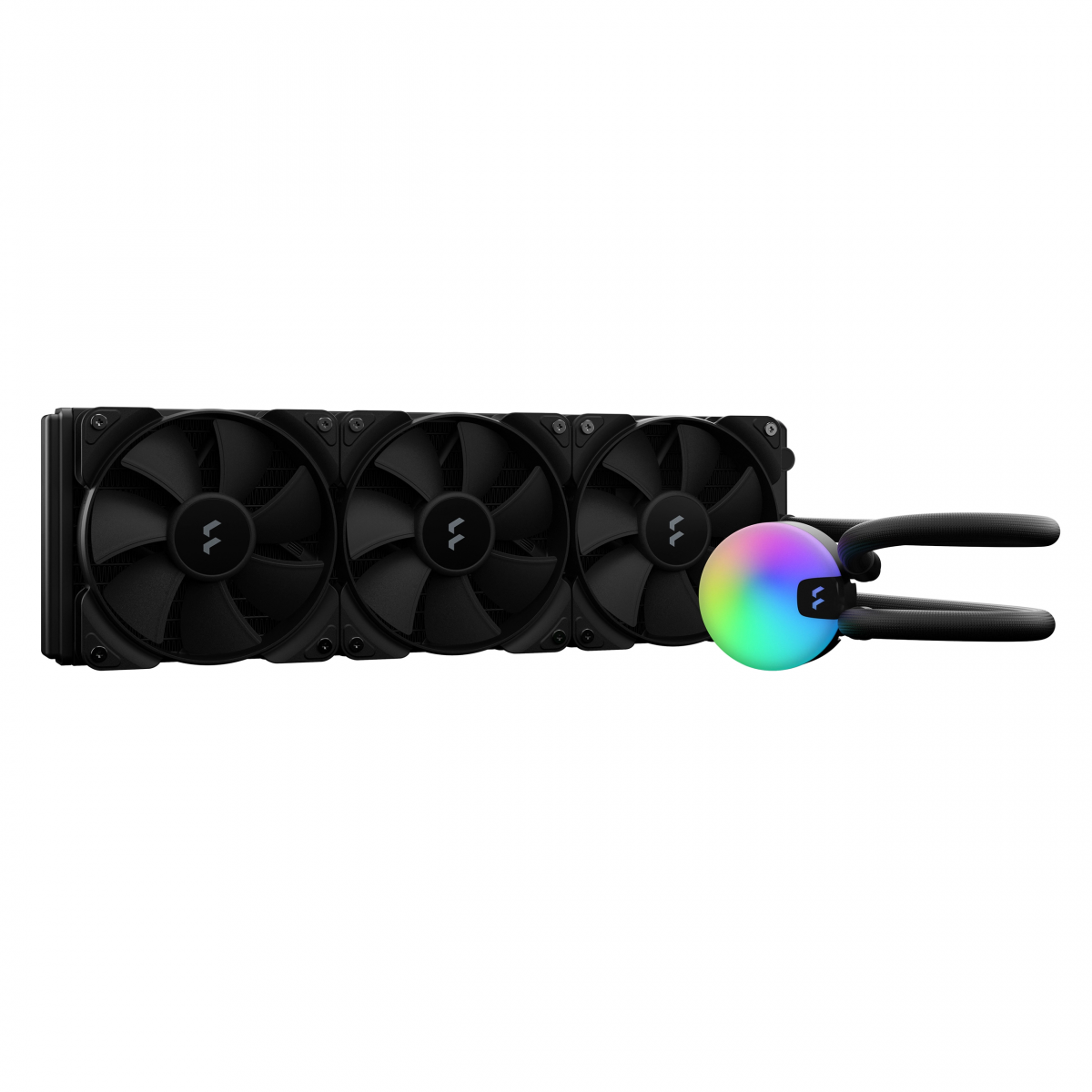

    Fractal Design Lumen S36

    Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

    The right way up

    • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation

    • Low-permeability rubber tubes with braided nylon sleeves



    General specifications

    • Sockets supported (Intel)
      LGA 1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
    • Sockets supported (AMD)
      AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
    • Cold plate material
      Copper
    • Thermal paste
      Pre-applied
    • Tube length
      400mm
    • Tube material
      Low-permeability rubber with braided nylon sleeve
    • Fittings, block side
      Articulating 90-degree Elbow
    • Fittings, radiator side
      Barbed fitting
    • Block height
      43mm
    • Block measurements (with fittings)
      79 x 67 mm
    • Block diameter (main block body)
      67 mm

    Fan specifications

    • Fan type
      Aspect 12 PWM
    • Rotational speed
      500–2000 RPM
    • Fan bearing
      Rifle bearings
    • Fan PWM control
      Yes
    • Fan acoustical noise
      <10–33.2 dBA
    • Fan maximum air flow
      13-56 CFM
    • Fan maximum static pressure
      0.230–2.34 mm H2O
    • Fan input voltage
      12V
    • Fan maximum input current
      0.37A
    • Fan MTTF
      90,000 hours

    Pump specifications

    • Rotational speed
      4000 ± 10% RPM
    • Bearing type
      Ceramic
    • Acoustical noise (full speed)
      22 dBA
    • Maximum pressure
      1.8 mm H2O/ 17.6 kPa / 2.5 PSI
    • Input voltage
      12V DC
    • Input current (without fans)
      0.34 A
    • MTTF
      50 000 hours

    Radiator specifications

    • Radiator dimensions
      392 x 120 x 27 mm
    • Radiator housing material
      Aluminum
    • Radiator fin material
      Aluminum
    • Radiator fan screw threads
      6-32


    JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Процесори Охладители Fractal Design
    Виж всички Процесори Охладители в категорията

    Технически характеристики

    Процесор сокет:  Intel / AMD
    Водно охлаждане:  Да
