Водно охлаждане за процесор Fractal Design Celsius+ S24 Prisma, съвместимост с Intel 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 & AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)

Celsius+ S24 Prisma

Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support.

• Tinted glass pump face with backlit logo and ARGB LED effects

•  Articulating elbow fittings make tubes easier to route and reduces tension on the pump

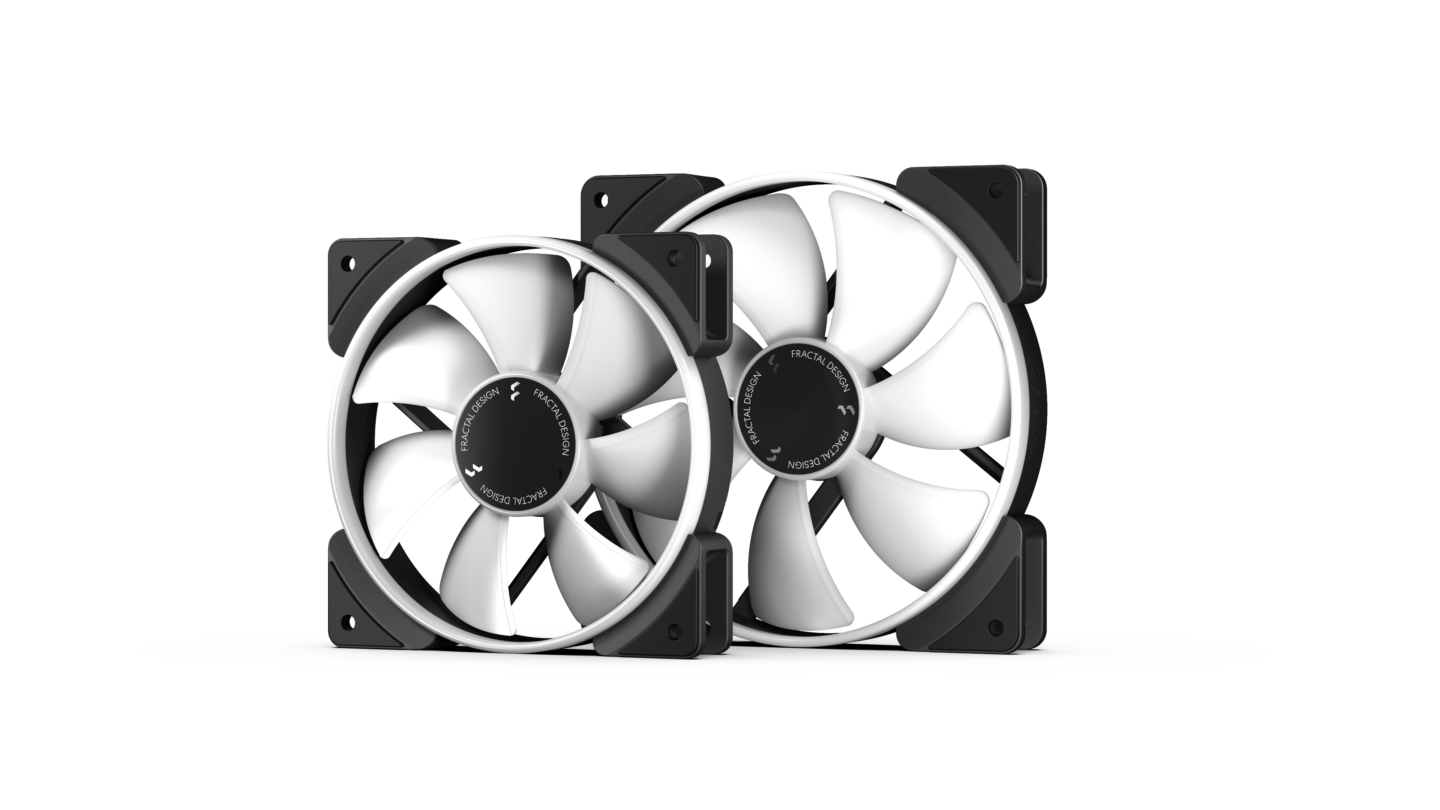

The brilliance of prisma Prisma ARGB PWM fans deliver outstanding airflow with brilliant lighting effects Specially designed fan blades and outer ring produce a uniform glow Optimized fan geometry balances airflow with extra emphasis on static pressure Trip Wire technology reduces blade turbulence LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan
	Get the balance right Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance – and a simple twist of the pump face changes to PWM mode for full user control

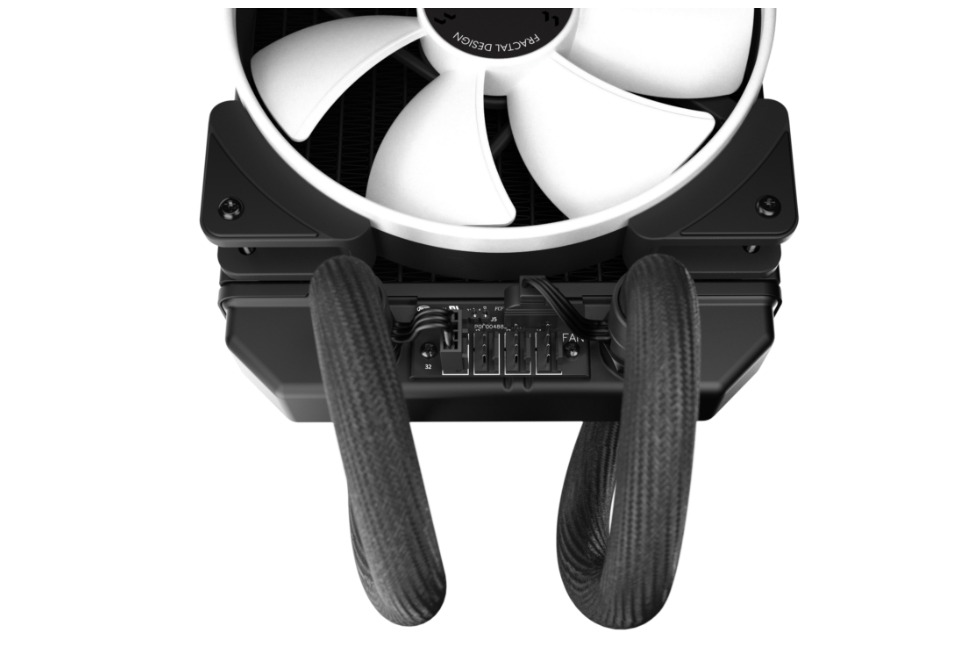

Tidier through technology ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation
	Forget the thermal paste With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation

General specifications
Sockets supported (Intel):  1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
Sockets supported (AMD):  AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)
Coldplate material:  Copper
Thermal paste:  Pre-applied
Tube length:  400 mm
Tube material:  Low-permeability rubber with braided nylon sleeve
Fittings, block side:  Articulating 90-degree elbow
Fittings, radiator side:  Straight rotary
Fan control:  Dual mode (Auto/PWM)

Fan specifications
Fan type:  Prisma AL-12 PWM ARGB
Rotational speed:  500 – 2000 RPM
Bearing:  LLS
PWM control:  Yes
Acoustical noise (full speed):  32.7 dBA
Maximum air flow:  85.71 CFM
Maximum static pressure:  2.78 mm H2O
Input voltage:  12V DC
Maximum input current:  0.18A
MTBF:  100,000 hours

Pump specifications
Rotational speed:  800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C
Bearing type:  Ceramic bearing and shaft
PWM control:  Yes
Acoustical noise (full speed):  20 dBA
Maximum pressure, 50°C:  1.46 mm H2O
Input voltage:  12V DC
Input current (without fans):  0.36A
MTTF:  50,000 hours
Block height:  45 mm
Block measurements (with fittings):  86 x 75 mm
Block diameter (main block body):  62 mm

Radiator specifications
Dimensions:  122 x 31 x 284 mm
Housing material:  Aluminum
Fin material:  Aluminum
Fan screw threads:  6-32
