Водно охлаждане за процесор Fractal Design Celsius+ S24 Dynamic, съвместимост с Intel 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066 & AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)

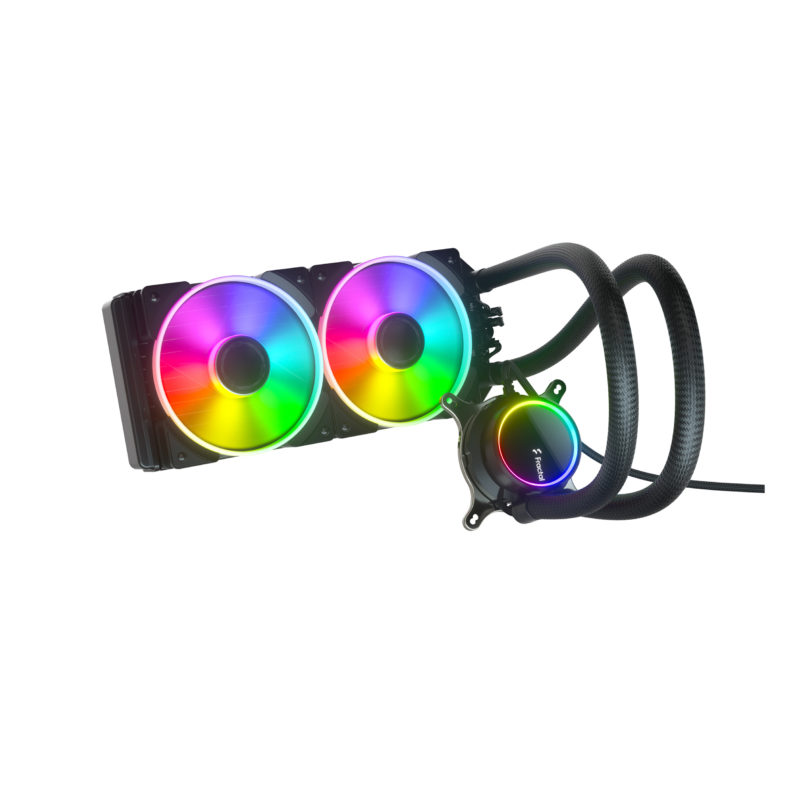

Celsius+ S24 Prisma

Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support.

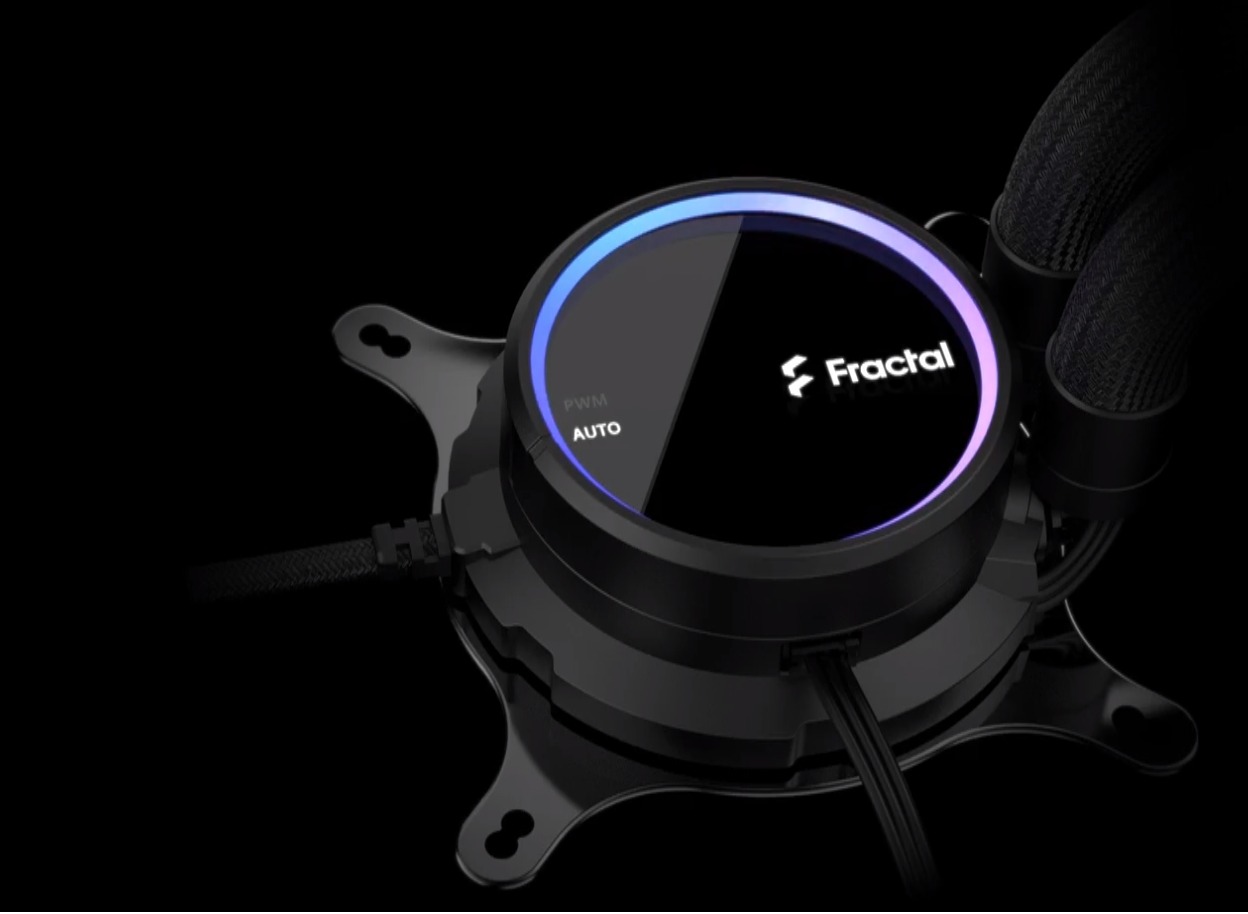

• Tinted glass pump face with backlit logo and ARGB LED effects

•  Articulating elbow fittings make tubes easier to route and reduces tension on the pump

Outstanding airflow High-performance Dynamic PWM fans for excellent airflow and minimal noise Optimized fan geometry balances airflow with extra emphasis on static pressure Strategic blade notches diffuse noise from blade/stator interaction TripWire technology reduces blade turbulence LLS (Long Life Sleeve) fan bearings provide silent operation with a long lifespan
	Get the balance right Our intelligent auto mode dynamically adjusts the fan and pump speeds for optimized silent performance – and a simple twist of the pump face changes to PWM mode for full user control

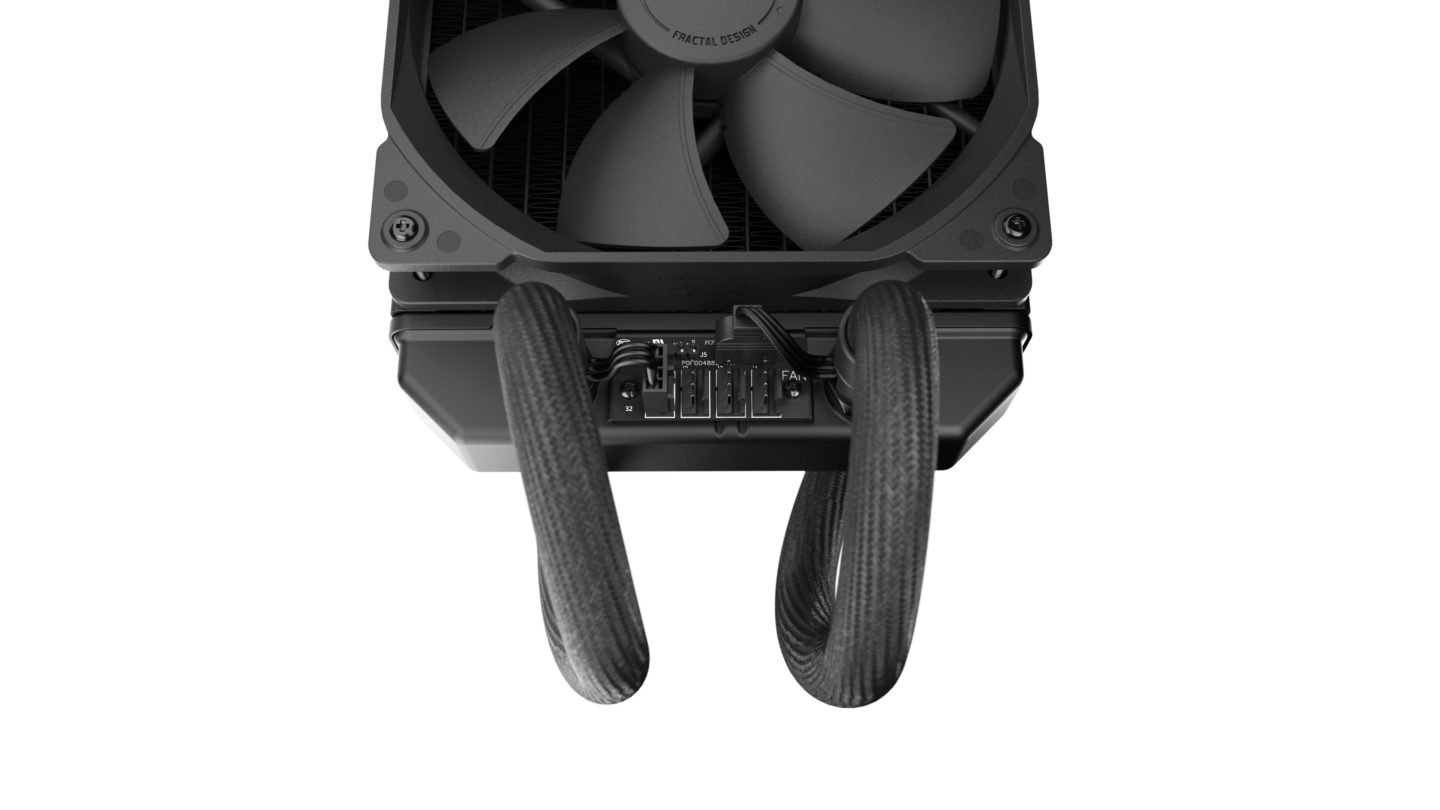

Tidier through technology ARGB-enabled PWM hub places all fan connections directly on the radiator for a clutter-free installation
	Forget the thermal paste With the Celsius+, the thermal paste is pre-applied to ensure a mess-free installation

General specifications
Sockets supported (Intel):  1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
Sockets supported (AMD):  AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)

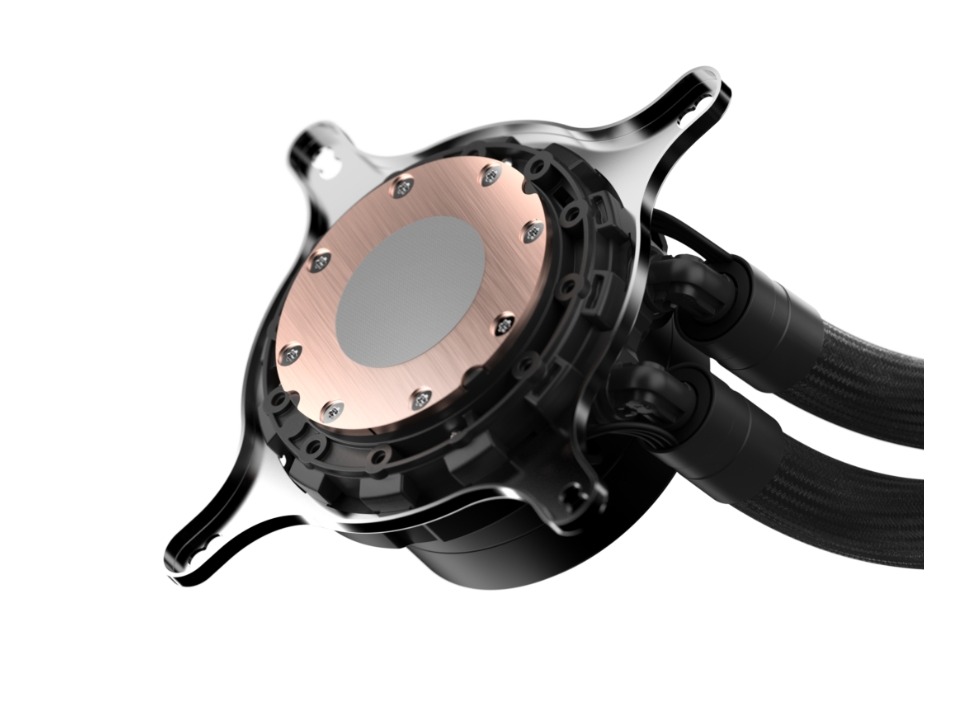

Coldplate material:  Copper
Thermal paste:  Pre-applied
Tube length:  400 mm
Tube material:  Low-permeability rubber with braided nylon sleeve
Fittings, block side:  Articulating 90-degree elbow
Fittings, radiator side:  Straight rotary
Fan control:  Dual mode (Auto/PWM)

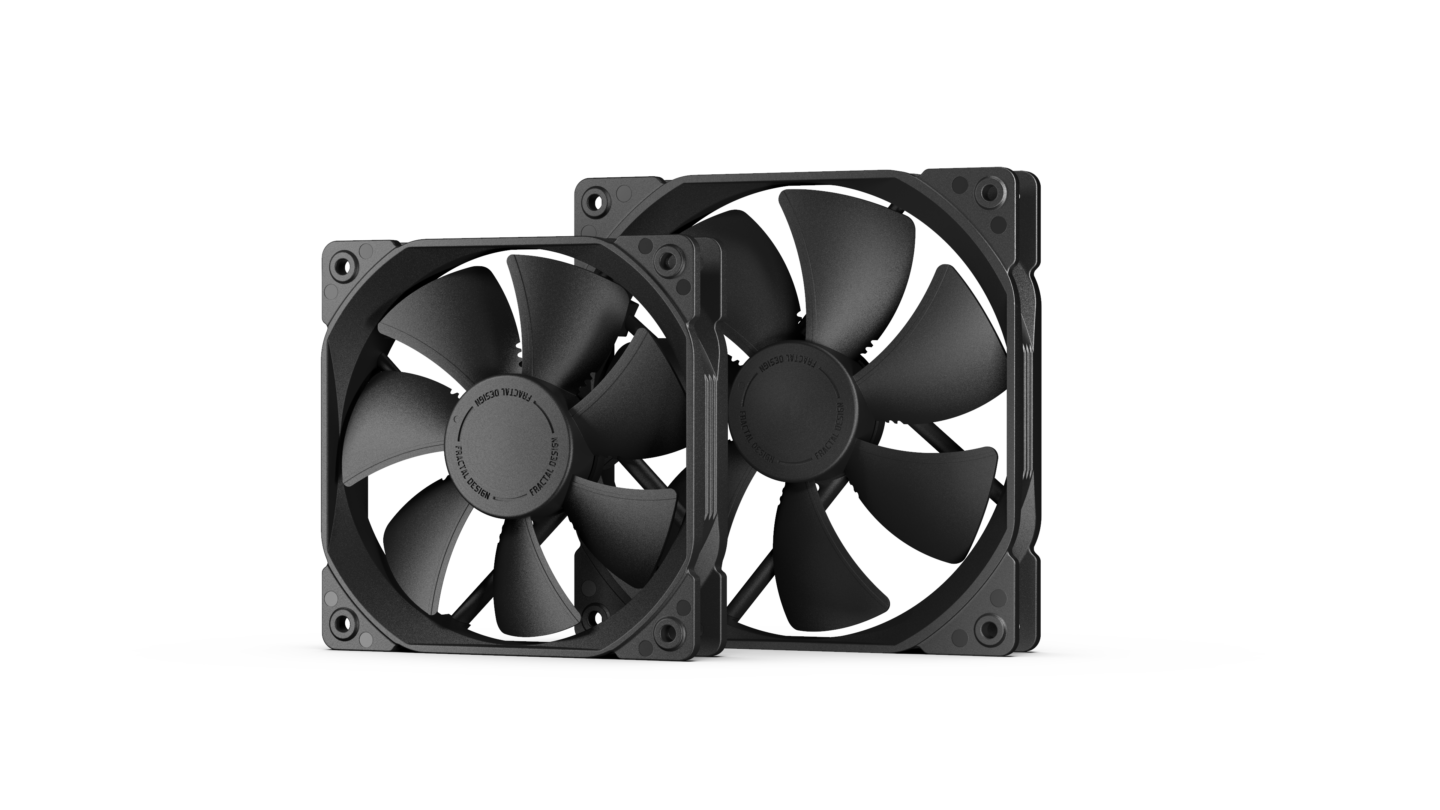

Fan specifications
Fan type:  Dynamic X2 GP-12 PWM
Rotational speed:  500 – 2000 RPM
Bearing:  LLS
PWM control:  Yes
Acoustical noise (full speed): 32.2 dBA
Maximum air flow:  87.6 CFM
Maximum static pressure:  2.3 mm H2O
Input voltage:  12V DC
Maximum input current:  0.2A
MTBF:  100,000 hours

Pump specifications
Rotational speed:  800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C
Bearing type:  Ceramic bearing and shaft
PWM control:  Yes
Acoustical noise (full speed):  20 dBA
Maximum pressure, 50°C:  1.46 mm H2O
Input voltage:  12V DC
Input current (without fans):  0.36A
MTTF:  50,000 hours
Block height:  45 mm
Block measurements (with fittings):  86 x 75 mm
Block diameter (main block body):  62 mm

Radiator specifications
Dimensions:  122 x 31 x 284 mm
Housing material:  Aluminum
Fin material:  Aluminum
Fan screw threads:  6-32
