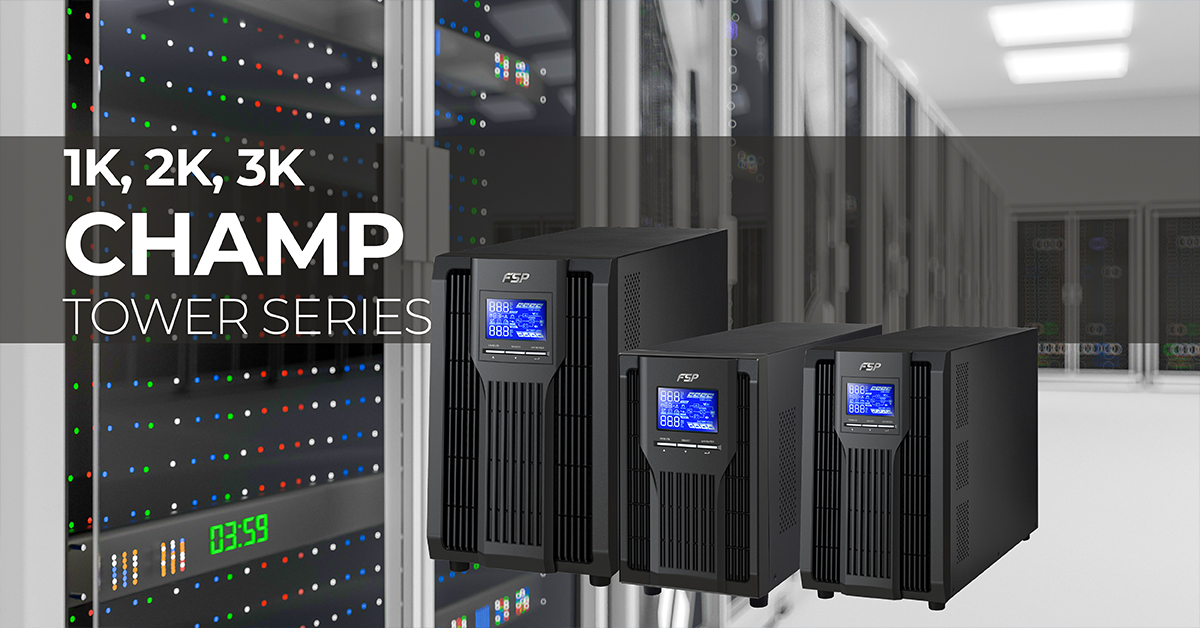

FSP Champ Tower Series is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller. It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.

True double-conversion
Excellent microprocessor control for high reliability
Input power factor correction
Output power factor 0.9
Wide input voltage (120 V – 300 V)
Converter mode available
ECO mode for energy saving
Generator compatible
Charger capacity expansion to 6A for long-run models
Smart SNMP works well with either USB or RS-232 together
Comprehensive LCD display allows easy monitoring and access of UPS status

Specifications

Model	Champ 2K
Input Capacity	2000 VA / 1800 W
Input Voltage Range	100/110/115/120/127VAC or 200/208/220/230/240VAC
Input Frequency Range	40Hz ~ 70 Hz
Output AC Voltage Regulation	± 1%
Output Frequency	50 Hz or 60Hz ± 0.5% (Batt. Mode)
Output Waveform(Batt. Mode)	Pure Sinewave
Transfer Time	0 ms (Typical)
Battery Type & Number	12 V / 9 AH, 4
Battery Typical Recharge Time	4 hours recover to 90% capacity
Weight	17 kg
Noise	Less than 50dBA @ 1 Meter
Dimensions(L x W x H)	397 x 145 x 220 mm
Humidity	20-90 % RH @ 0- 40°C (non-condensing)
