EATON UPS Ellipse PRO 850 USB IEC rack/tower - AC 230 V - 510 Watt - 850 VA - USB - IEC-320-C13 4 Output - 2U - 19inch
General
Device Type: UPS - external
Height (Rack Units): 2U
Rack Size: 19"
Power Device
UPS Technology: Line interactive
Input Voltage: AC 230 V
Input Voltage Range: AC 165 - 285 V
Input Voltage Range (Adjustable): AC 150 - 285 V
Frequency Provided: 50/60 Hz
Frequency Required: 50/60 Hz
Input Connectors: 1 x power IEC 60320 C14
Power Output Connectors Details

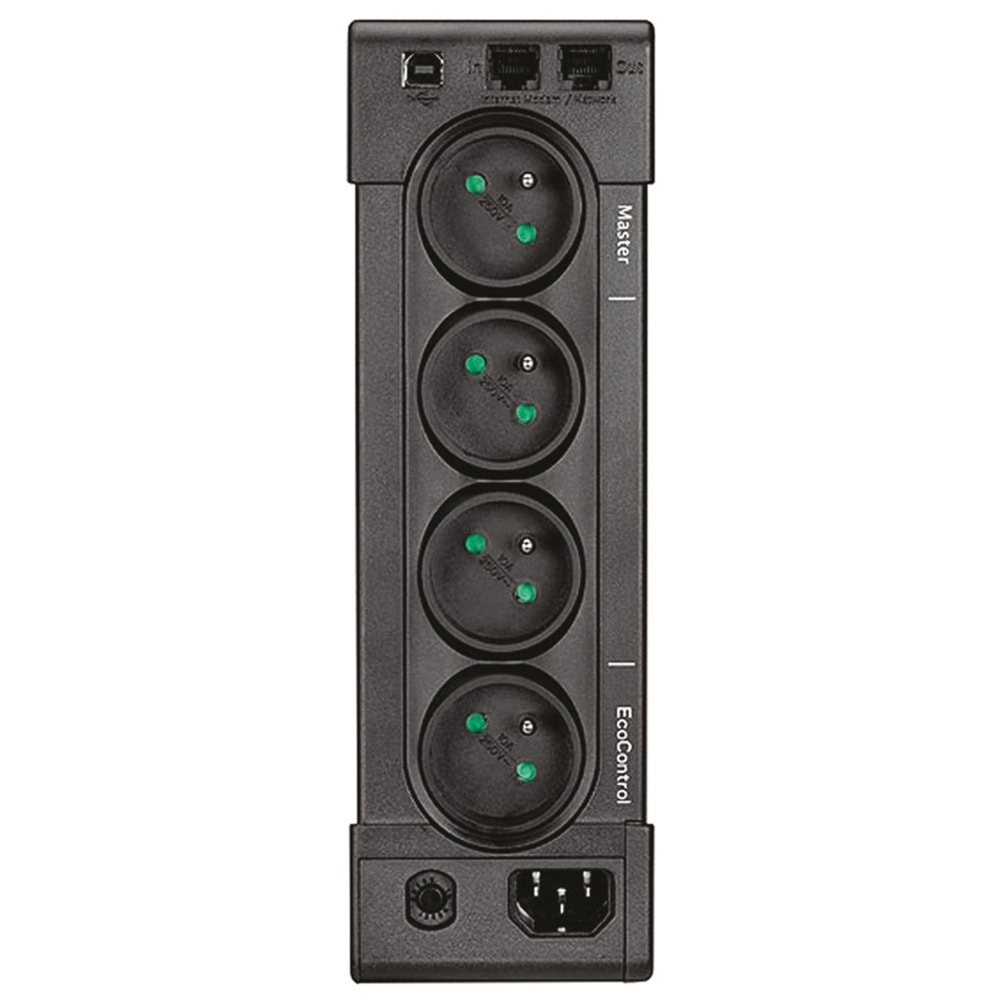

3 x power CEE 7/5 (UPS and surge)
1 x power CEE 7/5 (surge)
Output Voltage AC 220/230/240 V + 15% / - 20% - 50/60 Hz
Power Capacity 510 Watt / 850 VA
Dataline Surge Protection: Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Surge Suppression: Yes
Circuit Protection: Circuit breaker
Battery
Technology: Lead Acid
Capacity: 9 Ah
Run Time (Up To)
9 min at half load
5 min at 70% load
Networking
Remote Management Interface: USB
Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B
Miscellaneous
Cables Included: USB cable - external
Rack Mounting Kit: Optional
Features: Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets
Compliant Standards: CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2
Dimensions & Weight
Width: 8.2 cm
Depth: 28.5 cm
Height: 26 cm
Weight: 7.3 kg
