Name: UPS Eaton 9E 6000i Rack6U 9E6KIR, 6000VA/54000W, On-line, Rack
Brand: Eaton
SKU: UPSEATON9E6KIR
Price: 2356.86 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

Specification	Value
Product Length/Depth	686 mm
Product Height	130 mm
Product Width	440 mm
Product Weight	45.15 kg
Compliances	LVD Directive (CB)EMC DirectiveRoHS DirectiveREACHWEEE DirectivePackaging DirectiveBatteries Directive
Certifications	IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3CEUKCACmUkr
Model Code	Eaton 9E 6000i Rack3U
Auto shutdown function	Yes
Color	Black
Construction type	482.6 mm (19 inch) device
Efficiency at max. load	94
Hot swap power	No
Internal bypass	Yes
Package contents	UPS(2) IEC-IEC output cablesUSB cableRack-mounting kit (rails and brackets)Safety instructionsQuickstart guide
Phase (input)	1
Phase (output)	1
Rack mounting kit	Yes
Battery management	Temperature compensated charging methodAutomatic battery testDeep discharge protection
Battery quantity	15
Battery replacement	Hot-swappable internal batteries and extended battery modules (EBMs)
Battery type	Sealed, lead-acid
Extended battery capability	Yes
Communication	USB port (HID compliant)Serial port (RS232)Mini-terminal block for remote power off
Ethernet interface	No
Expansion slots	One slot for optional communication card
Potential free switch contact	Yes
Software compatibility	Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface	Other

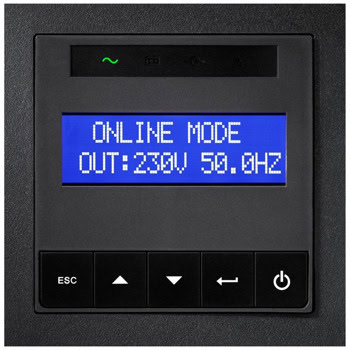

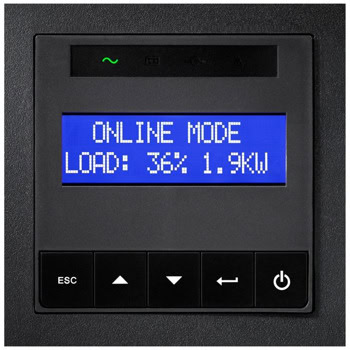

User interface	Multilingual LCD display
Input connection	Hardwired/fixed connection
Input frequency range	40-70 Hz
Input nominal voltage	230V default (200/208/220/230/240V)
Input power factor	>.99
Input voltage range	176-276 V (100-276 V with derating)
Nominal frequency	50/60 Hz
Feed type	1
Output nominal voltage	230V default (200/208/220/230/240V)
Output power factor	0.9
Output voltage range	200/208/220/230/240 V +/- 1%
Output waveform	Sine wave

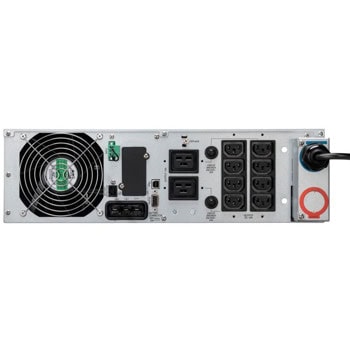

Receptacle	(8) C13, (2) C19, Hardwired
Topology	Online/Double-conversion
VA rating	6000 VA
Voltage distortion output (linear load) - max	2
Wattage	5400 W
Altitude	3000 m
Noise level	<45 dB at 1 meter
Relative humidity	0-95% non-condensing
Temperature range	0° to 40°C (32° to 104°F)
