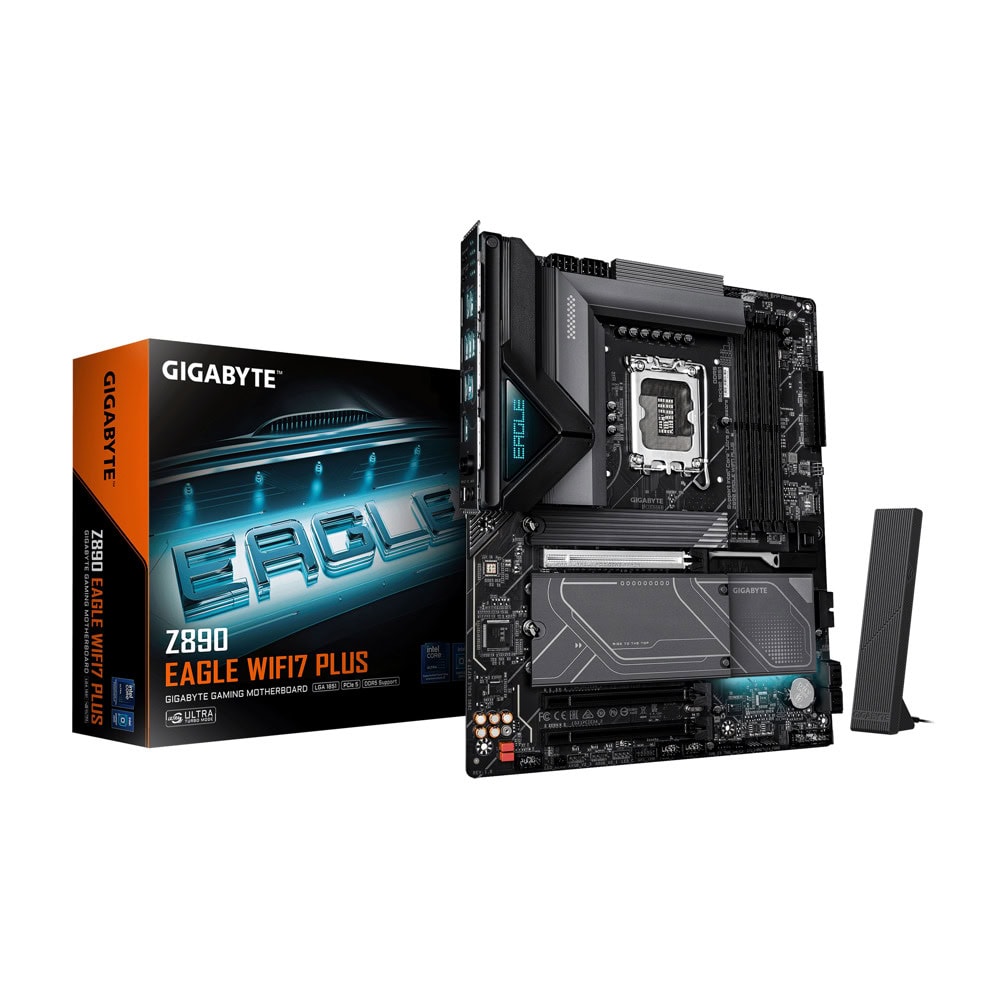

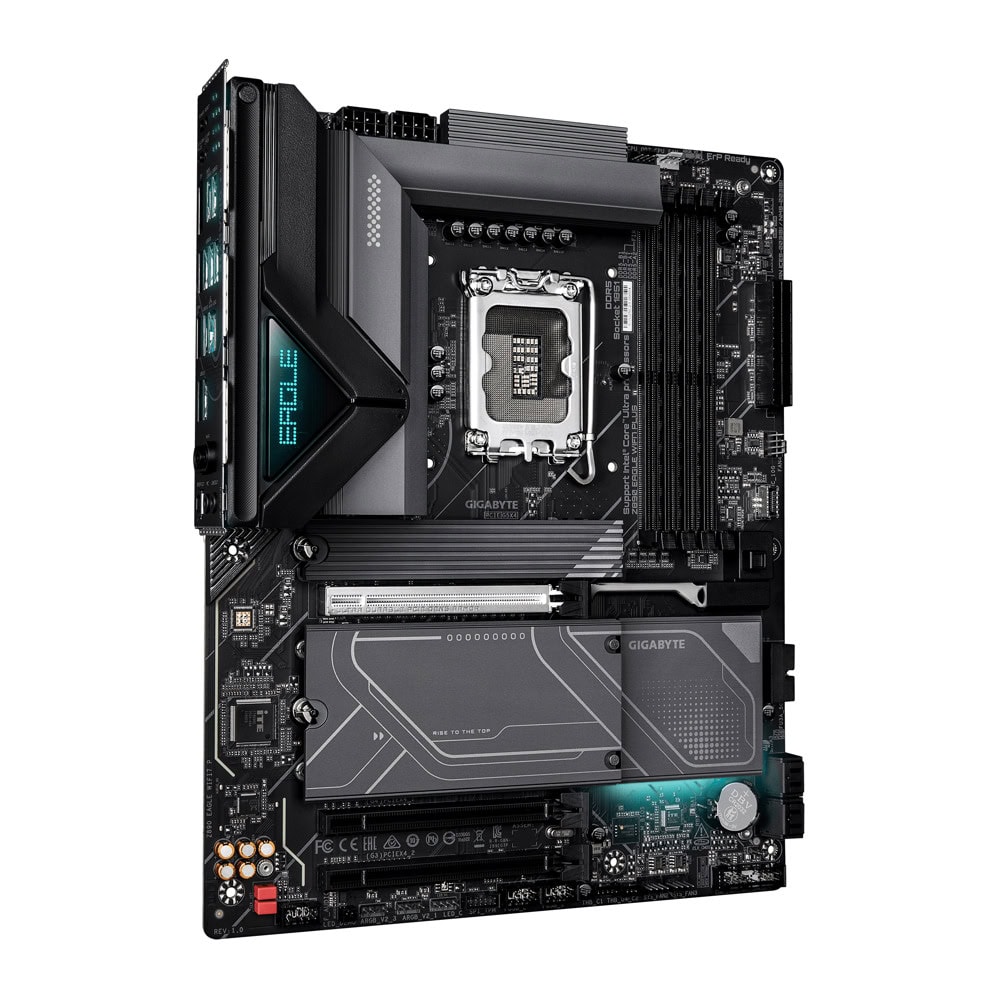

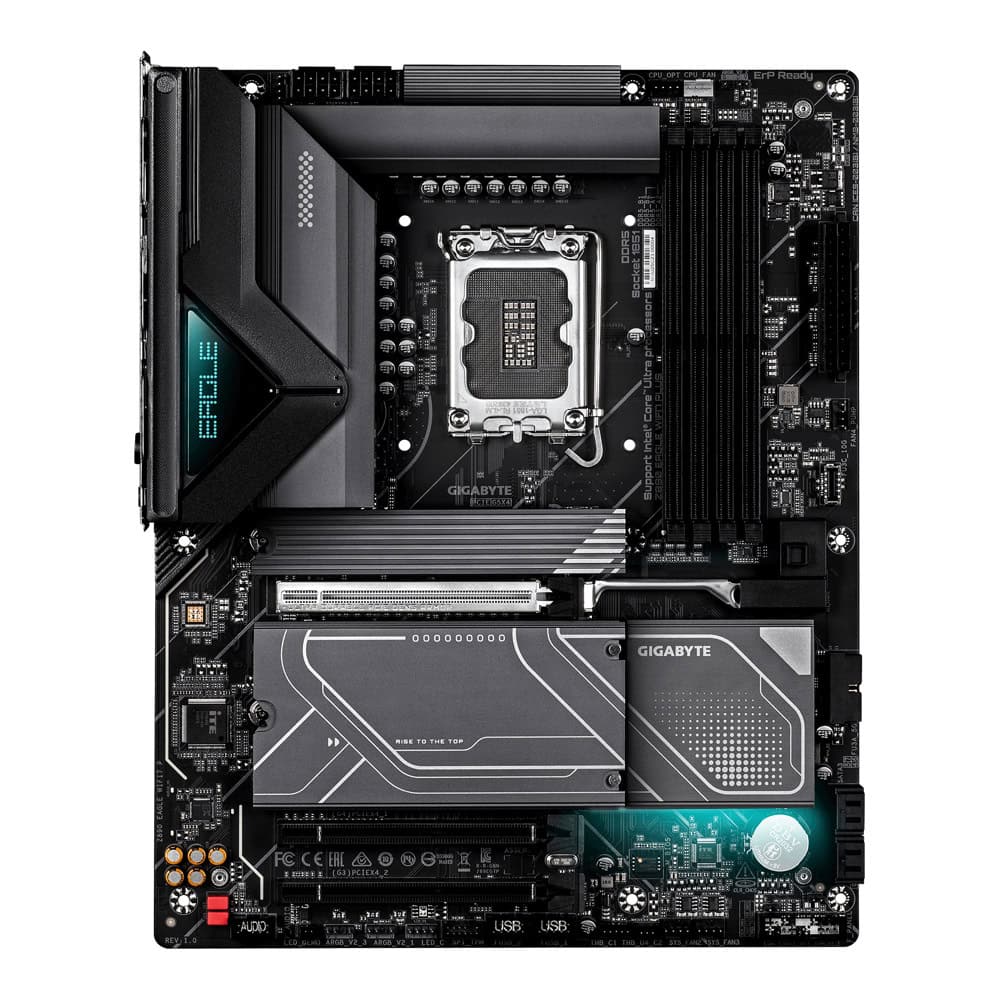

Дънна платка Gigabyte Z890 Eagle WiFi7 Plus, Z890, LGA1851, DDR5, PCI-E 5.0 (Thunderbolt&DP), 4x SATA 6Gb/s, 4x M.2, 2x USB 3.2 Gen 2, 2.5G LAN, Wi-Fi 7, Bluetooth 5.4, ATX

Ultra Turbo Mode
Unlock the Hidden performance

Utilizing proprietary deep-system optimizations to extract maximum potential from your Intel Core Ultra 200S Series (K-SKUs) with one-click.

Performance Boost up to
40%

* Performance may varies by CPU and DRAM condition.

- LV1 Intel 200S Boost: Default-enabled for instant gaming performance through precision-tuned overclocking.
- LV2 Turbo Mode: Optimized core curves and memory acceleration unlock breakthrough FPS gains.
- LV3 Extreme Mode: Maximum aggression to fully unleash hidden performance for elite gaming.

* Note: Utilizing advanced performance features or modifying clock frequencies/voltages by LV2 Turbo Mode/ LV3 Extreme Mode may affect product warranties and system stability, security, performance, and component lifespan.


Specifications

CPU:
LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset:
Intel Z890 Express Chipset

Memory:
Support up to DDR5 9466+MT/s (OC)
4 x DDR5 DIMM slots, Dual Channel
Max. Capacity 256 GB
Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Supports Intel Extreme Memory Profile (XMP) memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics:
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
(Graphics specifications may vary depending on CPU support.)

Audio:
Realtek ALC1220 CODEC
* The back panel line out jack supports DSD audio.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

LAN:
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module:
Intel Wi-Fi 7 BE202 (BE200NGW M)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
*** Bluetooth version may change with updates. See the Wi-Fi chip vendor’s website for details.

Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)

Storage Interface:
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB:
CPU:
- 1 x USB4 USB Type-C port on the back panel
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors:
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only)
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

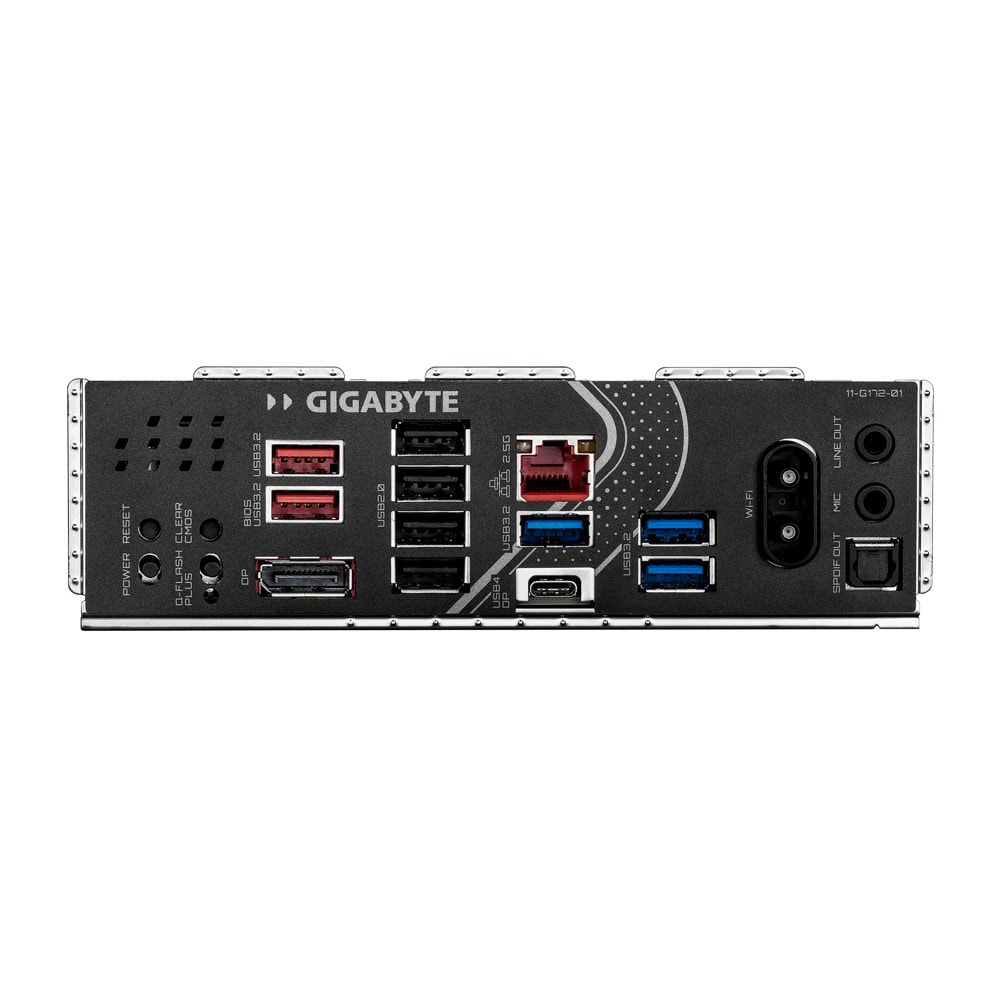

Back Panel Connectors:
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x USB4 USB Type-C port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
2 x audio jacks
1 x optical S/PDIF Out connector
(Note) Actual support may vary by CPU.

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS:
1 x 512 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Operating System:
Support for Windows 11 64-bit

Form Factor:
ATX Form Factor; 30.5cm x 24.4cm
