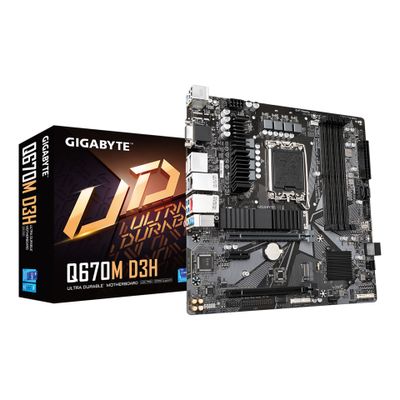

Name: Дънна платка Gigabyte Q670M D3H - motherboard - micro ATX - LGA1700 Socket - Q670
Availability: OutOfStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	Micro ATX
Chipset Type	Intel Q670
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed	5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 4000 MHz, 4800 MHz
Processor Socket	LGA1700 Socket
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 1 x parallel - header, 1 x Thunderbolt - header, 1 x USB-C Gen 1 - header, 2 x USB 3.2 Gen 1 - header
RAM
Features	Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size	128 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio	High Definition Audio (8-channel)
Работа в мрежа
Network	2.5 Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 1 x M.2 socket (2280 M.2 Key M slot), 1 x M.2 socket (2280/22110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode)
Интерфейси
Storage Interfaces	PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 5
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 1
Storage Ports	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)	1 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)	1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Софтуер
Software Included	Norton Internet Security
Размери и Тегло
Width	24,4 cm
Depth	24,4 cm
