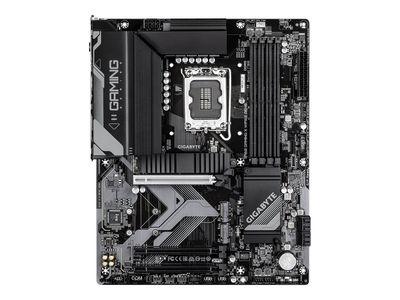

Name: Дънна платка Gigabyte B760 GAMING X WIFI6E GEN5 - motherboard - ATX - LGA1700 Socket - B760
Price: 205.33 EUR
Availability: InStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	ATX
Chipset Type	Intel B760
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed	5600 MT/s, 4800 MT/s, 4400 MT/s, 5200 MT/s
Processor Socket	LGA1700 Socket
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features	Intel Extreme Memory Profiles (XMP), Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size	256 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio	High Definition Audio (8-channel)
Работа в мрежа
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Network	2.5 Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 2 x PCIe 3.0 x16 (x1 mode), 1 x PCIe 5.0 x16, 3 x M.2 socket (2280/22110 M.2 Key M slot), 4 x DIMM 288-pin
Интерфейси
Storage Interfaces	PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1
Storage Ports	4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)	1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 5 x USB 2.0
USB / FireWire Ports Configuration (Headers)	1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Софтуер
Software Included	GIGABYTE Control Center, Norton Internet Security (OEM Version)
Размери и Тегло
Width	30,5 cm
Depth	24,4 cm
