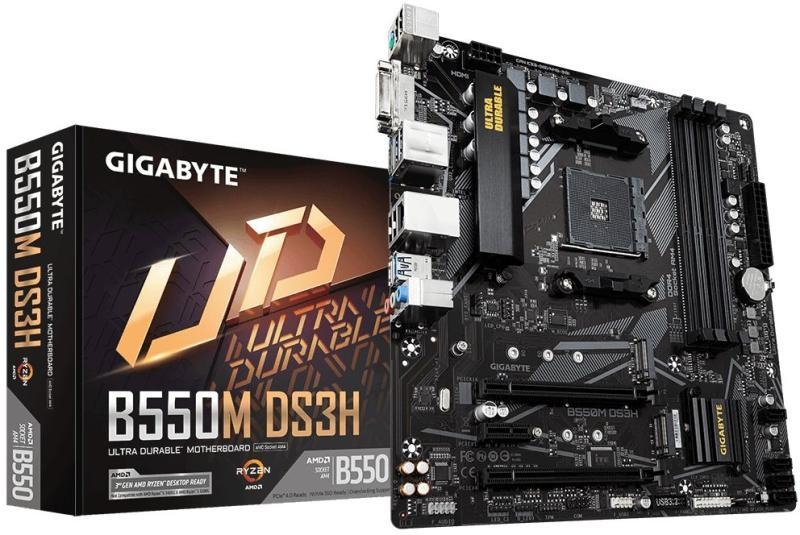

Дънна платка GIGABYTE B550M DS3H, Socket AM4, DDR4
Икона в кампания
empty image 1empty image 2empty image 3

Дънна платка GIGABYTE B550M DS3H, Socket AM4, DDR4

id s2619328
  • Наличност: Не е наличен
    Продукта вече не се предлага Абонирай се за бюлетина
    Описание

    Maximum number of SMP processors: 1

    Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen 5

    Processor manufacturer: AMD Processor socket: Socket AM4

    Maximum resolution: 4096 x 2160 pixels

    Maximum graphics card memory: 16000 MB

    HDCP: Yes

    Motherboard form factor: micro ATX

    PC health monitoring: Fan, Voltage, Temperature

    Motherboard chipset: AMD B550

    Audio chip: Realtek ALC887

    Motherboard chipset family: AMD Audio output channels: 7.1 channels

    Windows operating systems supported: Windows 10 x64

    Memory slots type: DIMM

    Supported memory types: DDR4-SDRAM

    Supported memory clock speeds: 3333, 2933, 3600, 4733 MHz, 4000, 2400, 3200 MHz, 4600, 2667, 4400, 2133

    Maximum internal memory: 128 GB

    Number of memory slots: 4

    Memory channels: Dual-channel

    Unbuffered memory: Yes

    Width: 244 mm

    Depth: 244 mm

    Wi-Fi: No

    Ethernet LAN: Yes

    Ethernet interface type: Gigabit Ethernet

    USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

    ATX Power connector (24-pin): Yes

    TPM connector: Yes

    CPU fan connector: Yes

    12V power connector: Yes

    Front panel audio connector: Yes

    Number of SATA III connectors: 4

    Serial port headers: 1

    Number of chassis fan connectors: 2

    Front panel connector: Yes

    USB 2.0 connectors: 1

    BIOS type: UEFI AMI

    Desktop Management Interface (DMI) version: 2.7

    Clear CMOS jumper: Yes

    Cables included: SATA

    Drivers included: Yes R

    AID levels: 0, 1, 10

    Supported storage drive types: HDD & SSD

    Supported storage drive interfaces: Serial ATA III

    PS/2 ports quantity: 1

    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

    USB 2.0 ports quantity: 4

    HDMI ports quantity: 1

    HDMI version: 2.1

    DVI-D ports quantity: 1

    Ethernet LAN (RJ-45) ports: 1

    PCI Express x1 (Gen 3.x) slots: 1

    Number of M.2 (M) slots: 2

    PCI Express x16 slots: 2
