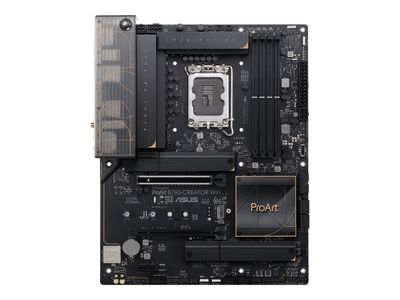

Name: Дънна платка ASUS PROART B760-CREATOR WIFI - motherboard - ATX - LGA1700 Socket - B760
Availability: OutOfStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	ATX
Chipset Type	Intel B760
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC
Processor Socket	LGA1700 Socket
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector, 6-pin PD power connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x USB-C Gen 2x2 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, Thunderbolt - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features	Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size	192 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio	High Definition Audio (8-channel)
Работа в мрежа
Network	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2, Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 1 x PCIe 5.0 x16, 3 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16 (x4 mode)
Интерфейси
Storage Interfaces	PCIe 4.0 -connectors: 2 x M.2, PCIe 3.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage	Serial ATA-600 (RAID), M.2 socket
RAID Features	Intel Rapid Storage Technology
USB / FireWire	USB 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
Storage Ports	4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)	1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)	1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Софтуер
Software Included	ASUS ProArt Creator Hub, ASUS AURA Creator, ASUS Control Center Express, MyAsus, CreationFirst, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), ASUS CPU-Z, ASUS AI Suite III, WinRAR
Размери и Тегло
Width	30,5 cm
Depth	24,4 cm
