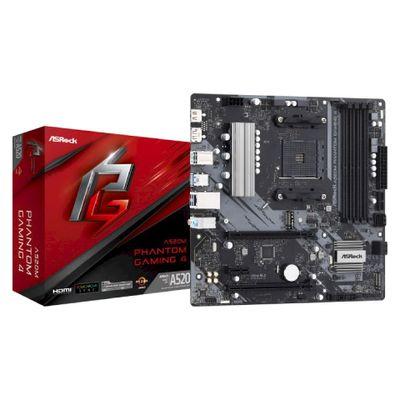

Name: Дънна платка ASRock A520M Phantom Gaming 4 - motherboard - micro ATX - Socket AM4 - AMD A520
Availability: OutOfStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	Micro ATX
Compatible Processors	Ryzen
Chipset Type	AMD A520
Supported RAM Technology	DDR4 SDRAM
Supported RAM Integrity Check	Non-ECC, ECC
Supported RAM Speed	3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.)
Processor Socket	Socket AM4
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header
RAM
Features	Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size	128 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio Codec	Realtek ALC887/ALC897
Audio	High Definition Audio (8-channel)
Работа в мрежа
Network Controller	Realtek RTL8111H
Network	Gigabit Ethernet
Слотове за разширение
Expansion Slots	1 x CPU, 1 x PCIe 3.0 x16, 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x2 mode)
Интерфейси
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x M.2, PCIe 3.0 -connectors: 1 x Ultra M.2
Storage	Serial ATA-600 (RAID), M.2 socket, Ultra M.2 socket
USB / FireWire	USB 3.2 Gen 1
Storage Ports	4 x SATA-600 (RAID), 1 x M.2, 1 x Ultra M.2
USB / FireWire Ports Configuration (Active)	4 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)	2 x USB 3.2 Gen 1 + 4 x USB 2.0
Софтуер
Software Included	ASRock Polychrome SYNC, ASRock A-Tuning, Antivirus (Trial version), Drivers & utilities, Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN
Размери и Тегло
Width	24,4 cm
Depth	24,4 cm
Обслужване и поддръжка
Type	3-year warranty
