Проектор Dell Short Throw Projector S320 (210-40929), 3D Ready, DLP, XGA, 2200:1, 3000lm, HDMI, mini USB, RS232

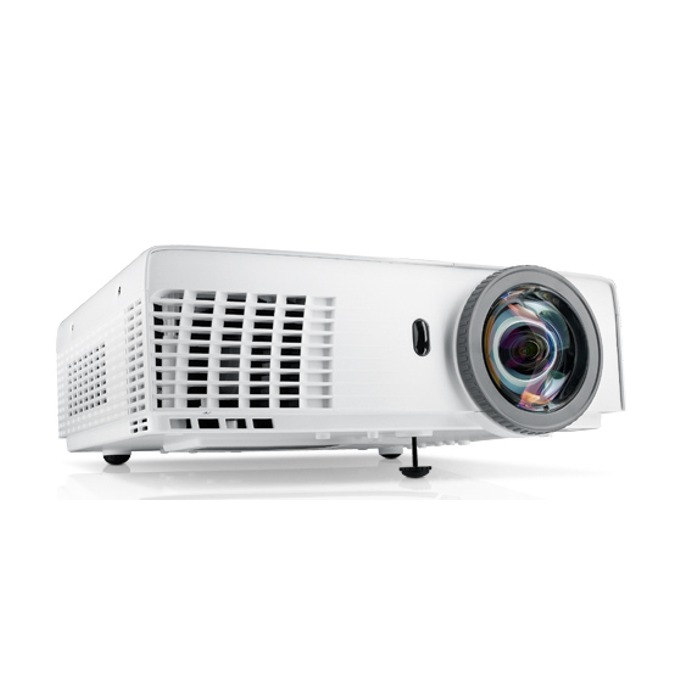

Dell Short Throw Projector S320 (210-40929)

Captivate with vibrant multimedia.


Inspire audiences with vivid 3D1 and shadow-free video projections. The short-throw S320 projector offers optional interactive and wireless2 capability.

- Big images in small spaces: Place the S320 as close as 16" (40 cm) to the projection surface. Short-throw projection enables shadow-free images.
- 3D capability: Amaze your audience with the 3D-capability of the S320.
- Interactive and wireless options: Add optional interactivity, wireless connectivity and network management features now or in the future.

Specifications:

PROJECTION

Brightness:
3000 ANSI Lumens (Max.)

Contrast Ratio:
2,200:1 Typical (Full On/Full Off)

Native Resolution:
XGA (1024 x 768)

Aspect ratio:
4:3

Uniformity:
80% Typical (Japan Standard - JBMA)

Projector Lens:
F-Stop: F/2.8; Effective focal length, f=7.26 mm; Fixed lens, Digital zoom only

Lens Offset Ratio: 115% ± 5%

Throw Ratio: 0.626 (wide and tele)

Projection Distance:
1.31 ft ~ 12.5 ft (0.4m ~ 3.82m)

Diagonal Screen Size:
31.45" ~ 300" (0.8m ~ 7.62m)

Displayable Colors:
Up to 1.07 billion


I/O CONNECTORS

Power:
1x AC power input socket

VGA input:
2x 15-pin D-sub connector for analog RGB/Component input signals

VGA output:
1x 15-pin D-sub connector for VGA-A loop-through

S-Video input:
1x standard 4-pin mini-DIN S-Video connector for Y/C signal

Composite video input:
1x Yellow RCA jack for CVBS signal

HDMI Input:
1x HDMI connector for supporting HDMI 1.4a (HDCP compliant)

Analog audio input:
1x 3.5mm stereo mini phone jack

Variable audio output:
1x 3.5mm stereo mini phone jack

Mini USB port:
1x mini USB-B slave for remote support and optional interactive pen

RS232 port:
1x 9-pin D-Sub for RS232 communication


VIDEO COMPATIBILITY

Composite video / S-Video input:
NTSC [J, M, 4.43), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

Component Video via VGA input:
480i/p, 576i/p, 720p, 1080i

HDMI Input:
480i/p, 576i/p, 720p, 1080p


AUDIO

Built-in speaker:
1x 5W RMS


LAMP
Lamp Type:
Philips 240W user-replaceable lamp

Lamp life:
Standard: Up to 3,000 hours4 of lamp life in Normal Mode / up to 4,000 hours4 of lamp life in Eco-Mode
With Image Care: Up to 4,000 hours4 of lamp life in Normal Mode / up to 5,000 hours4 of lamp life in Eco-Mode


NOISE OUTPUT
Noise level:
35 dB(A) Normal Mode, 31 dB(A) Eco-Mode

KEYSTONE CORRECTION
Manual Vertical +37° / -40°

SIZE AND WEIGHT
Dimensions (W x D x H):
11.3" x 8.7" x 3.6" (288mm x 220mm x 92.0mm)
Weight:
7.0 lbs (3.18 kg)

SECURITY
Kensington lock slot (security cable sold separately)
Password Protection


Environmental and Regulatory

ELECTRICAL
Power Supply:
Universal AC 100-240V 50-60Hz with PFC input

Power Consumption:
Normal Mode: 305W ± 10% @ 110Vac
Eco-Mode: 255W ± 10% @ 110Vac
Power-Saving Mode: ≤15W (optional wireless & optional network on)
Standby Mode: ≤0.5W (VGA OUT, optional network, & optional wireless off)

ENVIRONMENTAL
Operating Temperature:
5°C ~ 35°C (41°F ~ 95°F)
Humidity:
80% Maximum
Storage Temperature:
0°C ~ 60°C (32°F ~ 140°F)
Humidity:
90% Maximum
Shipping Temperature:
-20°C ~ 60°C (-4°F ~ 140°F)
Humidity:
90% Maximum
