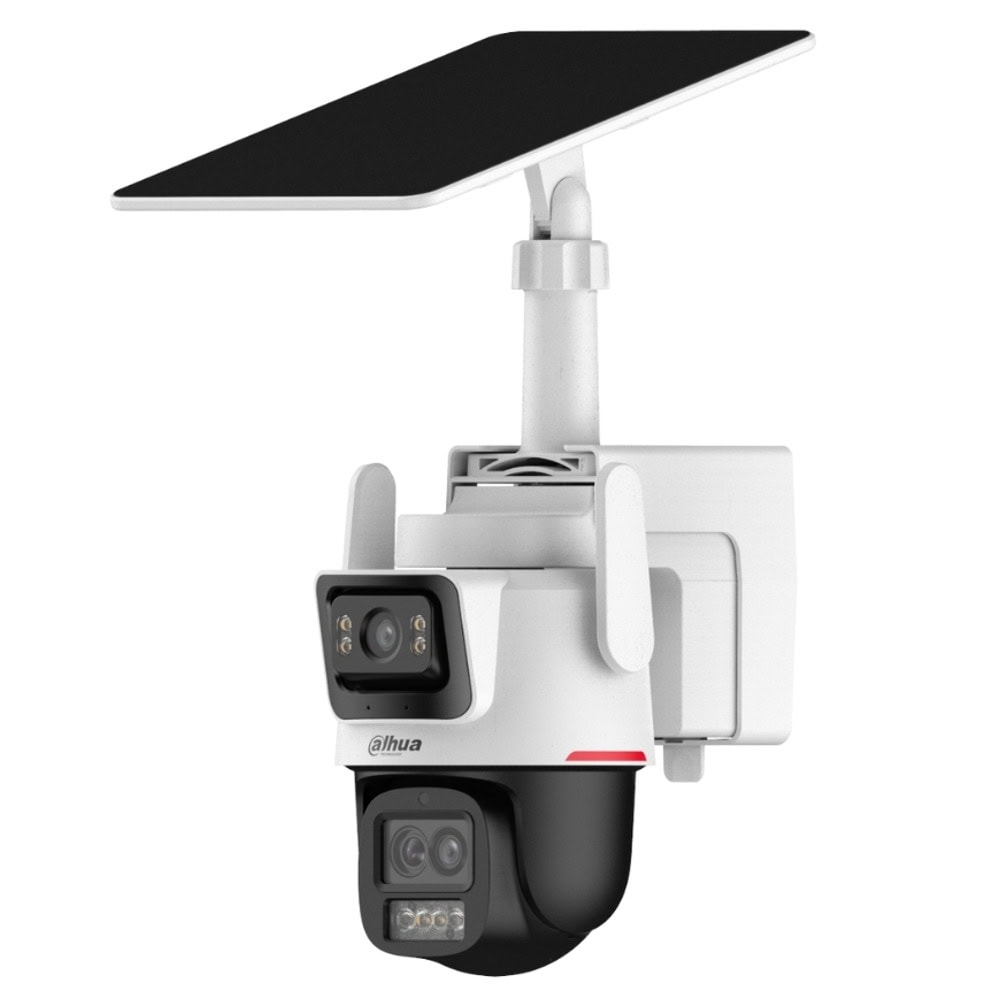

Name: IP камера Dahua IPC-PTS2649C-3E3Z-4GB20, куполна PT (Pan/Tilt) камера, 3+3Mpix(2304x1296@30fps), 2.8/3.6/8.4mm обектив, Smart H.265+, IR осветление (до 50m), външна IP66, microSD слот до 512GB, соларен панел, микрофон и говорител
Brand: Dahua
SKU: SCMDGDAHUAIPCPTS2649C3E3Z4GB20
Price: 422.86 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

IPC-PTS2649C-3E3Z-4GB20

3+3MP WizColor Hybrid-zoom PT 4G Solar Power Network Camera

> Displays videos in two channels at the same time

> 1/2.8" 3Megapixel CMOS

> WizColor technology

> 6x hybrid zoom

> Two-way talk

> SMD3.0

> Siren and Light Active Deterrence

> Auto Tracking Lite

> Supports AOV mode

> 4G Connection

> Built-in 65Wh high-capacity ternary lithium battery

> Supports Type-C power supply

> Supports manual adjustment of fixed lens (Vertical: -7° to 20°)

> IP66

Category	Parameter	Specification
Camera	Image Sensor	Fixed Lens: 1/2.8" CMOS; PT Lens: 1/2.8" CMOS
	Pixel	Fixed Lens: 3 MP; PT Lens: 3 MP
	Max. Resolution	2304 (H) × 1296 (V)
	ROM / RAM	256 MB / 256 MB
	Scanning System	Progressive
	Min. Illumination	Fixed Lens: 0.0005 [email protected] (Color, 30 IRE); 0 lux (Illuminator on); PT Lens: same
	Illumination Distance	Fixed: 30 m (98.43 ft); PT: 50 m (164.04 ft)
	Illuminator Control	Manual; Auto; Off
	Illuminator Number	Fixed & PT: 4 (Warm light)
Lens	Focal Length	Fixed: 2.8 mm; PT: 3.6 mm, 8.4 mm
	Max. Aperture	Fixed: F1.0; PT: F1.0 (both 3.6 mm and 8.4 mm)
	Field of View	Fixed: H: 93.5°, V: 51.9°, D: 110.1°; PT: 3.6 mm – H: 81.5°, V: 44.3°, D: 96.3°; 8.4 mm – H: 15.1°, V: 8.4°, D: 17.8°
	Close Focus Distance	Fixed: 1.1 m; PT: 3.6 mm – 1.7 m; 8.4 mm – 6 m
DORI (Detect, Observe, Recognize, Identify)	2.8 mm	40 m / 15.8 m / 8 m / 4 m
	3.6 mm	51.43 m / 20.31 m / 10.29 m / 5.14 m
	8.4 mm	120 m / 47.4 m / 24 m / 12 m
PTZ	Pan/Tilt Range	Fixed: Pan: 0–210°, Tilt: -7° to +20° (manual); PT: Pan: 0–350°, Tilt: 0–90° (electric)
	Manual & Preset Speed	Pan: 40°/s; Tilt: 40°/s
	Preset / Tour	50 / 8 (32 presets/tour)
	Power-off Memory	Yes
Smart Events	Human / Vehicle Detection	Yes / Yes
Intelligence	Smart Tracking	Auto tracking lite, Linkage tracking
	SMD	SMD 3.0
Active Deterrence	Light Warning	White light
	Sound Warning	3 sounds; Volume 1–100; Play times: 1–10
Video	Compression	Smart H.265+
	Streaming	1 stream
	Resolution	3M (2304×1296); 1080p; 720p; 640×360
	Frame Rate	All Resolutions: 15 fps
	Bit Rate Control	VBR
	Bit Rate	54 kbps – 1280 kbps (H.265)
	WDR	DWDR (both lenses)
	White Balance / Gain / Noise Reduction	Auto / Auto / 3D NR
	Motion Detection / Rotation	Yes / 180°
	S/N Ratio	≥55 dB
Audio	Built-in MIC / Speaker	Yes / Yes
Network	Carrier Network	4G
	Frequency Bands (EAU/EUR)	LTE-FDD: B1/3/5/7/8/20/28; LTE-TDD: B38/40/41
	Frequency Bands (LA)	LTE-FDD: B2/3/4/5/7/8/28/66; LTE-TDD: B38/40/41
	Max. Transmission Power	23 dBm ± 2.7 dB (Class 3)
Storage	Local Storage	Micro SD card up to 512 GB
	Software / App	DMSS / Android, iOS
Certification	Compliance	CE: EN 55032/55035/50130-4/61000-3/62368-1/301489
Ports	Audio Input / Output	1 ch (mic) / 1 ch (speaker)
	Alarm Linkage / Events	Light, Audio / Motion, Human, Vehicle Detection
Power	Power Supply	Built-in 65Wh lithium battery + 8W solar panel
	Charging Method	USB Type-C (QC2.0 supported)
	Power Consumption Modes	40 mW (Keep-alive); 170 mW (AOV); 2.4 W (Performance 1); 3.7 W (Performance 2); Max 8.0 W
	Power Adapter	Optional
	Battery Capacity	65 Wh
Environment	Operating Temp (Device)	–20°C to +60°C
	Charging Temp (Battery)	–10°C to +50°C (charging starts at ≥0°C)
	Discharging Temp (Battery)	–20°C to +60°C
	Humidity	≤95%
	Protection	IP66; TVS 2000 V lightning/surge/voltage transient protection
Structure	Dimensions (L × W × H)	223.2 × 130.0 × 215.0 mm (8.79" × 5.12" × 8.46")
	Net / Gross Weight	1.8 kg / 2.5 kg

Виж още Цифрови IP камери Dahua
Виж всички Цифрови IP камери в категорията

Документация

Технически характеристики

Вид:	Куполни камери
Резолюция:	FullHD
Управляема:	PT - Pan/Tilt
Аудио:	Двупосочно
Безжична:	Не
Външен монтаж:	Да
IR Осветление:	Да
Термокамера:	Не
