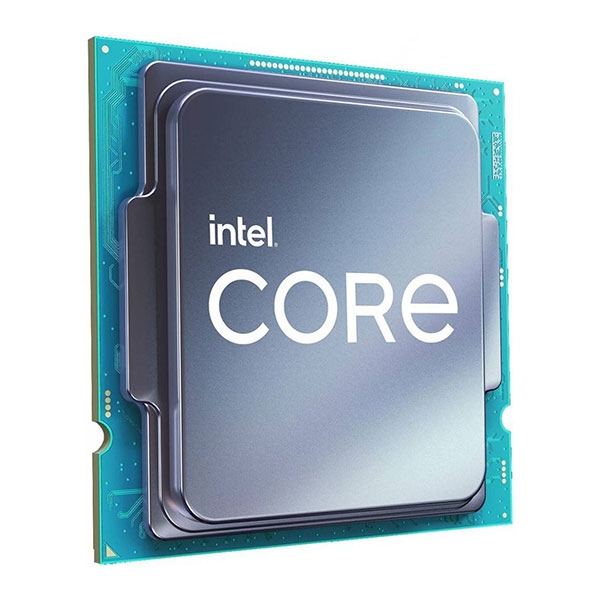

Name: CPU i3-12100F, 4C/8T, 3.3/12M/s1700, Tray
Brand: INTEL
Availability: OutOfStock

{{{

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	Intel Core i3
Model number	i3-12100F
CPU part numbers	CM8071504651013 is an OEM/tray microprocessor
Frequency	3.3 GHz / 3300 MHz
Maximum turbo frequency	4.3 GHz / 4300 MHz
Bus speed	32 GT/s PCI Express interface 16 GT/s Direct Media Interface 16 GT/s PCI Express interface
Clock multiplier	33
Package	1700-land Flip Chip Land Grid Array (FC-LGA) with integrated heatspreader
Socket	Socket 1700
Size	1.77" x 1.48" / 4.5cm x 3.75cm
Introduction date	January 4, 2022
Architecture / Microarchitecture
Instruction set	x86
Microarchitecture	Alder Lake
Processor core	Alder Lake-S
Core stepping	H0
Manufacturing process	0.010 micron "Intel 7" process
Data width	64 bit
The number of CPU cores	4
The number of threads	8
Floating Point Unit	Integrated
Level 1 cache size	4 x 32 KB instruction caches 4 x 48 KB data caches
Level 2 cache size	4 x 1.25 MB caches
Level 3 cache size	12 MB cache
Physical memory	128 GB
Multiprocessing	Uniprocessor
Extensions & Technologies	MMX instructions SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions AVX2 / Advanced Vector Extensions 2.0 BMI / BMI1 + BMI2 / Bit Manipulation instructions Deep Learning Boost F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand Fused Multiply-Add instructions Gaussian Neural Accelerator 3.0 SHA / Secure Hash Algorithm extensions EM64T / Extended Memory 64 technology / Intel 64 HT / Hyper-Threading technology VT-x / Virtualization technology VT-d / Virtualization for directed I/O TBT 2.0 / Turbo Boost technology 2.0
Security Features	NX / XD / Execute disable bit
Low power features	Enhanced SpeedStep technology
Integrated Graphics Processing Unit
None
Integrated peripherals / components
Memory controller	The number of controllers: 2 Memory channels (per controller): 2 Memory channels (total): 4 Supported memory: DDR4-3200, DDR5-4800
Other peripherals	Direct Media Interface 4.0 (8 lanes) PCI Express 5.0 interface (16 lanes) PCI Express 4.0 interface (4 lanes) Image Processing Unit 6.0
Electrical / Thermal parameters
Minimum/Maximum operating temperature	0°C - 68.9°C (case) 100°C (junction)
Thermal Design Power	58 Watt
