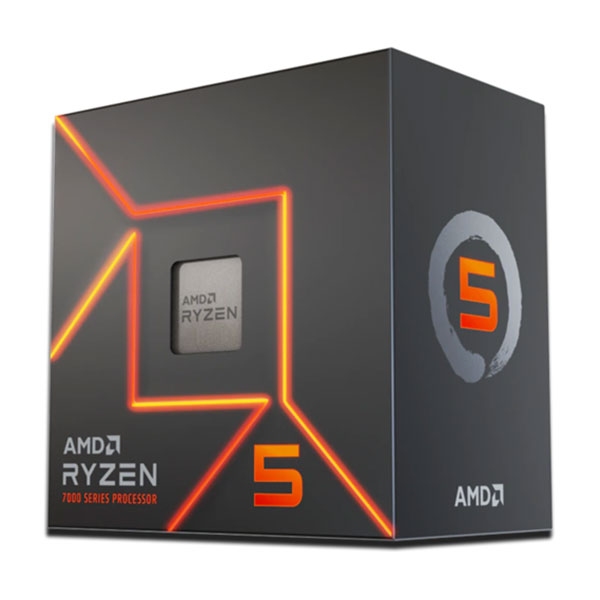

Name: CPU AMD Ryzen 5 7600 6C/12T, 3.8/38MB/AM5, Box
Brand: AMD
Availability: OutOfStock

{{{

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD Ryzen 5
Model number	7600
CPU part numbers	100-100001015BOX is a boxed microprocessor with fan and heatsink
Frequency	3.8 GHz / 3800 MHz
Maximum turbo frequency	5.1 GHz / 5100 MHz
Package	1718-pin lidded Land Grid Array (LGA)
Socket	Socket AM5
Architecture / Microarchitecture
Instruction set	x86
Microarchitecture	Zen 4
Processor core	Raphael
Manufacturing process	TSMC 0.005 micron FinFET process (CPU die) TSMC 0.006 micron FinFET process (I/O die)
Die	71mm2 (CPU die) 122mm2 (I/O die)
Data width	64 bit
The number of CPU cores	6
The number of threads	12
Floating Point Unit	Integrated
Level 1 cache size	6 x 32 KB instruction caches 6 x 32 KB data caches
Level 2 cache size	6 x 1 MB caches
Level 3 cache size	32 MB shared cache
Multiprocessing	Uniprocessor
Extensions & Technologies	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 SSE4a AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions AVX2 / Advanced Vector Extensions 2.0 AVX-512 / Advanced Vector Extensions 512 BMI / BMI1 + BMI2 / Bit Manipulation instructions F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand Fused Multiply-Add instructions SHA / Secure Hash Algorithm extensions AMD64 / AMD 64-bit technology SMT / Simultaneous MultiThreading AMD-V / AMD Virtualization technology Precision Boost 2
Security Features	EVP / Enhanced Virus Protection
Low power features	Pure Power [1]
Integrated peripherals / components
Integrated graphics	GPU Type: Radeon Shader cores: 128 Base frequency (MHz): 400 Maximum frequency (MHz): 2200
Memory controller	Memory channels (total): 2 Supported memory: DDR5-5200 ECC supported: Yes
Other peripherals	PCI Express 5.0 interface
Supported interfaces	USB-C interface USB 3.2 Gen 2 (4 ports) USB 2.0 (1 port)
Electrical / Thermal parameters
Maximum operating temperature	95°C
Thermal Design Power	65 Watt
