Description

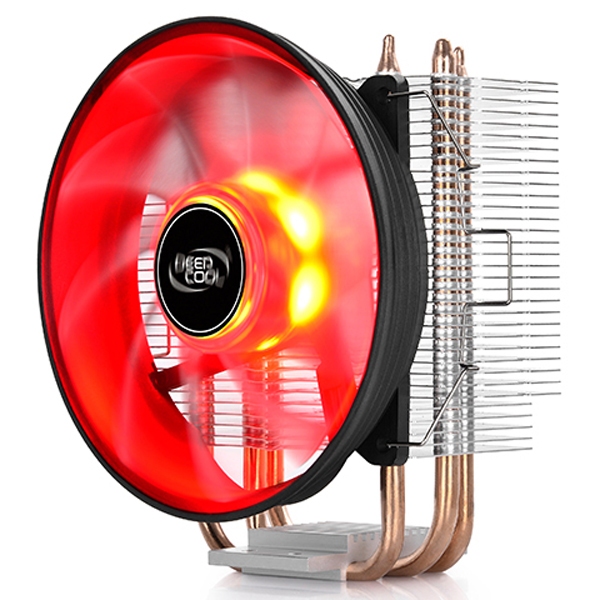

Gammaxx 300 R is equipped with a turbine shaped fan and attachable with second fan. It is one of the most recommended CPU cooler for all mainstream CPU thermal solution.Gammaxx 300 R’s CTT “Core Touch Technology” has enabled its quick heat dissipation performance, ideal option for multipurpose usage both gaming and personal.Semi-transparent fan with red LED, modding looking.

Highly Effective Cooling Performance

3 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.

Ф120x25mm PWM Fan

Ф120x25mm fan with PWM function offers a perfect balance between airflow and noise. Semi-transparent fan with red LED, modding looking.

Universal Socket Compatibility

Equipped with multiple clips to support Intel LGA1366/115X/775 and AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2/K8.

Easy Installation

Easy installation without moving the motherboard.

AMD AM4 Ready.（NOTE: For manuals, please refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2）
Equipped with multiple clips to support Intel LGA1366/115X/775 and AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2/K8.
3 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.
Ф120x25mm fan with PWM function offers a perfect balance between airflow and noise.
Semi-transparent fan with red LED, modding looking.
Easy installation without moving the motherboard.
High cooling performance up to 130W solution.
* Socket LGA2011 Optional.

Application For

LGA1366/LGA1200/1151/1150/1155/LGA775

Core i7 Extreme/i7/i5/i3

Core 2 Extreme/Quad/Duo

Pentium/Pentium G

Celeron/Celeron G

AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
(NOTE: Manuals for AM4, please refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2)

Ryzen

APU A12/A10/A8/A6/A4

FX 8/6/4-Core

Phenom II X6/X4/X3/X2

Athlon II X4/X3/X2

Athlon X4

Technical Spec

Product Dimensions	121X75.5X135.7mm
Hedatsink Dimensions	110X57.2X130.56mm
Net Weight	433g
Heatpipe	Ø6 mm×3 pcs
Fan Dimensions	Φ120X25mm
Fan Speed	900~1600 RPM±10%
Fan Airflow	55.5 CFM
Fan Air Pressure	2.03 mmAq
Fan Noise	≤21 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12VDC
Fan Rated Current	0.12 A
Fan Power Consumption	1.44 W
LED Type	Red LED
EAN	6933412726081
P/N	DP-MCH3-GMX300RD
