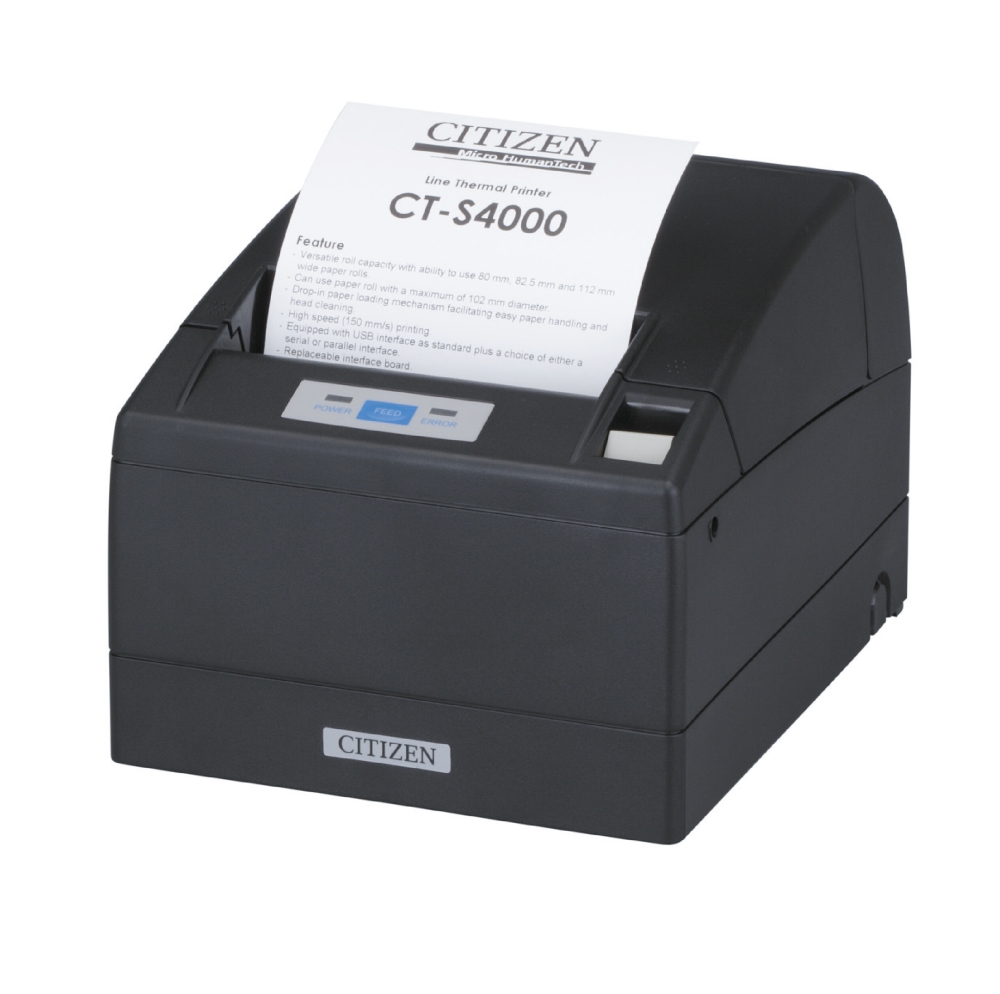

Етикетен принтер Citizen CT-S4000, 203 x 203 dpi, черен

Printing Technology

Direct

 Thermal

Print Speed (maximum)

150 mm /sec.

Print Width (maximum)

104 mm

Media Width (min to max)

80 / 82.5 / 112 mm or 112 mm / Label width 108 (Label version)

Media Thickness (min to max)

65 to 150 μm

Media Length (min to max)

25 mm/label (min.)

Drivers and software

Free-of-charge from website, including support for various platforms

Size (W x D x H) and Weight

177x213x147 mm, 2.1 Kg (AC type) / 1.9 Kgs (DC type)

Emulations (Languages)

ESC/POS™

Barcodes

UPC-A

UPC-E

EAN-13 (JAN-13)

EAN-8(JAN-8),

CODE39

CODE93

CODE128

CODABAR(NW-7)

PDF 417

Media type

Thermal labels + receipt paper

Drawer kick-out

2 Drawers

Power supply

100 – 240V, 50-60 Hz, 150 VA or 24V DC

Reliability

100 Million pulses or 100 Km, 1 million cuts

EMC and safety standards

CE

UL

C-UL

FCC class A

Number of columns

On 80mm paper up to 48 digits (12 x 24 font A)

On 80mm paper up to 64 digits (9 x 17 font B)

On 80mm paper up to 72 digits (8 x 16 font C)

On 82.5mm paper up to 55 digits (12 x 24 font A)

On 82.5mm paper up to 73 digits (9 x 17 font B)

On 82.5mm paper up to 82 digits (8 x 16 font C)

On 112mm paper up to 69 digits (12 x 24 font A)

On 112mm paper up to 92 digits (9 x 17 font B)

On 112mm paper up to 104 digits (8 x 16 font C)

Character table / Code page

Katakana

Thai code18

WPC1252

437

850

852

857

858

860

863

864

865

866

Line spacing

4.23mm (1/6 inch); adjustable by user comand

Input buffer

4K bytes / 45 bytes

Operation environment

+5 to +40°C, 35% - 90% RH, non condensing

Storage environment

-20 to +60°C (10% to 90% RH non condensing)

Resolution

203 dpi

Main Interface

Dual interface USB built-in plus optional interface card slot

Optional interfaces

Serial (RS-232C compliant)

Parallel (IEEE 1284 compliant)
