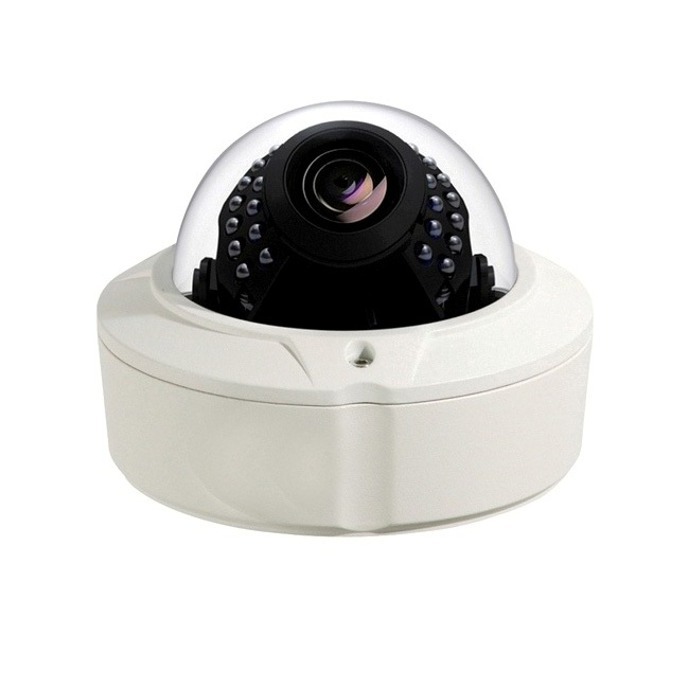

IP камера CIGE DIS-809WVPH, 2MPix, IR прожектор, 2.8-12мм обектив, H.264

Model DIS-809WVPH

System
Embedded RTOS design, Dual-Core 32-bit DSP (TI Da Vinci DM368),
Pure Hard Compression, Watchdog, 128M Flash, 128 M DDR2;

Sensor
5.0Mega Pixel 1/2.5"CMOS Sensor;day and night convert; IR aware,
LDR signal linkage, CS port, DC drive Auto Iris lens; Color:[email protected],
Black:0.08 [email protected]
Video Compression
H.264; Dual stream; AVI;Stream:0.1M~6Mpbs(adjustable);
Frame:1~30fps/sec (adjustable)

Image output
The main stream:1920×1080@30F,1600×1200,1280×1024,
1280×960,1024×768,1280×720;Sud-stream:320×240@30F,
352×192,320×192,288×192,256×192;(optional) 2592×1920@10F,
2048×1536@20F;

Audio Port
1CH Input,level 2Vp-p,Impedance 1kΩ,Support pickups input;
1CH Output, Impedance 16Ω,
30mw output power, Support headphones or amplifier;

Audio Processing
AAC CODEC standard,Support two-way voice intercom;
Support Audio and Video Sync.

Net Port
RJ45 Ethernet Port,10/100M adaptive;,Support RTSP/FTP/PPPOE
/DHCP/DDNS/NTP/UPnP Etc.net protocol.
USB Port 1pcsUSB port,Support Max.64G U disk, support front-end storage;
PTZ Port 1pcs RS422/RS485 port, support PELCO(P) etc variety PTZ lens control protocol;

Alarm Port
1CH switch input, support alarm input and video and backstage linkage,
1CH switch output, support sound and light alarm;

Business Function
Support WEB configure, support real-time video transmission,
support motion detection and IO Alarm linkage front-end storage,
support front-end storage playback/download, support motion
Detection ,IO alarm center to warn and screen pop linkage ;
support unified client remote monitoring Software(UC2),
VM6000 Platform etc system application; offer complete SDK development kit;
IR LED 30pcs
IR Distance 30M
Power DC12V
Consumption Day/Approx.1.8W Night/Approx.3.96W
Dimensions 137mmx115mm
Weight 800g
