Name: Плотер Canon imagePROGRAF PRO-2100, мастиленостуен, 2400 x 1200 dpi, 3GB, 500GB, LAN, USB
Brand: Canon
SKU: PRSPCANON3867C003AA
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

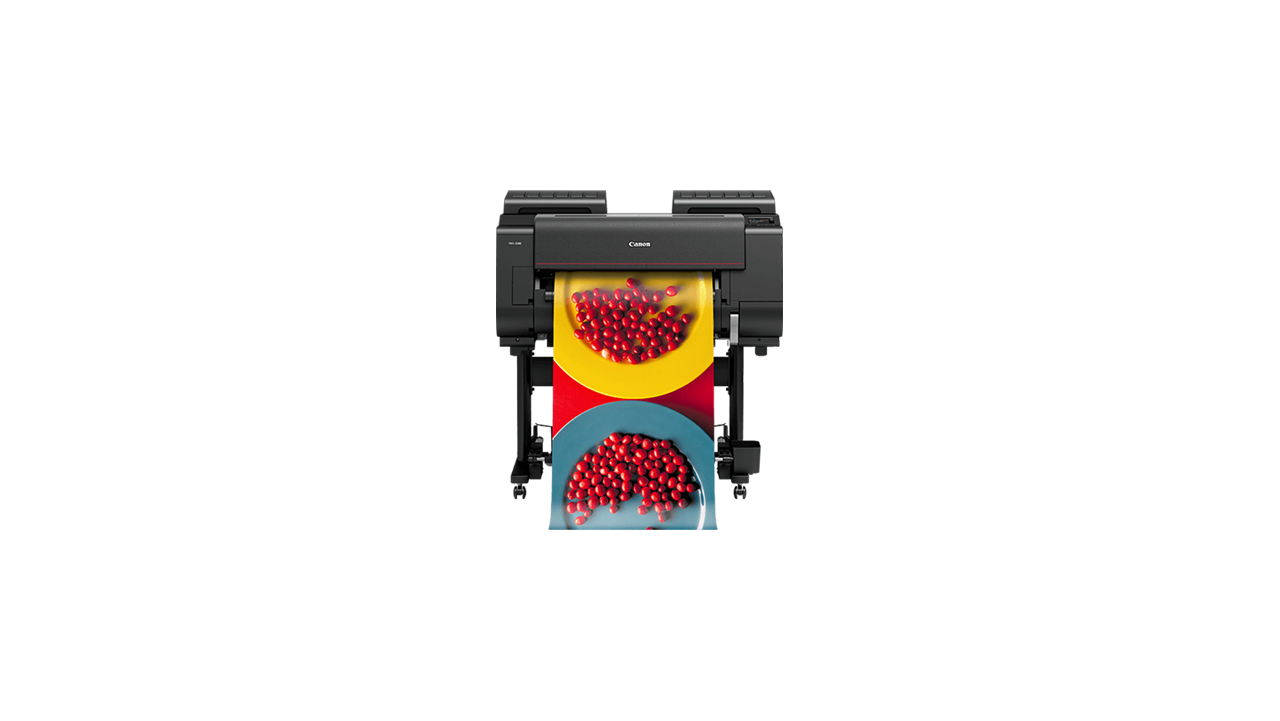

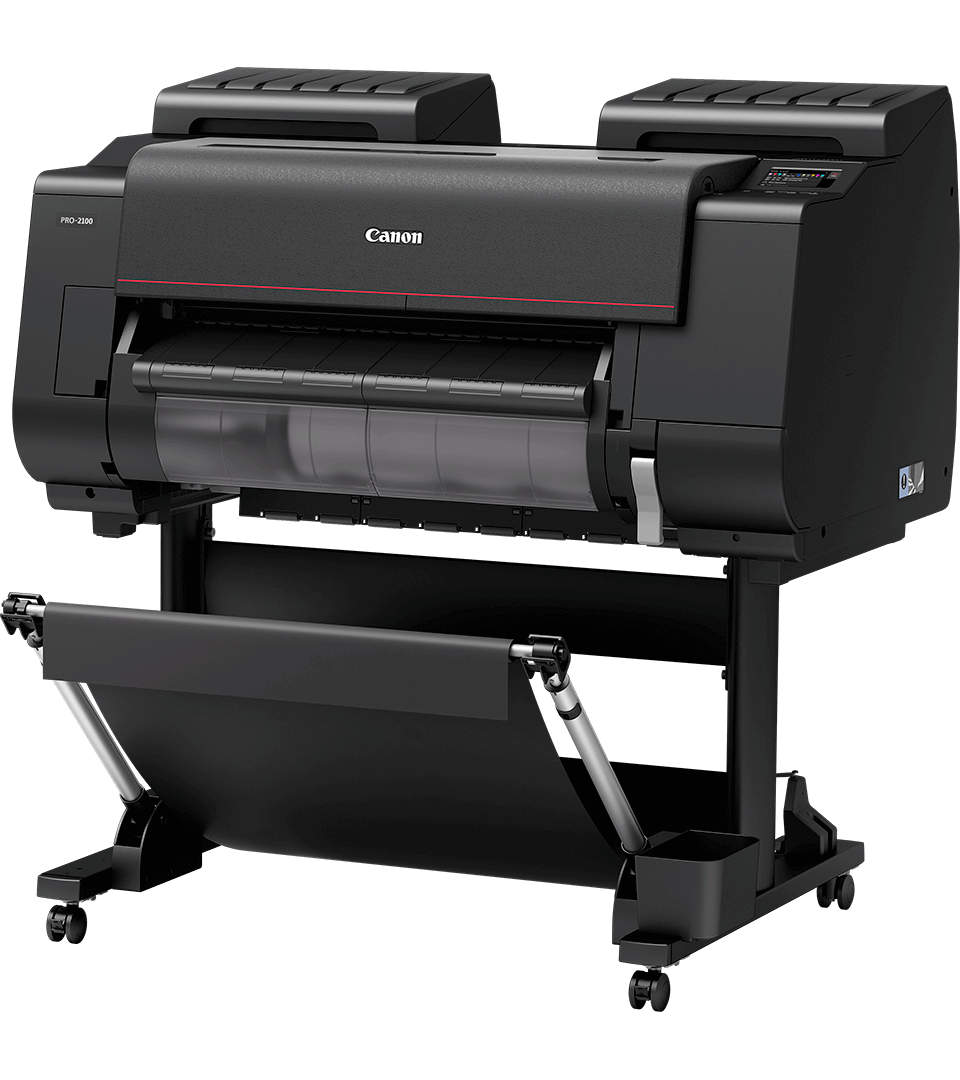

Canon imagePROGRAF PRO-2100

High quality printing with advanced image processing

colour pigment ink

2400 dpi

maximum print resolution

170 mm

maximum media roll diameter

JPG PDF

direct print

Innovative ink technology delivers dynamic colour expression

Canon’s LUCIA PRO pigment ink produces exceptional colour vibrancy and deep blacks, for striking graphic and fine art printing. Data is protected by enhanced user and device security, while automatic media handling boosts print productivity

Passcode printing

Set user print permissions and individual passcodes to restrict access and boost security.

Automated processes

Smart media handling automatically detects the media type and estimates remaining media.

Software solutions

Professional Print enables soft proofing, layout functions and pattern printing, on-screen

Specifications

Technology

Printer Type

12 Colour 24"/610mm

Print Technology

Canon Bubblejet on Demand 12 colours integrated type (12 chips per print head x 1 print head)

Print Resolution

2,400 x 1200 dpi

Number of Nozzles

18,432 nozzles (1536 nozzles x 12 colour)

Line Accuracy

±0.1% or less

User adjustments necessary. Printing environment and media must match those used for the adjustments.

CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only

Nozzle Pitch

600 dpi x 2 includes Non-firing nozzle detection and compensation system

Ink Droplet Size

minimum 4 pl per colour

Ink Capacity

Sales Ink: 160ml/330ml/700ml

Bundled Starter Ink: 160ml

Ink Type

Pigment inks - Black, Matte Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray, Photo Gray, Red, Blue, Chroma Optimiser

OS Compatibility

Microsoft Windows: 32 Bit, Vista, 7,8, 8.1,10

Server 2008, 64 Bit: Vista, 7,8, 8.1,10,

Server 2008/R2, Server 2012/R2, Windows Server 2019

Apple Macintosh: OS X 10.11.6、macOS 10.12～macOS 10.15

Printer Languages

SG Raster (Swift Graphic Raster), PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)

Standard Interfaces

USB A Port: USB Memory Direct Print for JPEG/PDF files

USB B Port: Built-in Hi-Speed USB 2.0

Ethernet: 10/100/1000 base-T

Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

*Please refer to user manual how to activate/deactivate the wireless LAN

Memory

Standard Memory

3 GB

Hard Drive

500GB (Encrypted HDD)

Print Time for A1 Page Size

Media Type

Print Mode: Print Time

Plain Paper

Print Mode Print Time

Fast:

00:58 min

Standard:

01:38 min

Coated Paper

Print Mode Print Time

Standard:

01:38 min

High Quality:

03:11 min

Glossy Photo Paper

Print Mode Print Time

Standard:

03:11 min

High Quality:

05:02 min

Media Handling

Media Feed and Output

Upper Roll Paper: One Roll, Front-loading, Front Output

Lower Roll Paper: One Roll, Front-loading, Front Output

Cut Sheet: Front-loading, Front Output (Manual feed using media locking lever)

Media Width

Roll paper: 152.4 -610mm

Cut sheet: 152.4 - 610mm

Media Thickness

Roll/Cut: 0.07 - 0.8 mm

Minimum Printable Length

203.2 mm

Maximum Printable Length

Roll paper: 18 m (Varies according to the OS and application)

Cut sheet: 2133.6mm

Maximum Media Roll Diameter

170 mm

Media Core Size

Internal diameter of roll core: 2"/3"

Margins Recommended area

Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm

Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm

Margins Printable area

Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm

Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side: 0 mm

Cut sheet: Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Media Feed Capacity

Roll Paper: Two rolls. Automatic switching is possible.

Cut Sheet: 1 sheet

Media Take-up roll unit

Dual direction roll take up unit allowing print surface to be wound inside or outside of the roll

Borderless Printing Width (Roll Only)

515mm(JIS B2), 594mm(ISO A1), 10", 14", 17", 24", 257mm(JIS B4)*, 297mm(ISO A3)*, 329mm(ISO A3+)*, 420mm(ISO A2)*, 6'',8"*, 12'',16"*, 20'', 22'', 30"*, 300mm*, 500mm, 600mm and custom roll width (154.2-610mm)

*Some environmental conditions may not produce the desired result

Maximum number of delivered prints

Standard position: 1 sheet

Flat position: A2 landscape, glossy paper less than 10 sheets, Coated paper less than 20 sheets (excludes strong curled condition)

Dimensions and Weight

Physical Dimensions and Weight

W x D x H

1110 x 984 x 1168 mm (Basket Open)

1110 x 766 x 1168 mm (Basket Closed)

119 kg (including Roll Holder Set and Roll unit, excluding ink and print heads)

Packaged Dimensions and Weight

Printer (Main unit with pallet): 1324 x 902 x 1042 mm
