Плотер Canon imagePROGRAF TX-3100 + Аксесоар Canon Sheet Stacker SS-31, 2400 x 1200 dpi, 2GB, LAN, Wi-Fi, USB

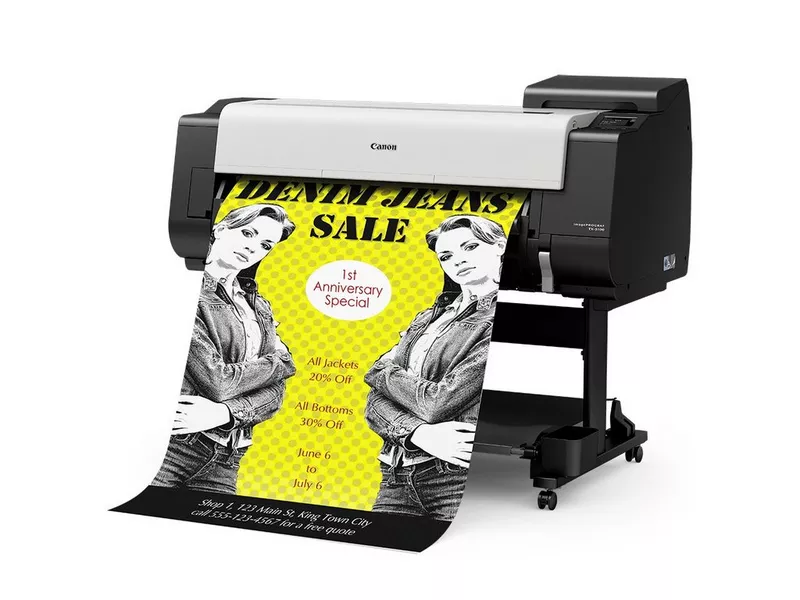

Canon imagePROGRAF TX-3100

A high-speed, 36-inch large format printer with advanced media handling and intuitive usability.

Fast printing

Up to 3.2ppm for A1 CAD drawings by increased print speed and data processing.

Increased productivity

A smart media handling system with simple and easy software solutions supports highly efficient production workflows.

High-volume production

Uninterrupted ink tank replacement, enhanced data processing and a dual roll option maintain impressive print speeds.

Specifications:

TECHNOLOGY
Printer Type 5 Colour 36"
Print Technology Canon Bubblejet on Demand 6 colours integrated type
(6 chips per print head x 1 print head)
Print Resolution 2,400 x 1,200 dpi
Number of Nozzles Total : 15,360 nozzles MBK : 5,120 nozzles BK,
C, M, Y : 2,560 nozzles each
Line Accuracy ±0.1% or less
Nozzle Pitch 1,200 dpi x 2 includes Non-firing nozzle detection and
compensation system
Ink Droplet Size 5 pl per colour
Ink Capacity Bundled Starter Ink: 330ml (MBK)/160ml (BK, C, M, Y)
Sales Ink: 160ml/330ml/700ml
Ink Type Pigment inks : 5 colour MBK/BK/C/M/Y
OS Compatability Microsoft Windows 32 Bit: 7, 8.1, 10
64 Bit: Windows 7, Windows 8.1, Windows 10,
Windows Server 2008R2, 2012, 2012R2, 2016, 2019
Apple Macintosh: macOS 10.12.6~macOS 10.15
Printer Languages HP-GL/2, HP RTL, PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)
Standard Interfaces USB A Port: USB Memory Direct Print for JPEG/PDF files
USB B Port: Built-in Hi-Speed USB
Ethernet: 10/100/1000 base-T
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
*Please refer to user manual how to activate/deactivate the wireless LAN
MEMORY
Standard memory 128GB (Physical memory 2GB)
Hard Drive 500GB (Encrypted)
PRINTING SPEED
CAD Drawing:
Plain Paper (A1) 0:18 (Fast Economy Mode), 3.2ppm
Plain Paper (A0) 0:34 (Fast Economy Mode)
0:37 (Fast)
1:04 (Standard)
Poster:
Plain Paper (A0) 0:37 (Fast Economy Mode)
0:42 (Fast)
1:15 (Standard)
Heavy coated Paper (A0) 1:38 (Fast)
2:33 (Standard)
MEDIA HANDLING
Media Feed and Output Roll Paper : One Roll, Front-loading, Front Output
Cut Sheet : Front-loading, Front Output
(Manual feed using media locking lever)
Media Width Roll paper : 152.4mm - 917mm
Cut sheet 152.4mm - 917mm
Media Thickness Roll/Cut : 0.07mm - 0.8mm
Minimum Printable Length Roll paper : 101.6mm
(Excluding Cloth, Canvas, Tracing Paper and Translucent
Matte Film media. These media are 200mm.)
Cut sheet : 203.2 mm
Maximum Printable Length Roll paper : 18 m
(Varies according to the OS and application)
Cut sheet : 1.6 m
Maximum Media Roll
Diameter
170 mm
Media Core Size Internal diameter of roll core: 2"/3"
Margins Recommended area Roll paper: Top: 20 mm, Bottom: 3 mm, Side: 3 mm
Cut sheet: Top: 20 mm, Bottom: 20 mm, Side: 3 mm
Margins Printable area Roll paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless) : Top: 0 mm, Bottom: 0 mm,
Side: 0 mm
Cut sheet : Top: 3 mm, Bottom: 20 mm, Side: 3 mm
Media Feed Capacity Roll Paper: Two rolls. Automatic switching is possible.
Cut Sheet: 1 sheet
Media Take-up roll unit Dual direction roll take up unit allowing print surface to be
wound inside or outside of the roll
Borderless Printing Width
(Roll Only)
[Recommended] 515mm(JIS B2), 594mm(ISO A1),
728mm(JIS B1), 841mm(ISO A0), 10", 14", 17", 24", 36"
[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO
A3+), 420mm(ISO A2), 6", 8", 12", 15", 16", 18", 20", 22",
30", 34", 300mm, 500mm, 600mm, 800mm and custom
roll width (152.4 - 917mm)
* "Printable" size is printed as micro marzin tecnology, that means is not
used with hole of platen.
Maximum number of
delivered prints
[Multi-position basket]
Standard position: 1 sheet
Flat position: A2 landscape, glossy paper 10 sheets, Coated
paper 20 sheets, Plain paper 20 sheets (excludes strong
curled condition)
[Stacker]
Basket position : 1 sheet (excludes curled condition)
Folding position : A0/A1 portrait, CAD drawing, Plain paper
20 sheets, Uncoated paper 100 sheets (excludes curled
condition)
Stacking position : A1/A2 landscape, CAD drawing, Plain
paper 100 sheets, Uncoated paper 100 sheets (excludes
curled condition)
DIMENSIONS AND WEIGHT
Physical Dimensions WxDxH
(mm) and Weight (Kg)
1390 x 984 x 1168 mm (Basket Open)
1390 x 766 x 1168 mm (Basket Closed)
105 kg (including Roll Holder Set and Roll unit, excluding
ink and print heads)
Packaged Dimensions
WxDxH (mm) and Weight
(Kg)
Printer (Main unit with pallet): 1606 x 903 x 1061 mm
149 kg
Roll Unit: 1524 x 562 x 461 mm
26 kg
POWER AND OPERATING REQUIREMENTS
Power Supply AC 100-240V (50-60Hz)
Power Consumption Operation: 115 W or less
Sleep mode: 2.1 W or less
Default setting for the time to enter the Sleep mode:
Approx. 5 Minutes
Power off: 0.3 W or less
Operating Environment Temperature: 15~30oC, Humidity: 10~80% RH
(no dew condensation)
Accoustic Noise
(Power/Pressure)
Operation: 51 dB (A) (Plain paper, Standard mode, Line
Drawing/Text mode) (Measured on ISO 7779 standard)
Standby: 35 dB (A) or less
Operation: 6.9 Bels or less (Plain paper, Standard mode,
Line Drawing/Text mode) (Measured on ISO 7779
standard)
Regulations Europe: CE mark,
Other Countries : CB certfication
Enviroment Certificates TUV, CB

JAR Computers може да предложи консумативи за "Специализирани Принтери".
